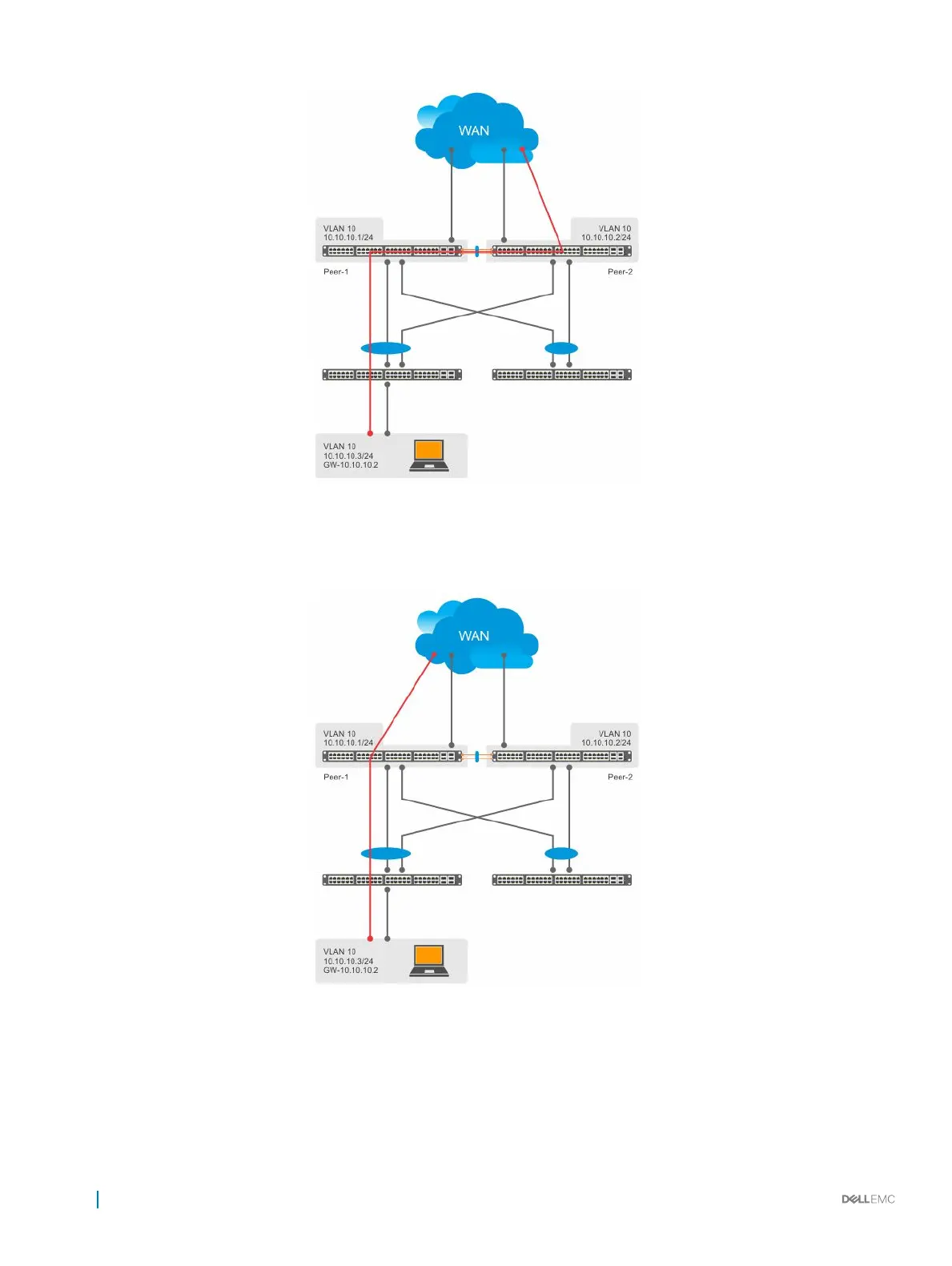

Figure 141. Packets without peer routing enabled

If you enable peer routing, a VLT node acts as a proxy gateway for its connected VLT peer as shown in the image below. Even though the

gateway address of the packet is dierent, Peer-1 routes the packet to its destination on behalf of Peer-2 to avoid sub-optimal routing.

Figure 142. Packets with peer routing enabled

Benets of Peer Routing

•

• Avoids sub-optimal routing

• Reduces latency by avoiding another hop in the trac path.

992

Virtual Link Trunking (VLT)
