POWER SUPPLY(At lease 5A)

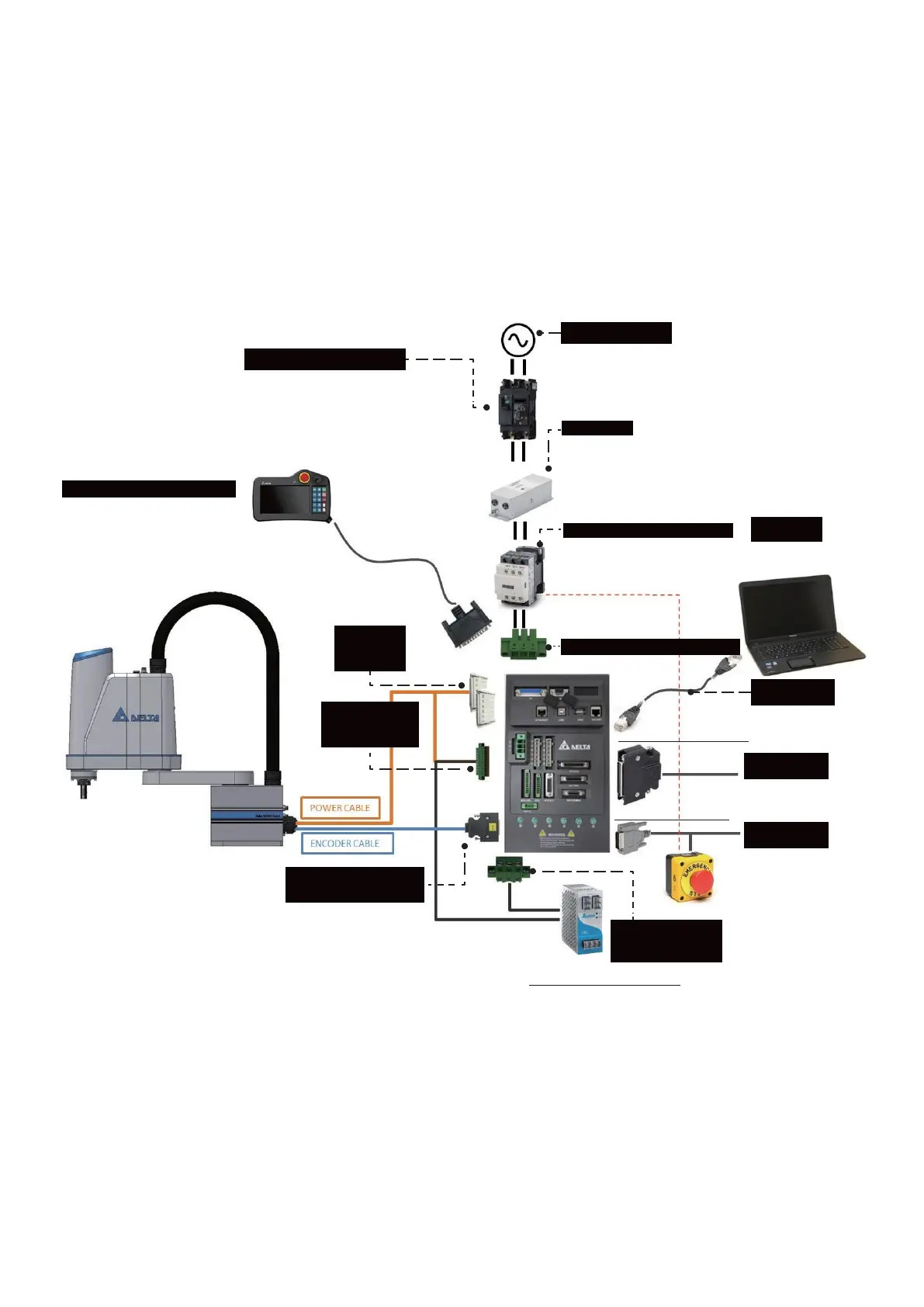

Figure 2-1 Peripheral Device Wiring Diagram
Set to prevent damages to the driver
due to excessive instant current
generated when powering on/off or
short-circuit.
750W Single-phase /
Three-phase 200-230V
Filter
Reduce the electromagnetic interference
transmitted through the power cable
between the device and power.
Teach Pendant (Optional)
Teach pendant can be
purchased to operate SCARA
Magnetic Control (MC)
Connected to the emergency
stop. when the user presses
the emergency stop button,
the MC will be triggered and
cut the power of driver.
DROE software shall
be installed
POWER BUS connector
Shielding recommended
3M MDR Connector 50PIN
DI 24 sets
DO 12 sets
D-sub connector 26PIN
DI 8sets
DO 8sets
Computer
POWER
connector
Motor brake
connector
Standard I/O
System I/O
CONTROL BUS
connector
Power Supply
No-fuse breaker (NFB)
RJ45 cable
ENCODER connector
