SCARA ROBOT DCS ELECTRIC CONTROL INSTRUCTIONS
RUN/STOP SWITCH signal
The operating mode selection is planned via 2 input points under the AUTO MODE, as shown in the
figure.

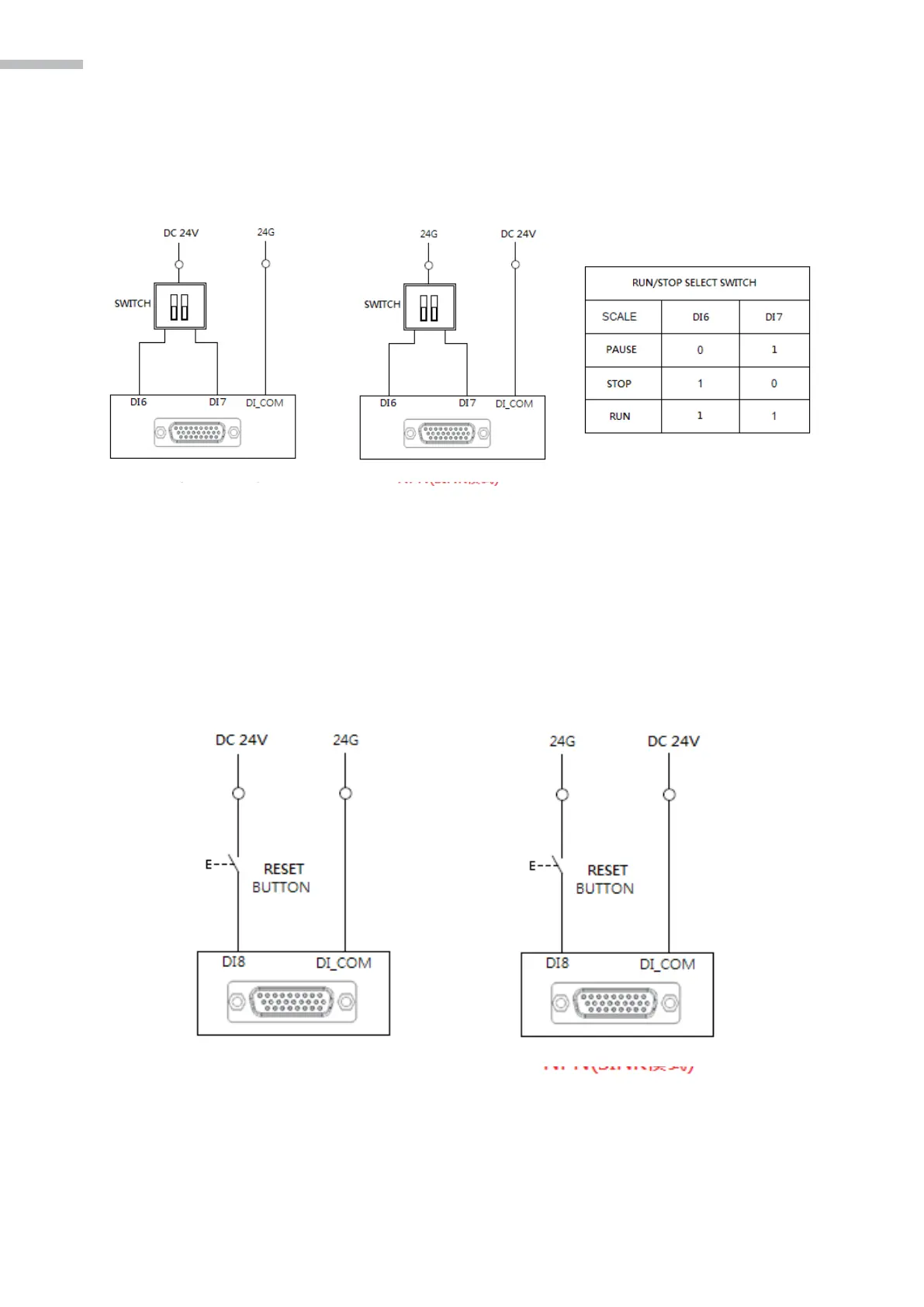

Figure 3-22 RUN/STOP SWITCH Wiring Example
Reset signal
It is an input of Reset signal, which can reset alarm and abnormal states by means of external button,
as shown in the figure.
Figure 3-23 Reset Wiring Example
