3. EXTERIOR LOOK OF DCS CONTROLLER AND DESCRIPTIONS OF CONNECTORS
2. Air tube description
Sequence for configuring SCARA body air tube containing 1 *ϕ6, 2* ϕ4 is as follows:

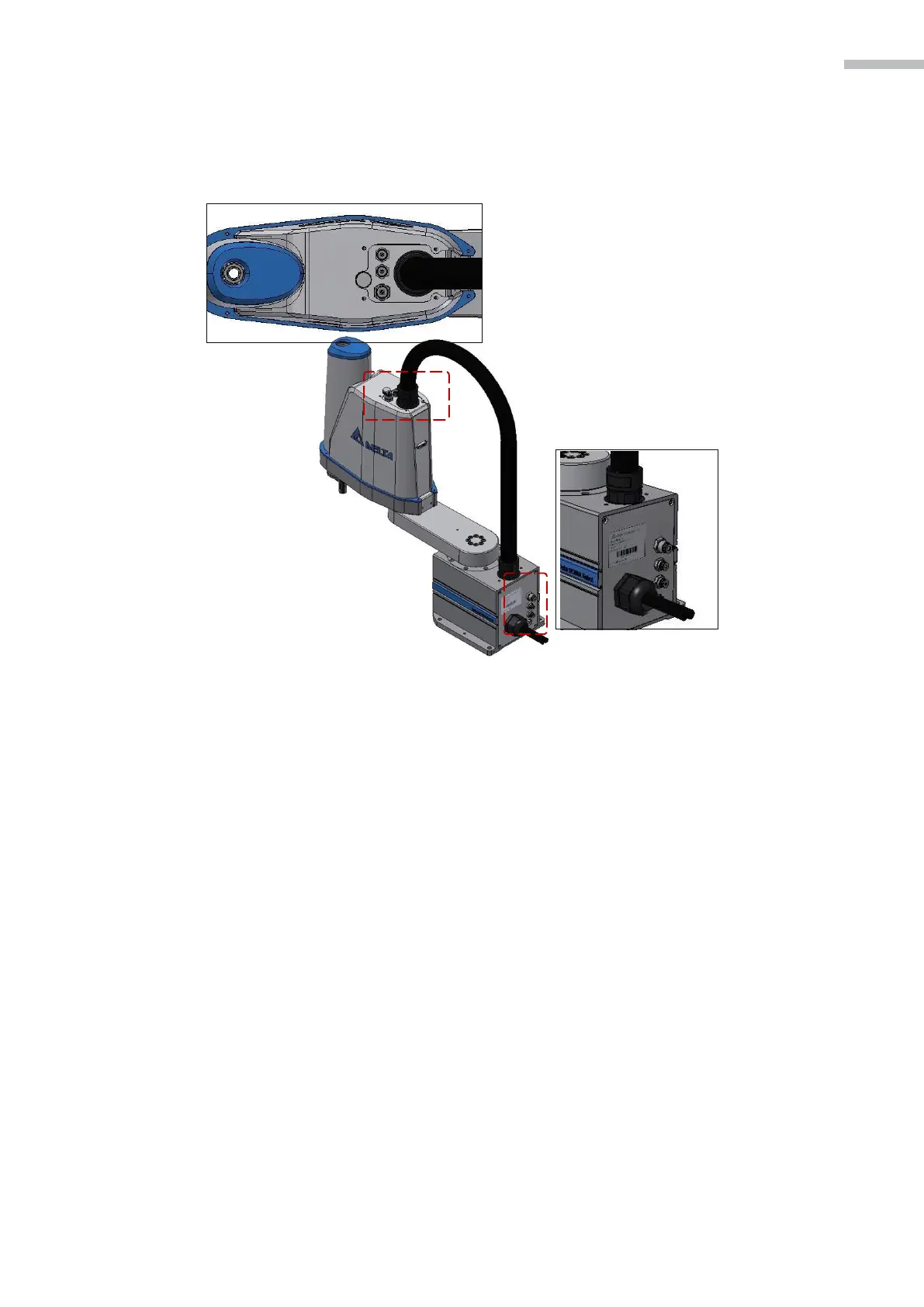

Figure 3-36 SCARA Air Tube Configuration
1
2
3
3
2
1
