Delta DCS

23

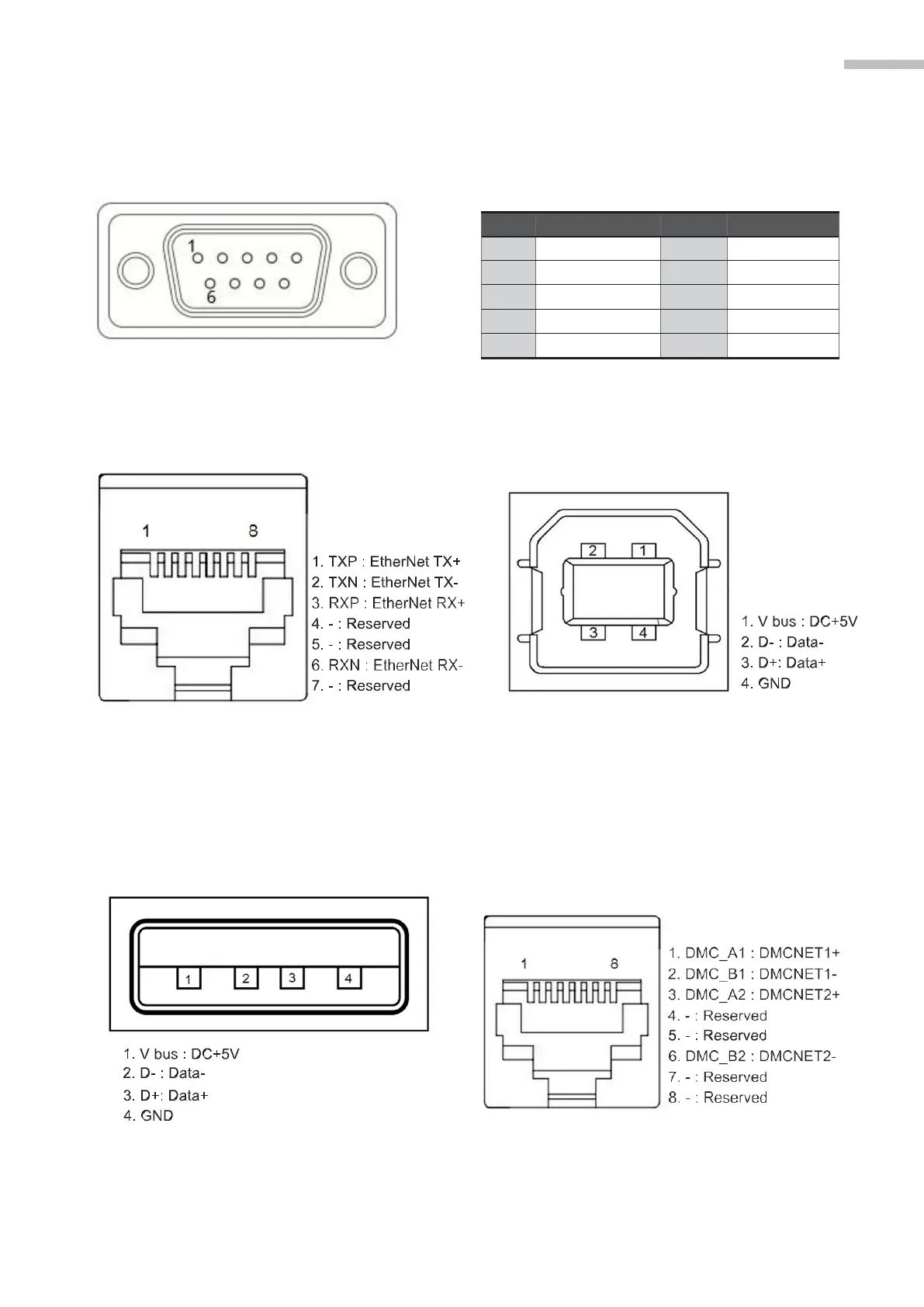

3. EXTERIOR LOOK OF DCS CONTROLLER AND DESCRIPTIONS OF CONNECTORS
2. RS232RS485 connector
The connector is used for communication bus (serial communication).
Figure 3-25 Configurations of RS232/RS485 Pins
Table 3-10 Definitions of RS232/RS485 pins
3. ETHERNET connector
The connector is used for network communication.
4. USB B-type connectors
The connectors are used for communication ca-
bles (USB 2.0 communication).
Figure 3-26 Ethernet Port
Figure 3-27 USB B-type port5.
5. USB A-type connectors
The connectors are used for communication cables
(USB 1.1 communication).
Figure 3-28 USB port
6. DMCNET connectors
The connectors are used for the communication
bus (serial communication).
Figure 3-29 DMCNet port
PIN
NAME
PIN
NAME
1
RS485+
6
RS485-
2
RS232_RX
7
X
3
RS232_TX
8
X
4
X
9
X
5
GND
