• Retransmission: The retransmission output is a signal that is proportional to
the process temperature, setpoint or control power:
o 0-5V
o 0-10V
o 2-10V
o 020 ma
o 4-20 ma
o 0-10VDC Power Supply
The signal can be an input to other devices such as a chart recorder.
• Relays: The five SPST dry contact relay outputs can be configured to function
as alarms, events, or end of cycle. These outputs can be utilized in Manual,
Timer or Profile Modes.
4.4. Remote Communication
When used with a PC running Protocol Manager™ software, the Protocol 3
controller allows an operator to remotely control the oven, download recipes and
log data.

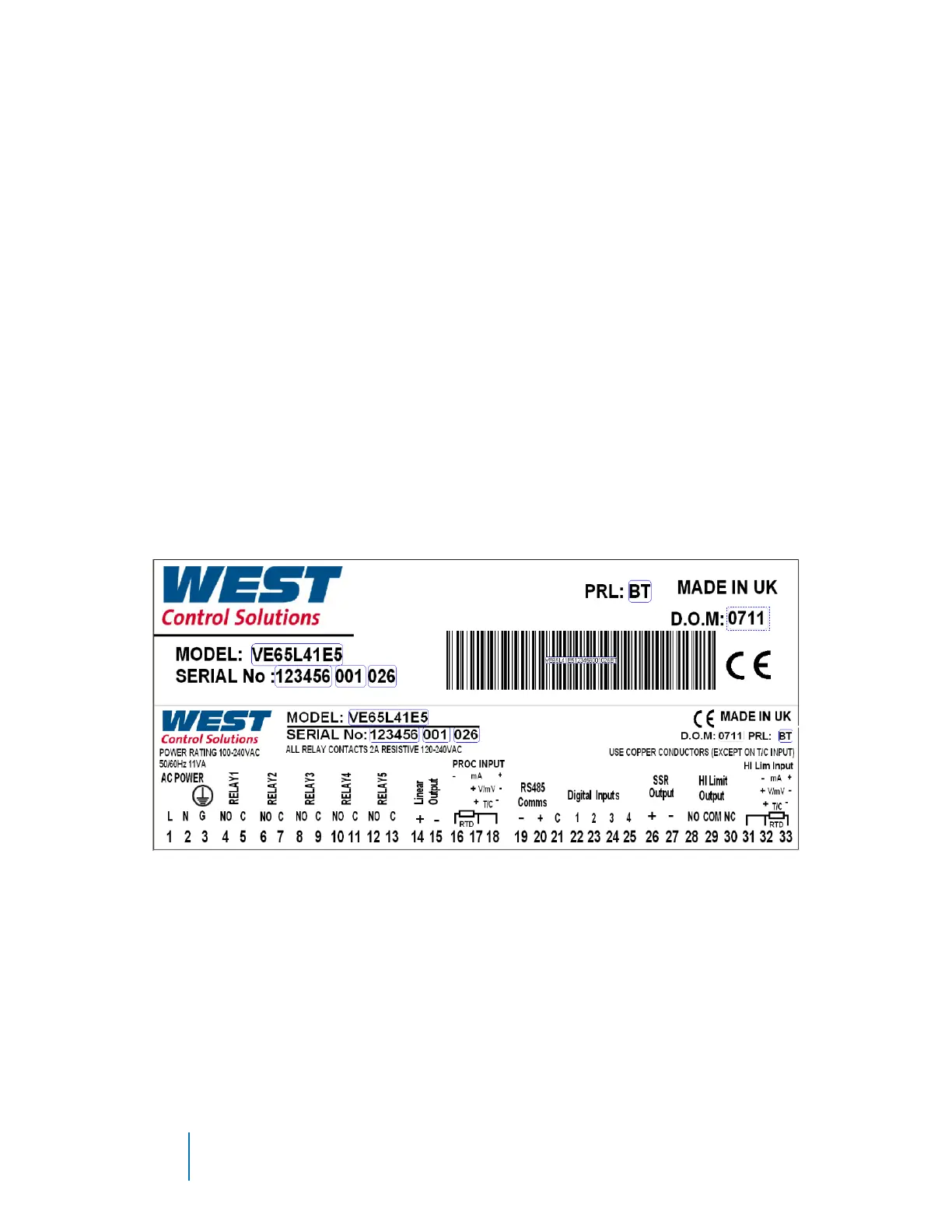

Figure 2. Typical Controller Output Sticker.
