6.3. Setting up a Profile
Regularly backup critical system data according to your company
policies. Be sure to back up configuration and profiles to a
removable memory device. Refer to Section 6.5.1 for more
information.
Use Profile Setup to create, edit and delete profiles (Figure 17). Access the Profile
Setup from the Main Menu screen. The Profiler option allows storage of up to 255
profile segments, shared between a maximum of 64 Profiles. Each profile controls
the value of the setpoint over time; increasing, decreasing or holding its value as
required. See Table 11 for Profile Setup options. Figure 18 and Table 12 show the
Protocol 3 Controller configuration options. Table 13 shows the full list of Profile
Parameter options.
Find General Configuration Parameters in Section 6.6. Find Profile
Setup in Section 6.3
Note that other options are not visible until a profile is created.

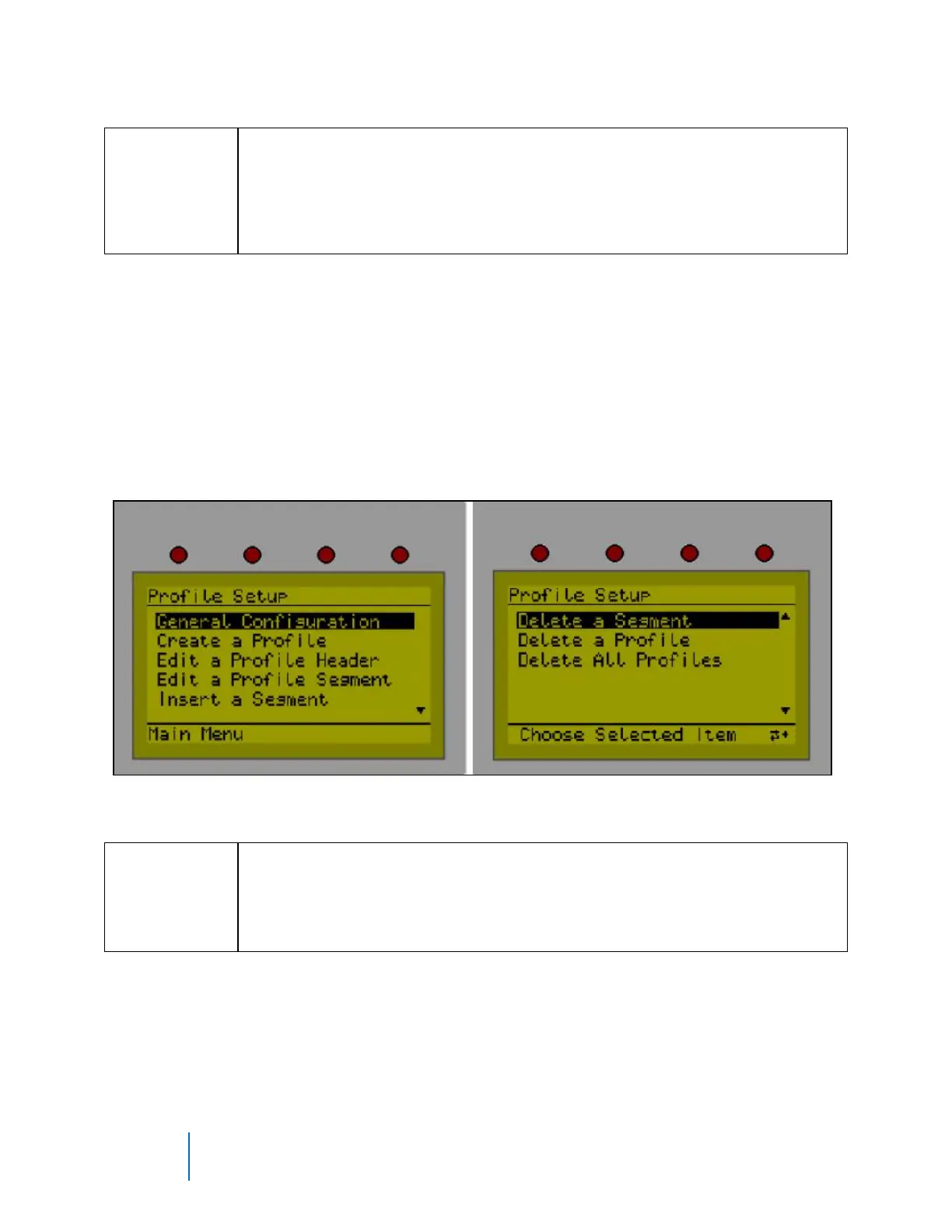

Figure 17. Profile Setup.
