When programming an oven with a gas-fired heater, note that
the burner can be started manually or by programming a profile
using the Protocol 3 controller.
6.3.2. Sample Profile
Figure 19 shows a graphic representation of the sample profile, while Figure 20
shows the parameters entered to achieve that profile. Section 6.3.3 shows how to
enter the profile.

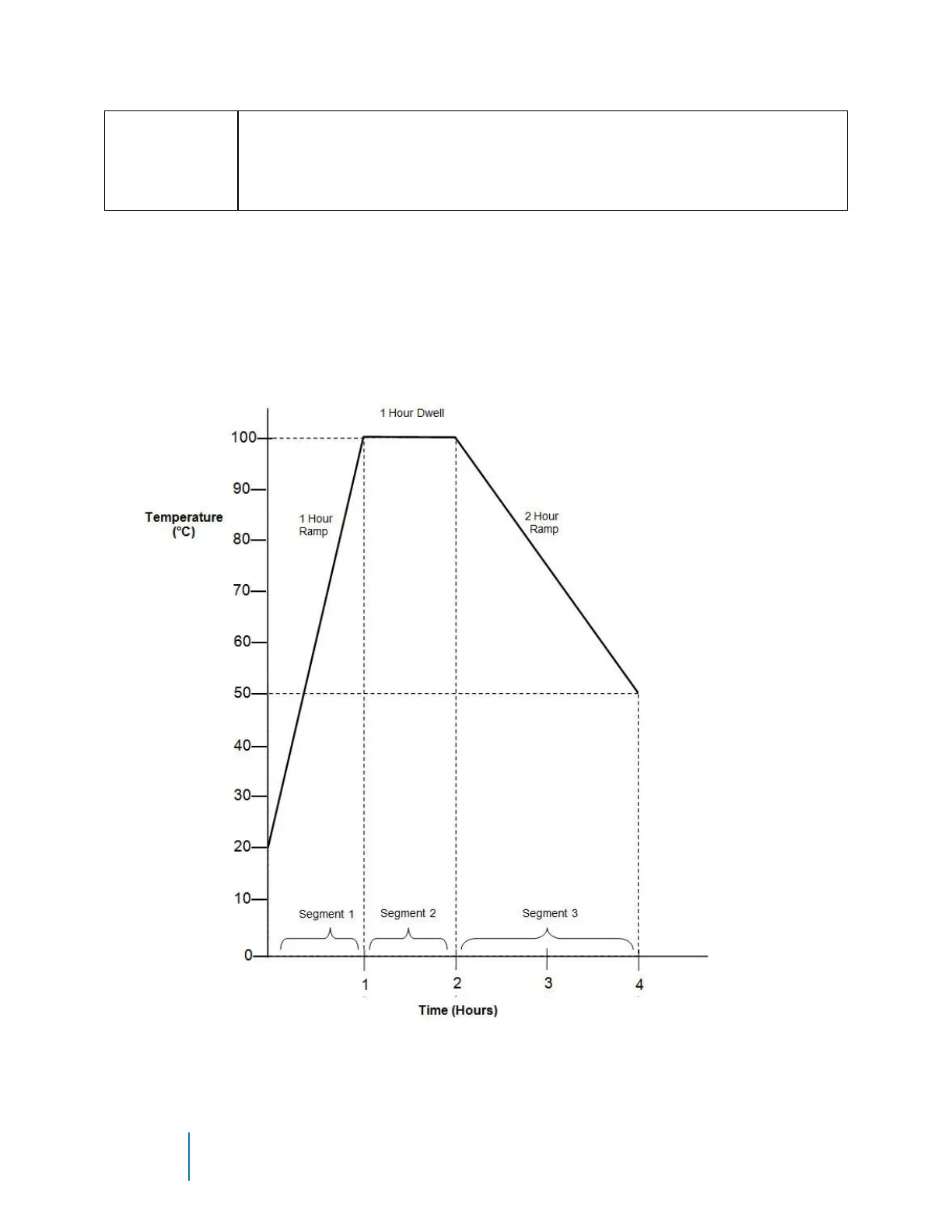

Figure 19. Sample Profile.
