E105, 313327, REV A Protocol 3
TM
User Guide
©2021 ITW EAE. All rights reserved. Despatch is a registered trademark in the U.S. and other
countries. No part of the contents of this manual may be reproduced, copied or transmitted in any form
or by any means without the written permission from ITW EAE, unless for purchaser's personal use.
6.11. Setting Up Digital Inputs
The Protocol 3 controller can be run by external inputs wired to the controller
from an external source such as a PLC or switches on a control panel (Figure 29
displays standard digital input wiring).
Enable Digital Inputs through the Profile Menu, then General Configuration and
set Remote Profile Control to Enable.
While the Remote Profile Control is enabled, profiles can be run
only by digital inputs (versus running profiles from the Profile
Mode).
The external run operation can Run, Hold or Stop profiles indexed in positions 1-7
in the memory of the control. Table 21 shows the profile selection.

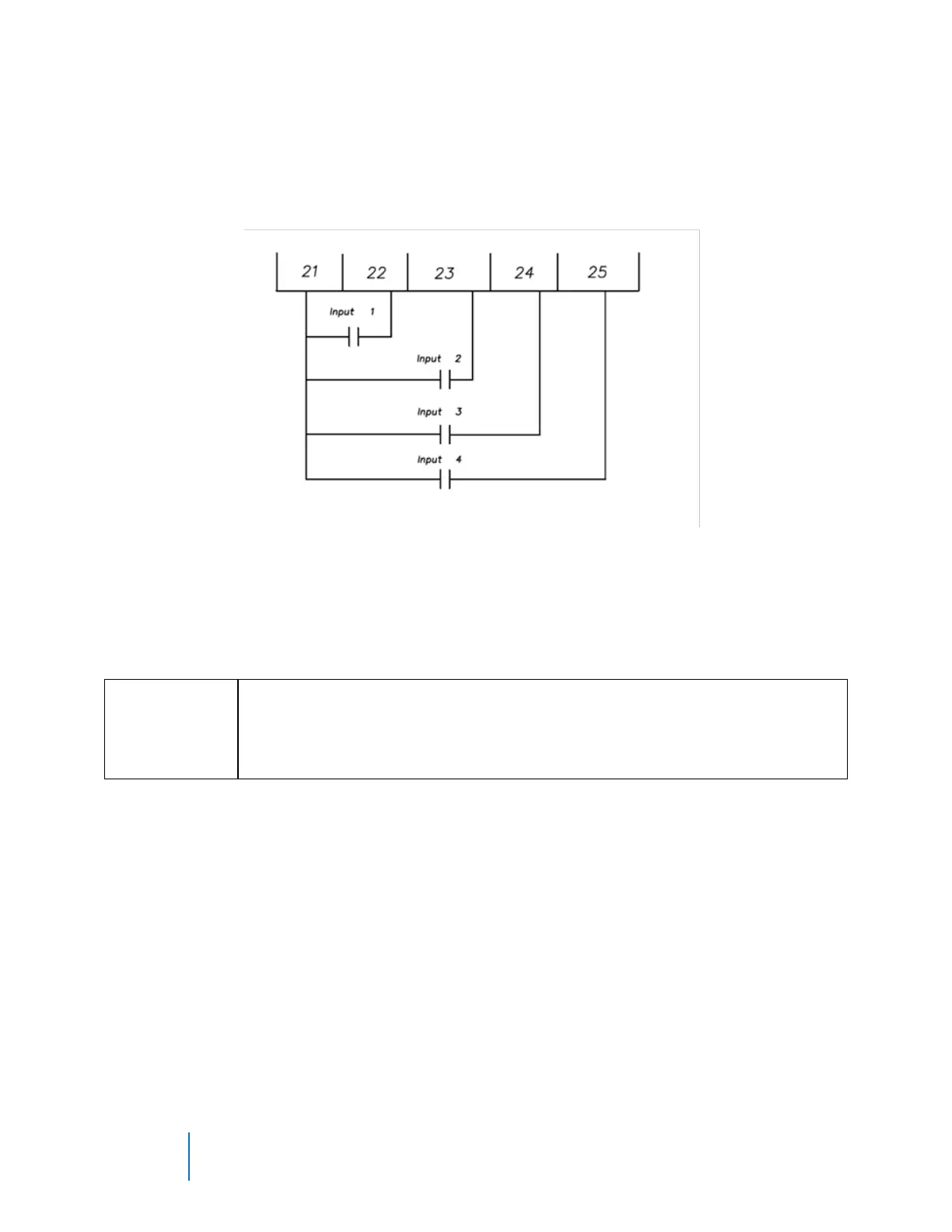

Figure 29. Standard Digital Input Wiring.
