E105, 313327, REV A Protocol 3
TM
User Guide
©2021 ITW EAE. All rights reserved. Despatch is a registered trademark in the U.S. and other
countries. No part of the contents of this manual may be reproduced, copied or transmitted in any form
or by any means without the written permission from ITW EAE, unless for purchaser's personal use.

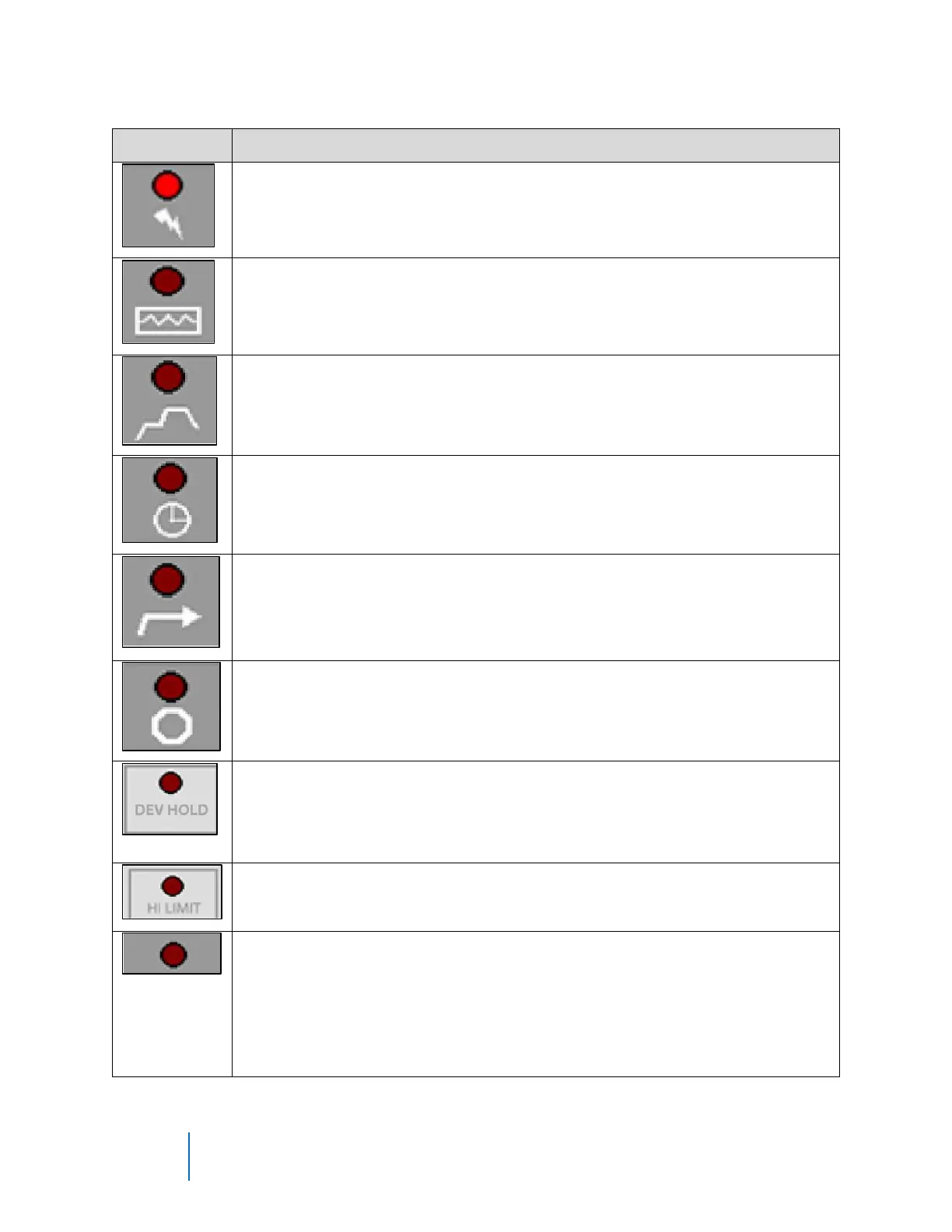

Table 9. LEDs and Functions.
Power LED: When lit, indicates power to the device.
Heater LED: When lit, indicates primary heating output is active.
Profile LED: When lit, indicates a profile is currently running.
Timer LED: When lit, indicates a timer is currently running.
Manual LED: When lit, indicates the controller is in Manual Mode.
Cycle Complete LED: When lit, indicates the controller is currently stopped.
When lit during a Profile or Timer Mode, indicates process value has deviated
from the soak value indicated by the controller. Set Soak Deviation value in
the Profile Configuration mode or in the Timer Mode from the Main Menu.
See Troubleshooting, Section 8, for more information.
When lit indicates the controller has exceeded the High Limit Value. Set High
Limit Alarm Value and Hysteresis in the Alarm Configuration menu.
(Four LEDs
located
above LCD
display)
When lit, indicates relays 1-4 are active. Relay can be assigned as an Event,
Alarm or Cycle.
