DS-320SA
Instruction Manual - 12 -
www.doallsaws.com

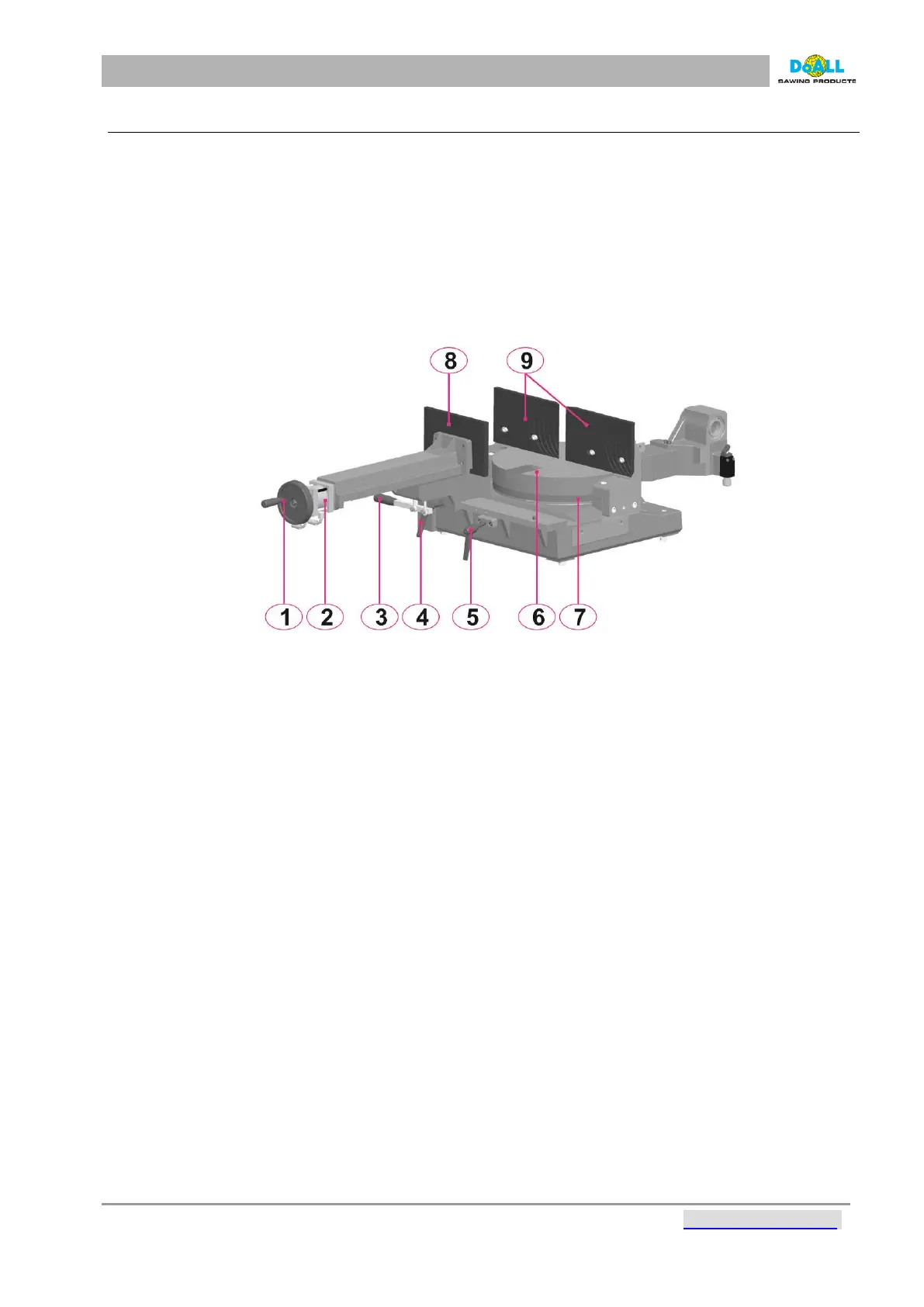

4.1 VICE
1. Crank for manual operation of the moveable jaw
2. Short step hydraulic cylinder of the vice
3. Locking lever for a quick setting of the jaw,
pressed lever control the spring and release
the trapese
seminut, it is possible to move
with the jaw according to your needs
4. Locking lever for the vice position (right/left). When changing the position of the vice it is necessary to
loose it
5. Locking lever for turntable rotation, after loosing it it is possible to turn the arm.
6. Turn table
7. Angle scale
8. Movable jaw of the vice – it increases the diameter of the material to be cut
9. Firm jaws of the vice
pic: 4-2
