DS-320SA
Instruction Manual - 8 -
www.doallsaws.com

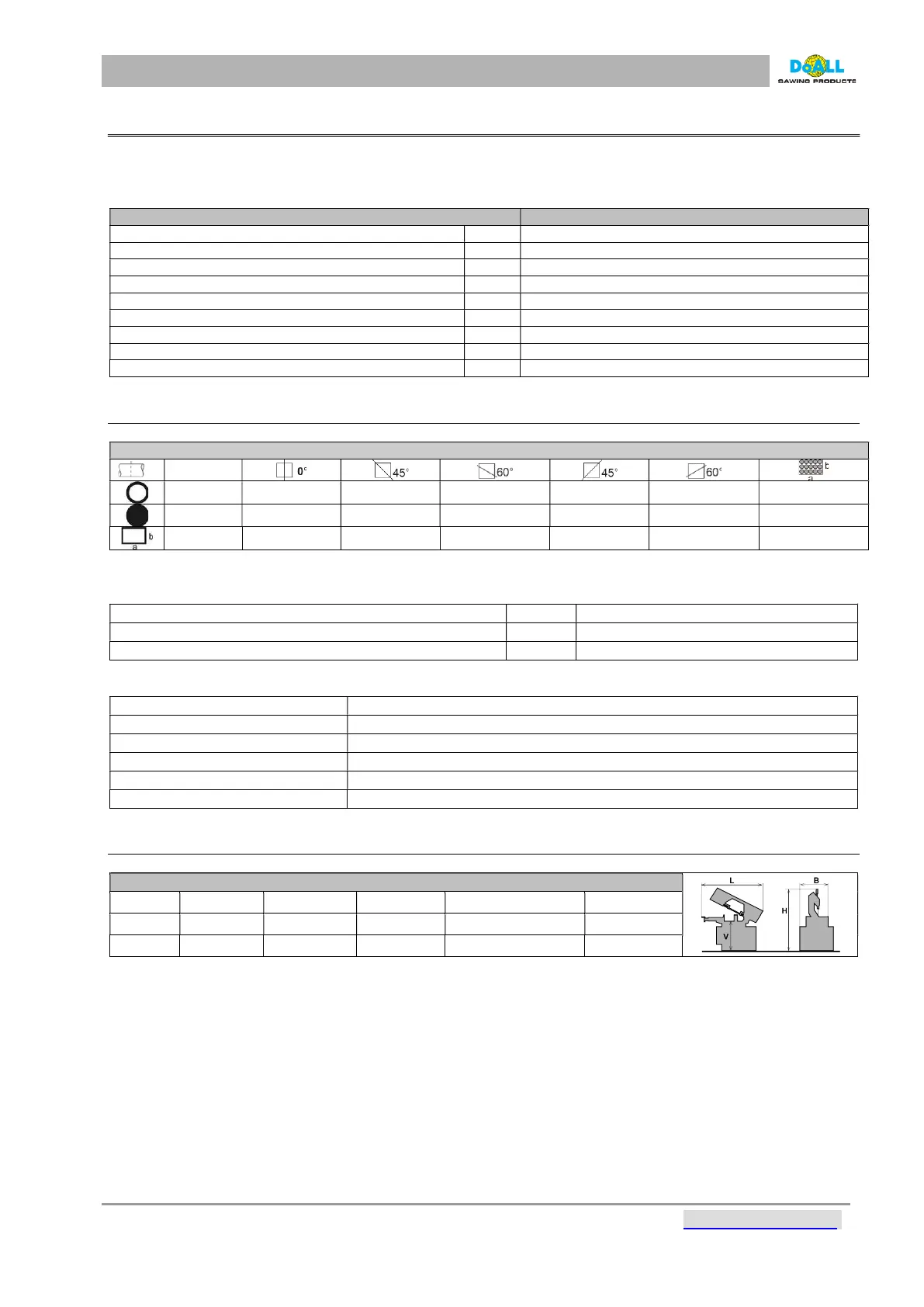

3. TECHNICAL DATA
To achieve the right function of the machine and the safety of the operator following data can not be
changed in any case:
Protection by cover IP44
drive of the blade Hp 3,5
drive of the hydraulic agregate Hp 0,74
pump of the cooling emulsion Hp 0,17
cooling Hp 0,04
distributor Hp 0,34
total input Hp 6,84
cutting speed fpm 115 - 230
diameter of the blade in 238-1/2
electric connection
3x230V, 60 Hz, TN-C
tab: 3-1
3.1 CUTTING PARAMETERS
D [in] 11,8 11,8 7,9 10,6 X
X
D [in] 7,08* 4,3* 3,2* 4,3* X
X
axb [in] 12,6x11,8 11,4x11,8 7,5x7,5 10,6x7,9 X 12,6x6,3
tab: 3-2
*recommended values
the shortest cutting in 0,11
the smallest divisible diameter in 0,2
the shortest rest during one cut in 1,2
tab: 3-3
feed of the Frame to the cut hydraulically
feed of the material manually
clamping of material hydraulically
bend tension manually
cleaning of the blade cleaning brush driven by a pulley
cooling Cooling system for emulsion with liguid distribution to blade guides.
tab: 3-4
3.2 DIMENSIONS FOR TRANSPORT
length width Height max height min
height of the table weight
[L] [B] [Hmax] [Hmin] [V] (lb)
80,7 46 80,3 56 31,5 1430
tab: 3-5
* high measurements do not count with the interlay materials that are neccesary for transport.
