9.7 ANGLE SETTING
The machine is designed to make linear cuts (vertical cuts) and miter cuts (angle cuts 45° left and 60°
right). General angles are adjusted by the nonius. It is possible to equip the machine by digital indication of
the angle for a wish.

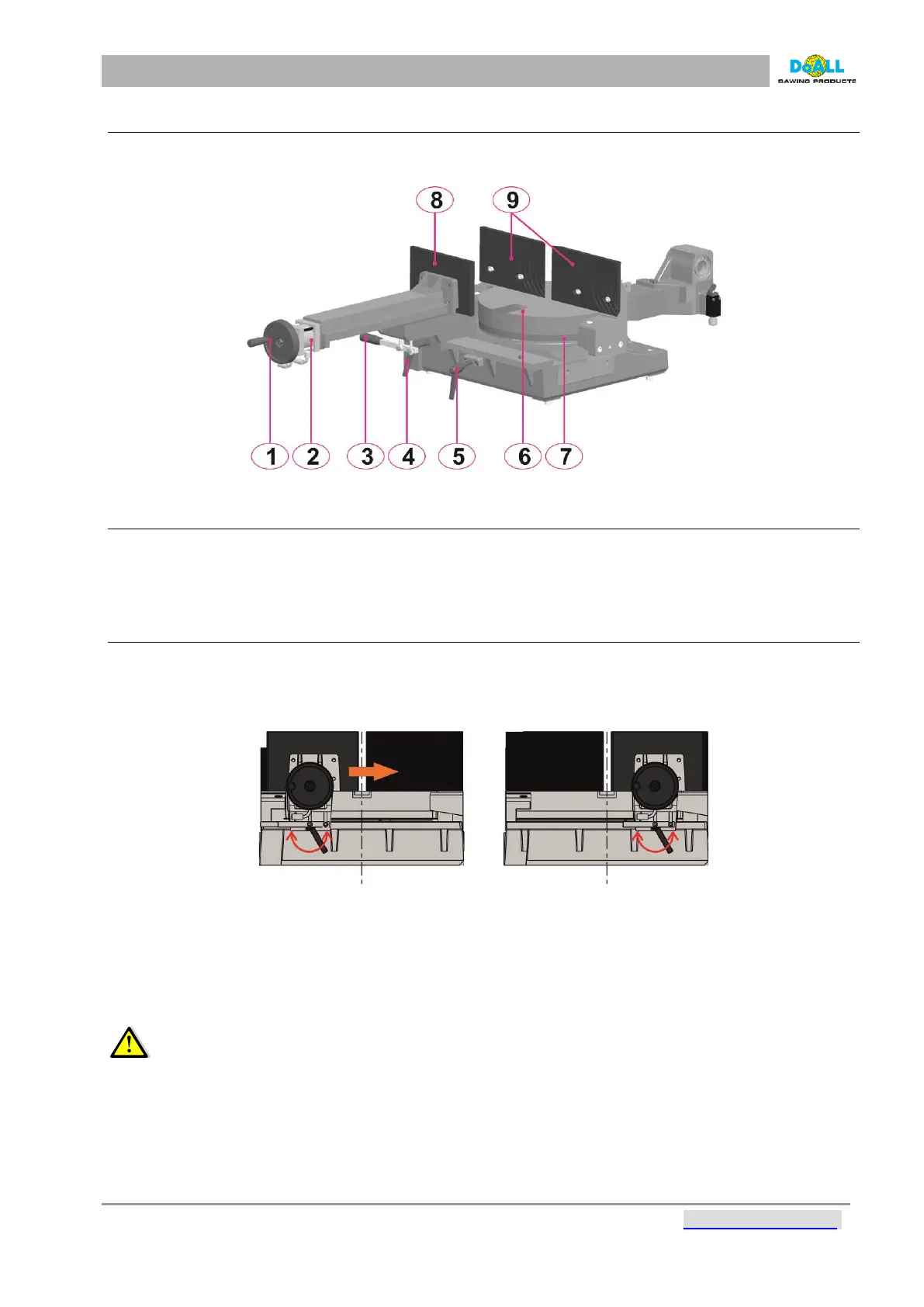

pic: 9-3
9.7.1 CUTTING OF THE RIGHT ANGLE CUTS
- lift the arm above the fixed jaw of the vice
- loose the turntable by a aretation lever (No. 5)
- turn the arm to desired angle – using the measuring scale.
- ensure the turntable by a aretation lever (No. 5)
9.7.2 CUTTING OF THE LEFT ANGLE CUTS
- lift the arm to its upper position above the firm position of the vice
- readjust the vice:
- by lever (No. 4) situated under the vice release the vice
- move the vice to utmost right position and fix it by the lever (No. 4)
pic: 9-4
- make the arm turning to the left side to a desidered angle – the procedure is the same for setting of the
right angle cuts.
Readjusting of the vice is made only for angle cutting to the left. Vertical cuts and cuts to the right are made
in the establishment of the vice on the left!
WARNING: the force of the lock is set to a level, which prevents a change of the cutting angle.
However, in case of a shock to the arm the angle may change.
