DS-320SA
Instruction Manual - 25 -
www.doallsaws.com

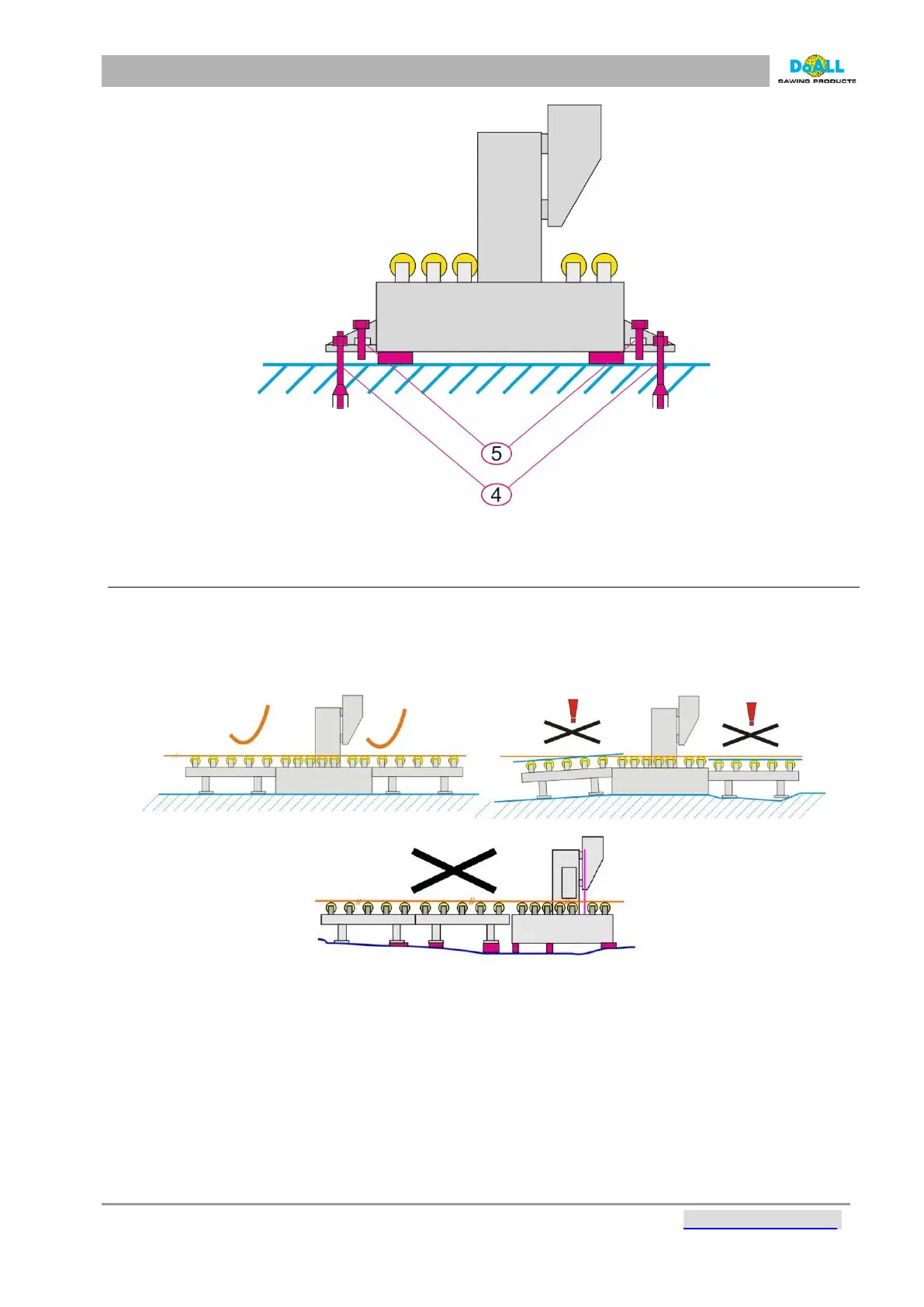

pic: 8-2
8.4 INSTALLING THE ROLLER TABLE
- It is very important to correctly level the conveyors with the plane of machine (plane defined by
tangents of supporting rollers, eventually by plane of the table).
- The machine won’t be cutting straight, the lifespan of the blade, vices and hydraulic cylinder will be
lowered and material handling problems will occur if the conveyors are not leveled properly.
pic: 8-3
