DS-320SA
Instruction Manual - 20 -
www.doallsaws.com

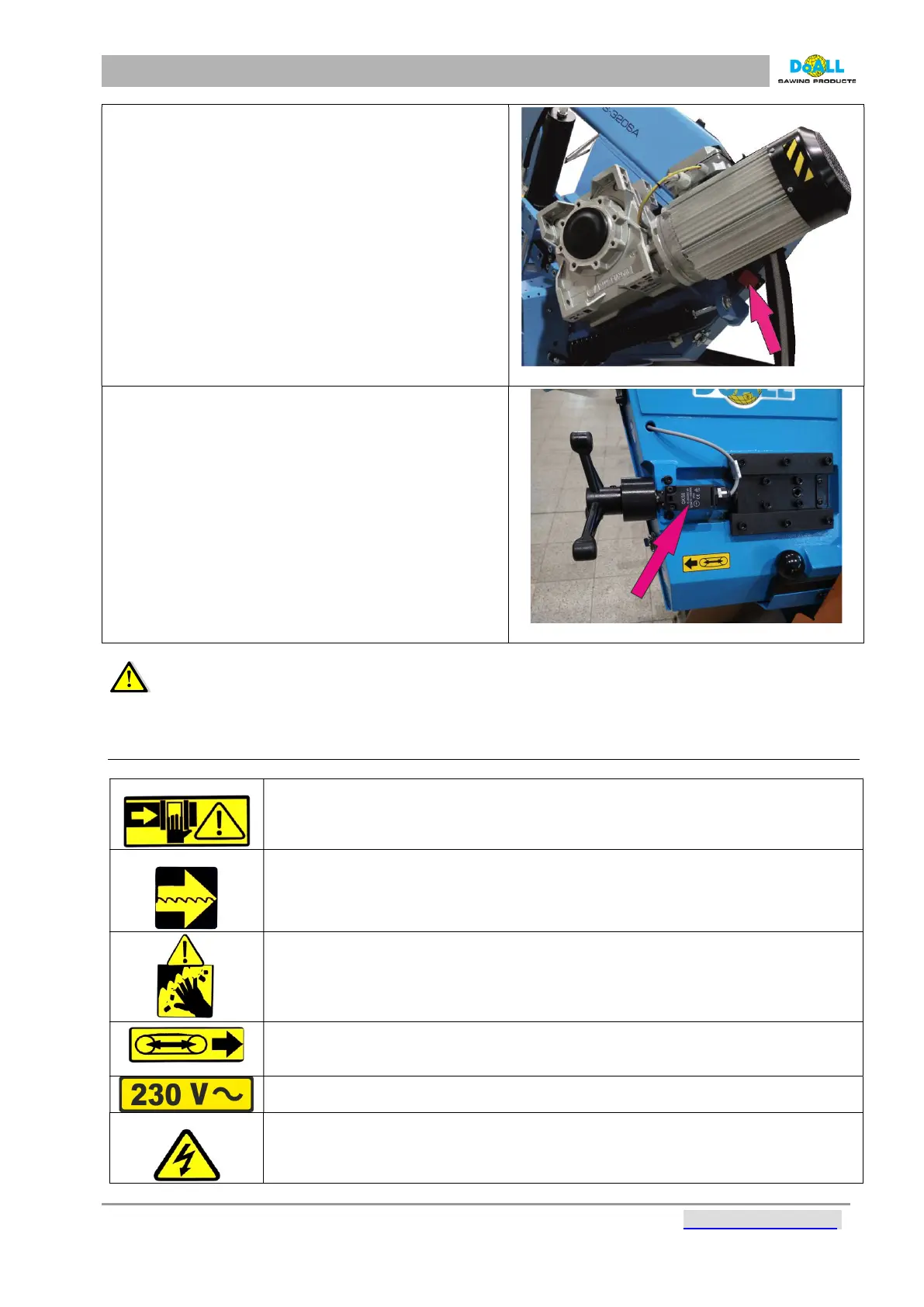

Microswitch of the pulley cover.
With the pulley cover closed, the microswitch is closed,
and machine operation is enabled. With the pulley cover
open, the microswitch is open, and machine operation is
disabled.
pic: 5-8
Microswitch for band tension.
Controls the tension of the band and in case of bad
tension or breaking, immediately stops the machine.
Regularly check band tension microswitch to ensure
proper operation.
With good band tension, the microswitch is closed, and
machine operation is enabled. With the bad band
tension, the microswitch is open, and machine operation
is disabled.
pic: 5-9
It is strictly prohibited to dismantle the protective covers, to cut with removed protective covers
or with nonfunctional safety sensors.
5.7 DESCRIPTION OF LABELS
Clamping of material to vice
- During machine operation, keep unauthorized personnel out of the work zone.
- Make sure the vice jaws have firmly clamped the material.
The direction of saw blade when cutting
- When initially starting the machine, check to ensure the saw blade direction is
correct. If not, rewire the power leads.
- When changing saw-blade pay attention to the right sence of direction of teeth.
Be careful when cutting
- When cutting, be very careful.
- Pay attention when changing or stretching saw-blade.
- Only the operator can be near the machine during machine operation.
Adjust saw blade tension
- arrow shows you ( when the cover is closed) the screw that moves with the
tightening pulley.
Feeder cable of electric feeding of the machine
230V power cable for the machine
Electrical Hazard
- Risk of electric shock. Only authorized personnel or a licensed electrician is allowed
to make electrical connections on this machine.
