Base

Engine Components

DODGE

Turbo Diesel

Engine

Lubricating System

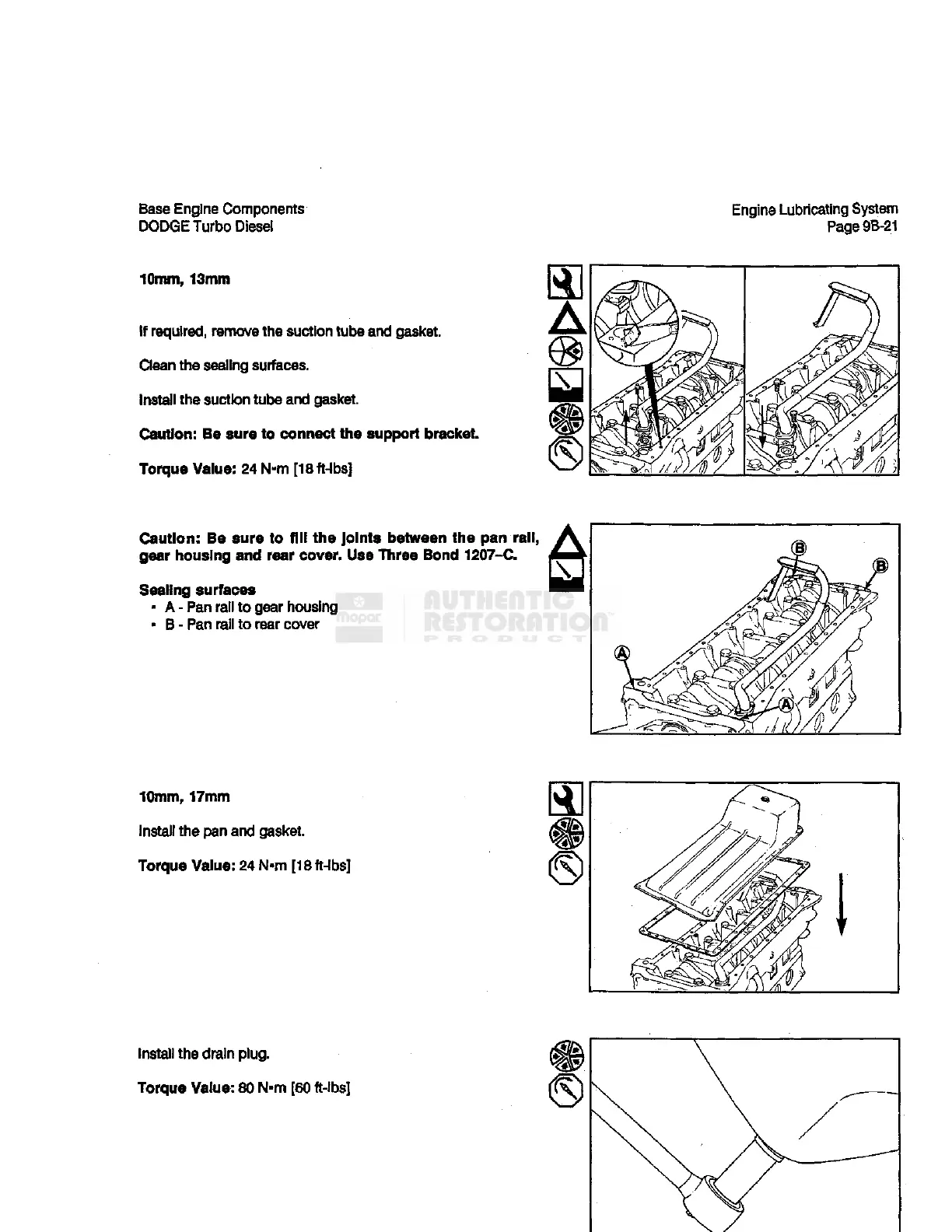

Page9B-21

10mm, 13mm

If required, remove the suction

tube

ami gasket.

Ciean

the sealing

surfaces.

Install the

suction

tube

and gasket.

Caution: Be sure to connect the support bracket.

Torque Value: 24 N-m [18 ft-lbs]

Install the drain plug.

Torque Value: 80 N-m [60 ft-lbs]
