Dodge D250 1990 - Cylinder Bores Data

Base Engine Components
DODGE Turbo Diesel
Specifications

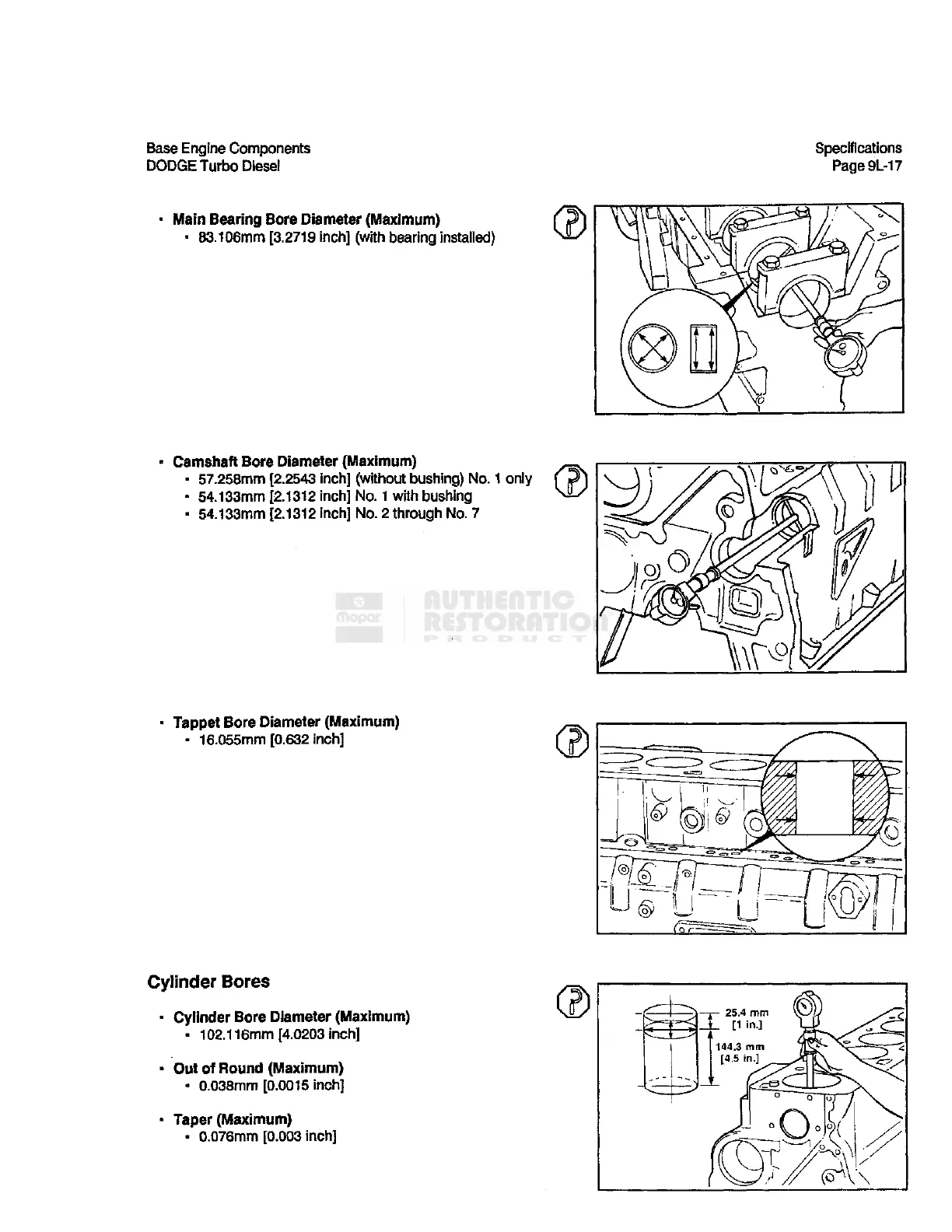

Page 9L-17
- Main Bearing Bore Diameter (Maximum)
• 83.106mm [3.2719 inch] (with bearing installed)
- Camshaft Bore Diameter (Maximum)
• 57.258mm [2.2543 inch] (without bushing) No. 1 only
- 54.133mm [2.1312 inch] No. 1 with bushing
- 54.133mm [2.1312 inch] No. 2 through No. 7
- Tappet Bore Diameter (Maximum)
• 16.055mm [0.632 inch]
Cylinder Bores
- Cylinder Bore Diameter (Maximum)
• 102.116mm [4.0203 inch]
• Out of Round (Maximum)
• 0.038mm [0.0015 inch]
- Taper (Maximum)
• 0.076mm [0.003 inch]
