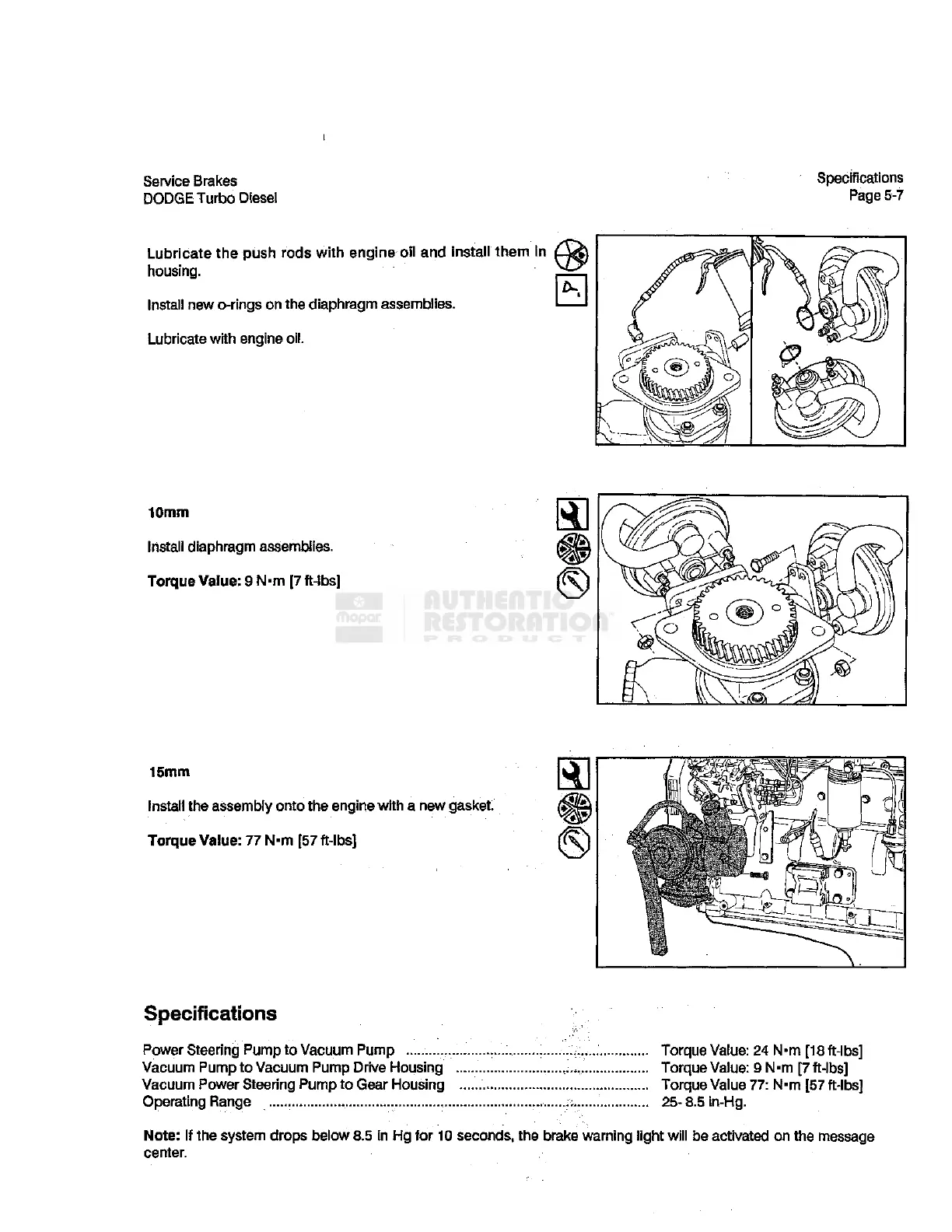

Service Brakes
DODGE Turbo Diesei
Specifications
Page 5-7
Lubricate the push rods with engine oil and install them in
housing.
Install new
o-rings
on the diaphragm assemblies.
Lubricate with engine oil.
10mm
install diaphragm assemblies.
Torque Value: 9 N-m [7 ft-ibs]
15mm
install the assembly onto the engine with a new gasket.
Torque Value: 77 N-m [57 ft-lbs]
Specifications
Power Steering Pump to Vacuum Pump Torque
Value:
24 N-m [18 ft-lbs]
Vacuum Pump to Vacuum Pump Drive Housing Torque
Value:
9 N-m [7 ft-lbs]
Vacuum Power Steering Pump to Gear Housing Torque Value 77: N-m [57 ft-lbs]
Operating Range ^ 25- 8.5 in-Hg.
Note:
if the system drops below 8.5 in Hg for 10 seconds, the brake warning light will be activated on the message
center.
