Dodge D250 1990 - Low Idle Stop Speed

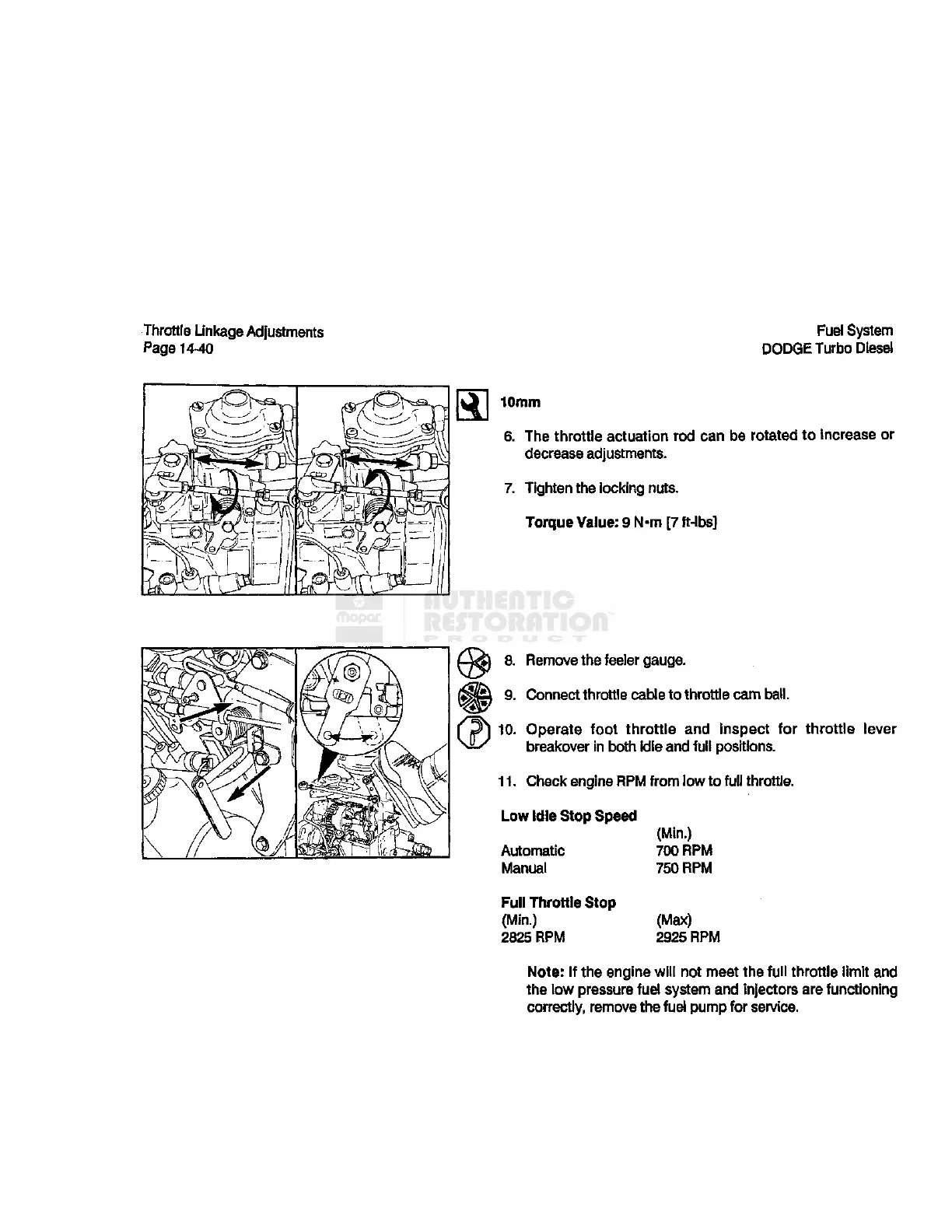

Throttle Linkage Adjustments
Page 14-40
Fuel System
DODGETurbo Diesel
8. Remove the feeler gauge.
9. Connect throttle cable to throttle cam ball.
10. Operate foot throttle and inspect for throttle lever
breakover in both idle and full positions.
11. Check engine RPM from low to full throttle.
Low Idle Stop Speed
(Min.)
Automatic 700 RPM
Manual 750 RPM
Full Throttle Stop
(Min.) (Max)
2825 RPM 2925 RPM
Note: If the engine will not meet the full throttle limit and
the low pressure fuel system and injectors are functioning
correctly, remove the fuel pump for service.
