Dodge D250 1990 - Camshaft Installation

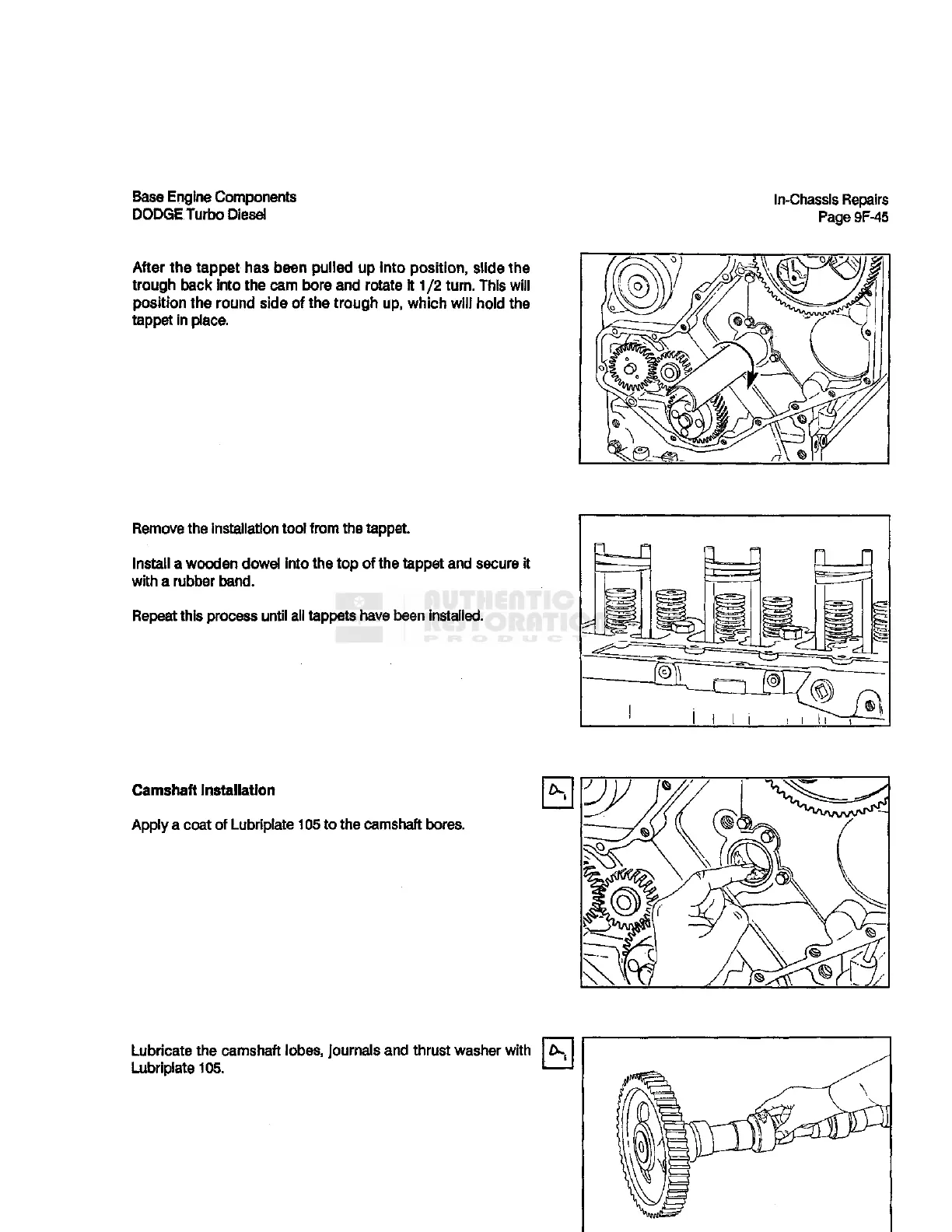

Base Engine Components
DODGETurbo Diesel
In-Chassis Repairs
Page 9F-45
After the tappet has been pulled up into position, slide the
trough back into the cam bore and rotate it 1 /2 turn. This will
position the round side of the trough up, which will hold the
tappet in place.
Remove the installation tool from the tappet.
Install a wooden dowel into the top of the tappet and secure it
with a rubber band.
Repeat this process until all tappets have been installed.
Camshaft Installation
Apply a coat of Lubriplate 105 to the camshaft bores.
Lubricate the camshaft lobes, journals and thrust washer with
Lubriplate 105.
