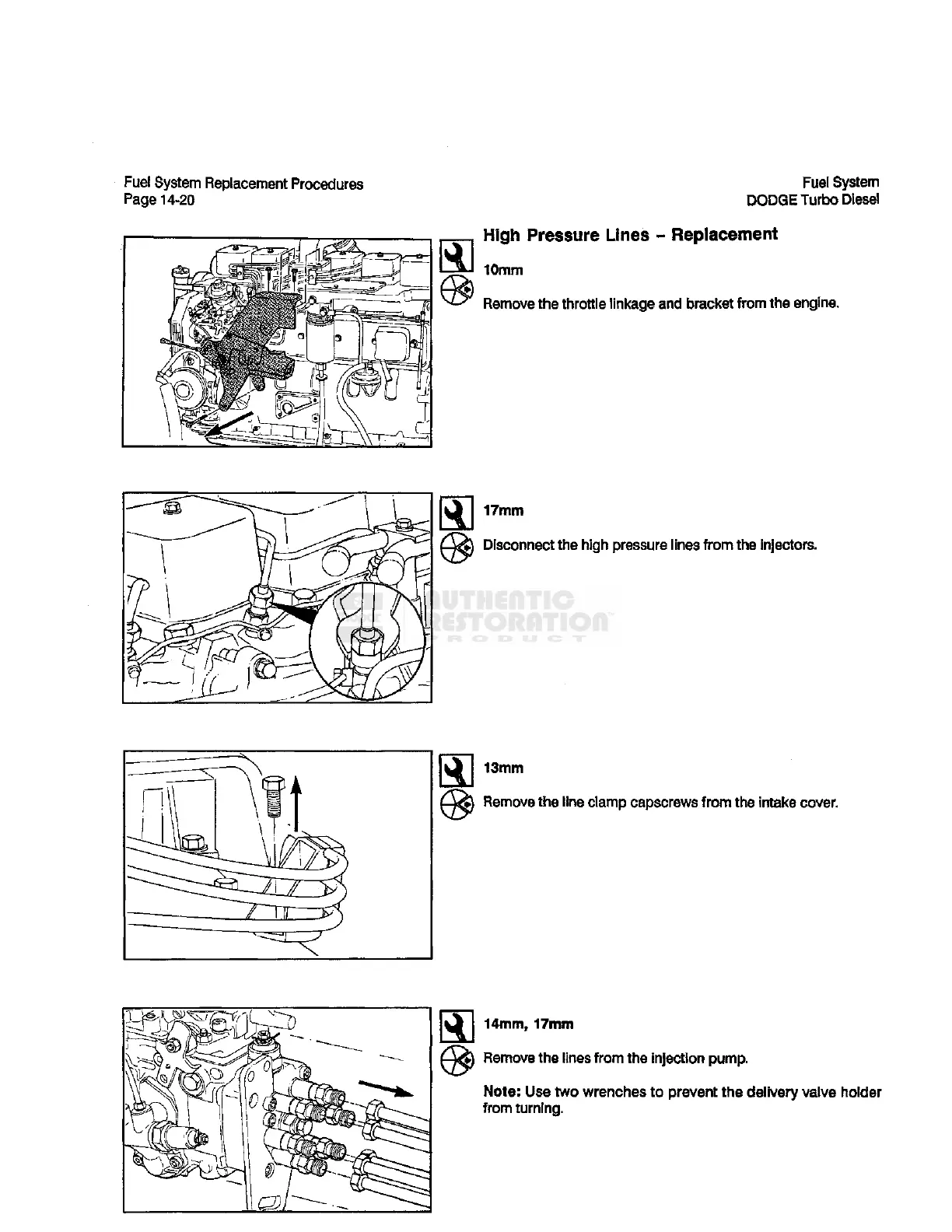

Fuel System Replacement Procedures
Page 14-20
Fuel System
DODGE
Turbo
Diesel
High
Pressure
Lines
- Replacement
10mm
Remove the throttle linkage and bracket from the engine.
JS^
| 17mm
^ Disconnect the high pressure lines
from
the injectors.
13mm
ft Remove the line clamp capscrews from the intake cover.
14mm, 17mm
Remove the lines from the injection pump.
Note:
Use two wrenches to prevent the delivery valve holder
from turning.
To Next Page
