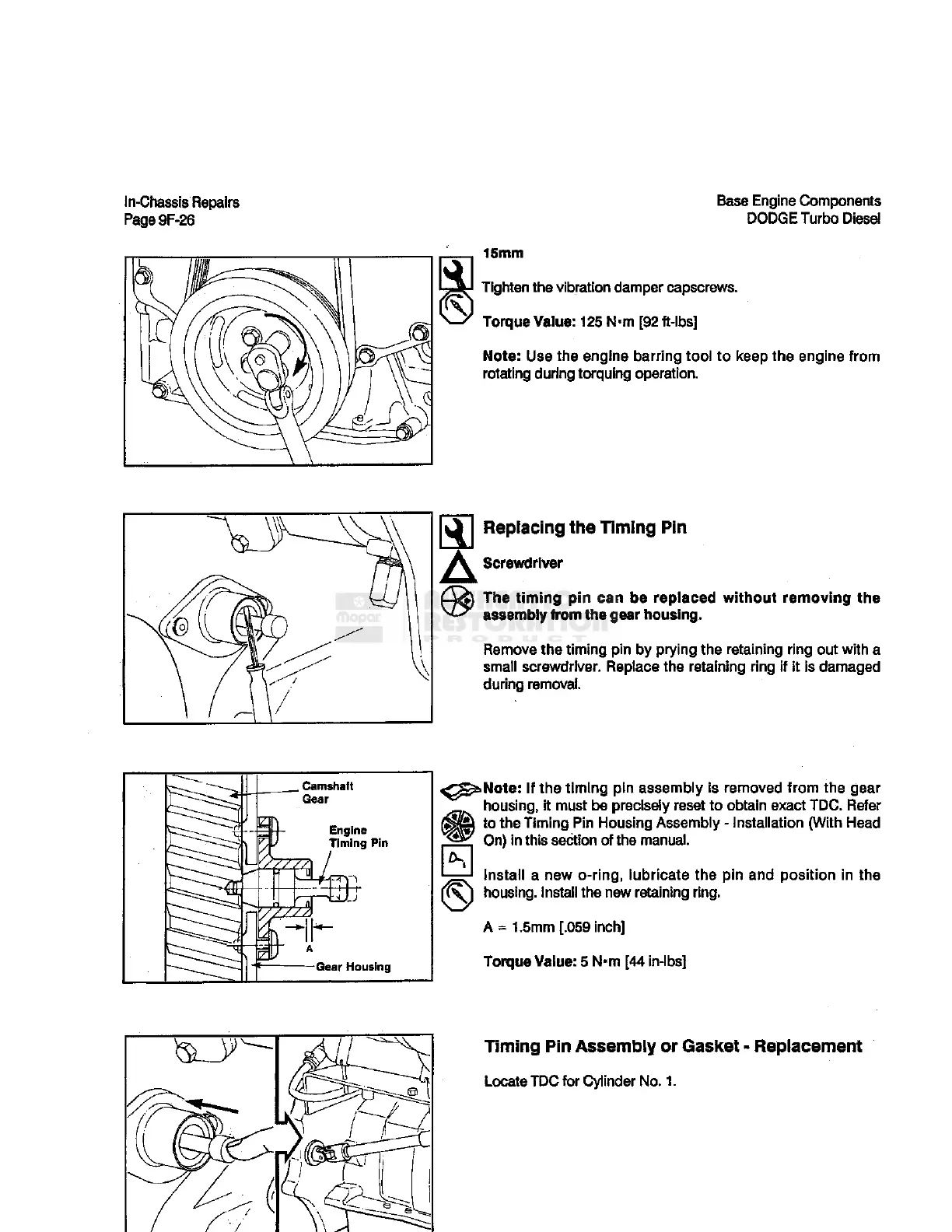

In-Chassis Repairs
Page9F-26
Base Engine Components
DODGE Turbo Diesel
15mm
Tighten the vibration clamper capscrews.
Torque Value: 125 N-m [92 ft-lbs]
Note: Use the engine barring tool to keep the engine from
rotating during torquing operation.
|^ | Replacing the Timing Pin
A
Screwdriver
The timing pin can be replaced without removing the
assembly from the gear housing.
Remove the timing pin by prying the retaining ring out with a
small screwdriver. Replace the retaining ring if it is damaged
during removal.
Camshaft
Gear
Engine
Timing Pin
tax
Gear Housing
^Is^Note: If the timing pin assembly is removed from the gear
housing, it must be precisely reset to obtain exact TDC. Refer
to the Timing Pin Housing Assembly - Installation (With Head
On) in this section of the manual.
Install a new o-ring, lubricate the pin and position in the
(f^) housing, install the new retaining ring.
A « 1.5mm [.059 inch]
Torque Value: 5 N-m [44 in-lbs]
Timing Pin Assembly or Gasket - Replacement
Locate TDC for Cylinder No. 1.
