Dodge D250 1990 - Belt Tensioner - Replacement; Cooling System Replacement Procedures; Drive Belt - Replacement

Coding System Replacement Procedures
Page 7-10
Coding System
DODGE Turbo Diesel

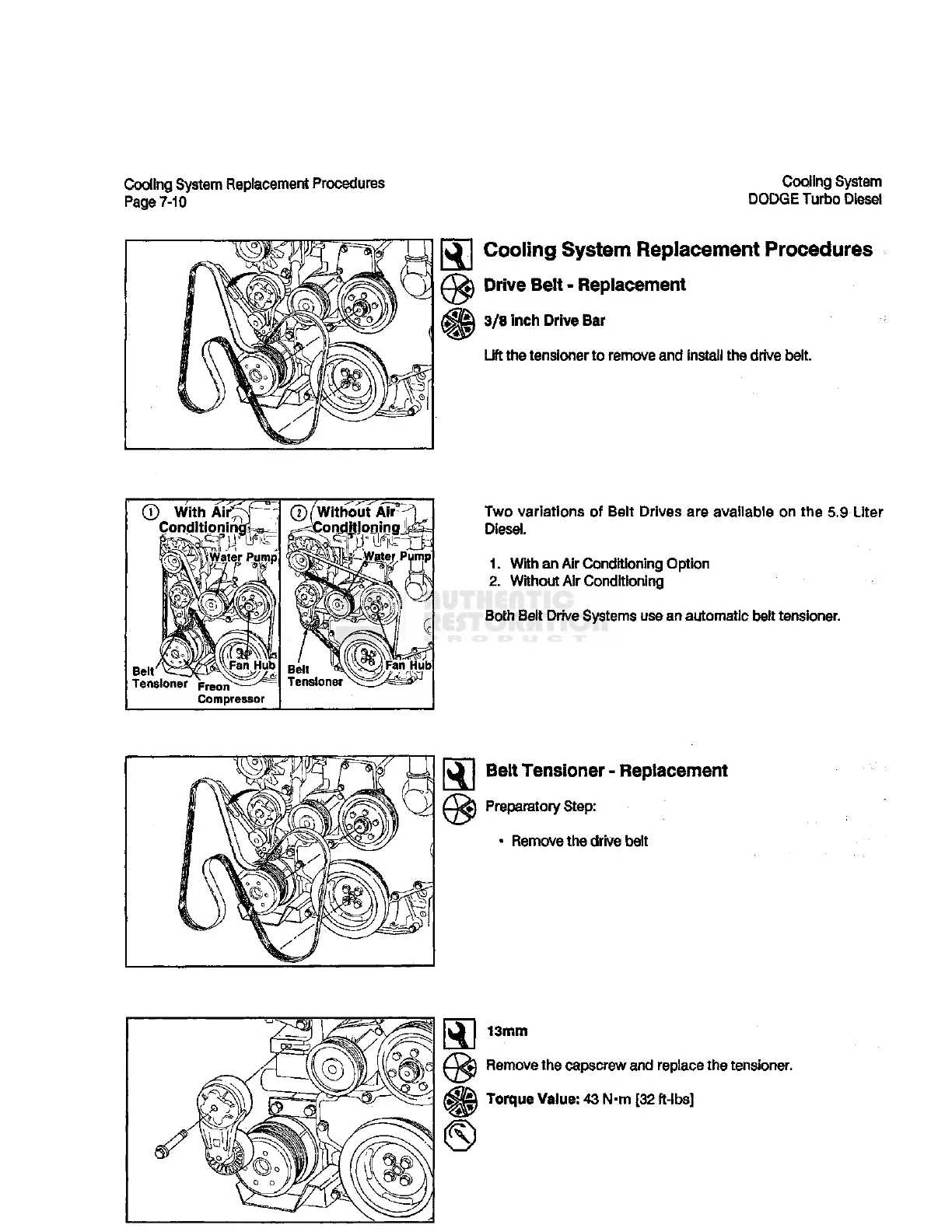

^ Cooling System Replacement Procedures
Drive Beit - Replacement
j^Ssi 3/8 inch Drive Bar
Lift the tensioner to remove and install the drive belt.
© WithAir^f--
ConditioningL^
Water Pump
Belt'
Tensioner Freon^
Compressor
Belt
Tensioner
Two variations of Belt Drives are available on the 5.9 Liter
Diesei.
1. With an Air Conditioning Option
2. Without Air Conditioning
Both Belt Drive Systems use an automatic belt tensioner.
^ Belt Tensioner - Replacement
Preparatory Step:
• Remove the drive belt
13mm
D Remove the capscrew and replace the tensioner.
Torque Value; 43 N-m [32 ft-lbs]
