Base

Engine Components

Out-of-Chassis

Repairs

DODGE

Turbo

Diesel Page 91-5

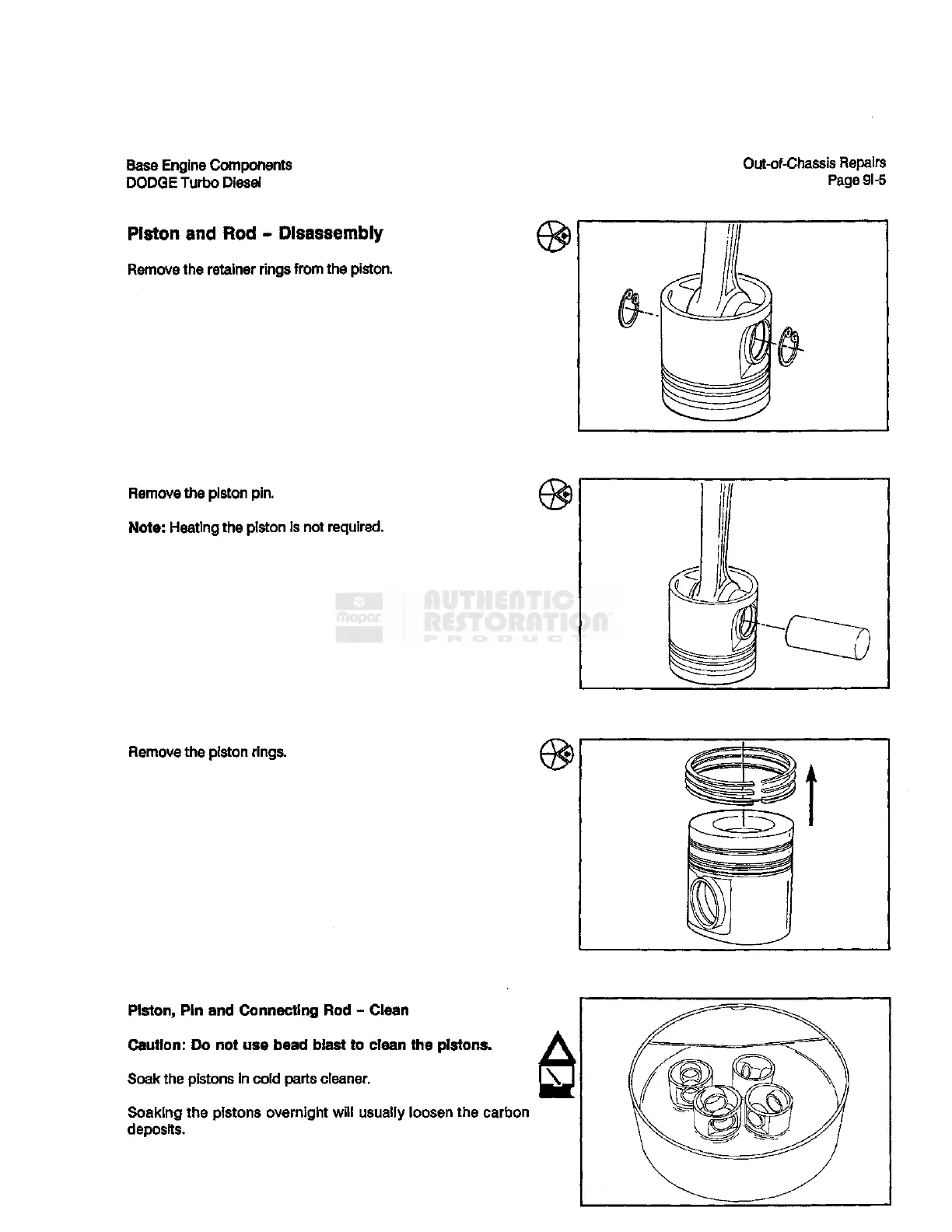

Piston

and Rod -

Disassembly

Remove the

retainer

rings

from

the piston.

Remove the piston pin.

Note:

Heating

the piston is not required.

Remove the piston rings.

Piston,

Pin and Connecting Rod - Clean

Caution: Do not use bead blast to clean the pistons.

Soak the pistons in cold parts cleaner.

Soaking the pistons

overnight

will

usually loosen the carbon

deposits.
