Dodge D250 1990 - Cylinder Head and Gasket - Installation

In-Chassis Repairs
Page 9F-22
Base Engine Components
DODGE Turbo Diesei

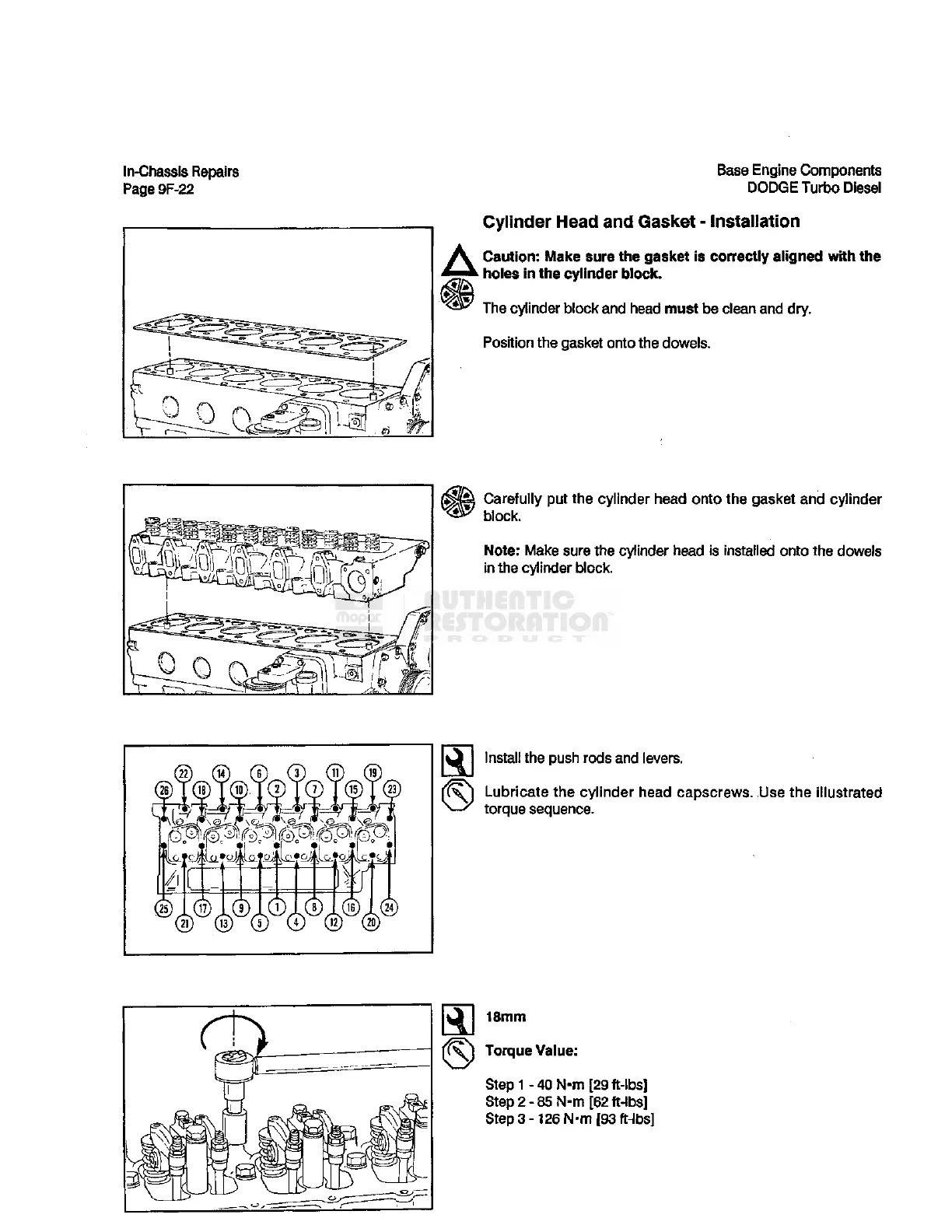

Cylinder Head and Gasket - Installation
Caution; Make sure the gasket is correctly aligned with the
holes in the cylinder block.
^ The cylinder block and head must be clean and dry.
Position the gasket onto the dowels.
cJl info)) Lijoi vL^fojfU*U
© ® © © ® ®
Install the push rods and levers.
Lubricate the cylinder head capscrews. Use the illustrated
torque sequence.
18mm
Torque Value:
Stepl -40 N-m [29 ft-lbs]
Step 2-85 N-m [62 ft-lbs]
Step 3-126 N-m [93 ft-lbs]
