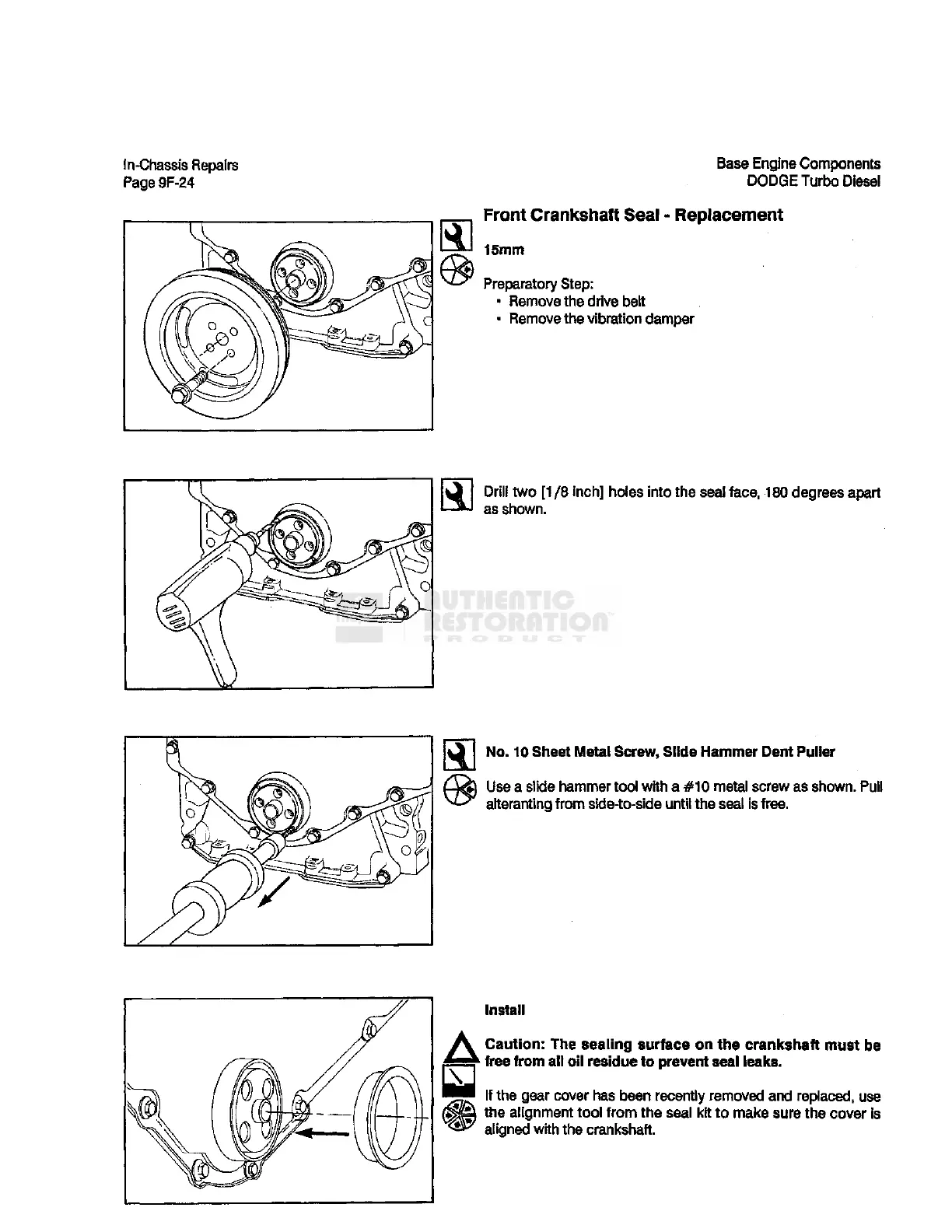

Dodge D250 1990 - Front Crankshaft Seal - Replacement

In-Chassis Repairs
Page 9F-24
Base Engine Components
DODGE Turbo Diesel
Front Crankshaft Seal - Replacement
15mm
Preparatory Step:
• Remove the drive belt
• Remove the vibration damper
Drill two [1 /8 inch] holes into the seal face, 180 degrees apart
as shown.
No. 10 Sheet Metal Screw, Slide Hammer Dent Puller
Use a slide hammer tool with a #10 metal screw as shewn,
alteranting from side-to-side until the seal is free.
A
install
Caution: The sealing surface on the crankshaft must be
free from all oil residue to prevent seal leaks.
if the gear cover has been recently removed and replaced, use
the alignment tool from the seal kit to make sure the cover is
aligned with the crankshaft.
