Dodge D250 1990 - Oil Pump

To Next Page

To Previous Page

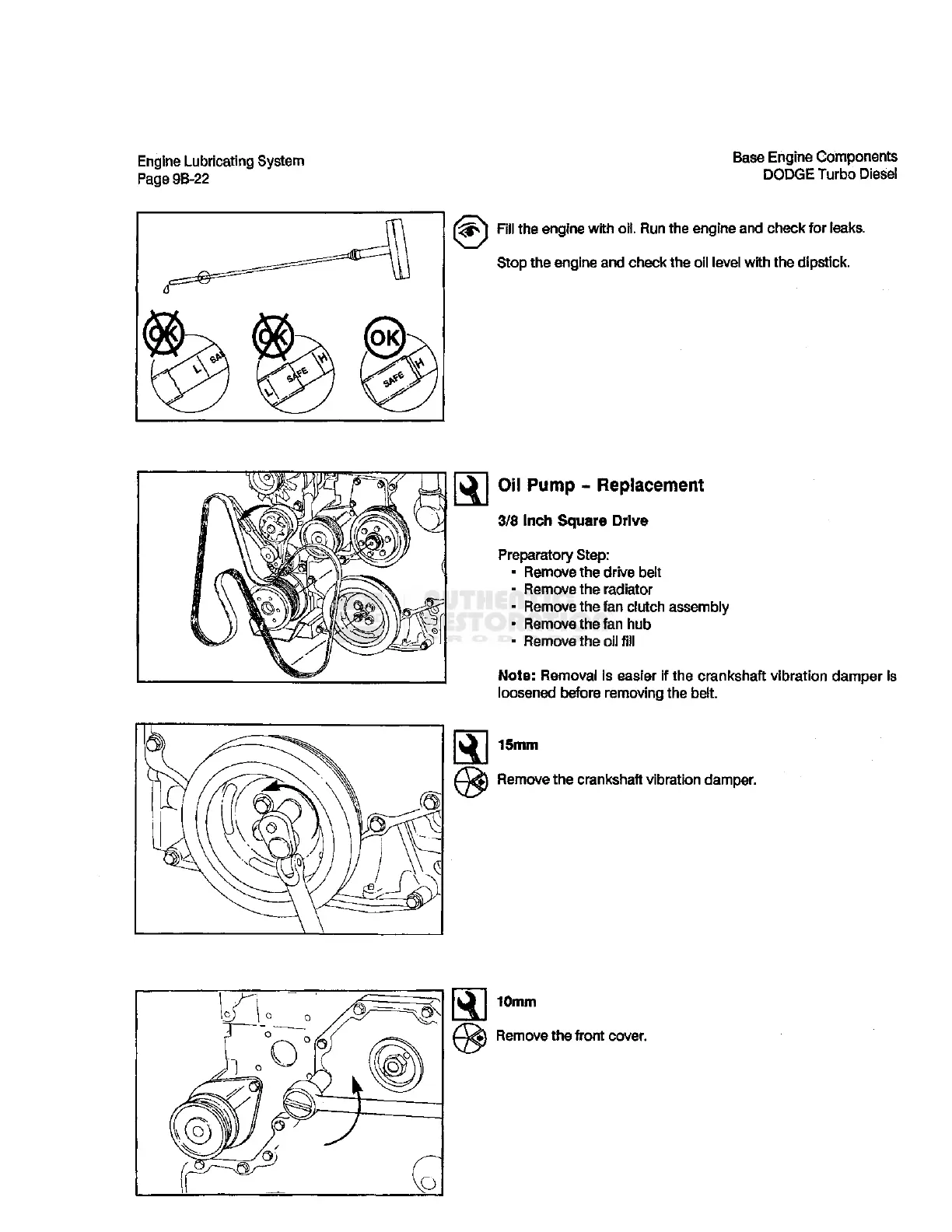

Oil Pump - Replacement

3/8 Inch Square Drive

Preparatory Step;

• Remove the drive

belt

- Remove the radiator

• Remove the fan clutch assembly

- Remove the fan hub

• Remove the oil

fill

Note:

Removal is easier if the crankshaft vibration damper is

loosened before removing the belt.

15mm

Remove the crankshaft vibration damper.

the

front

cover.
