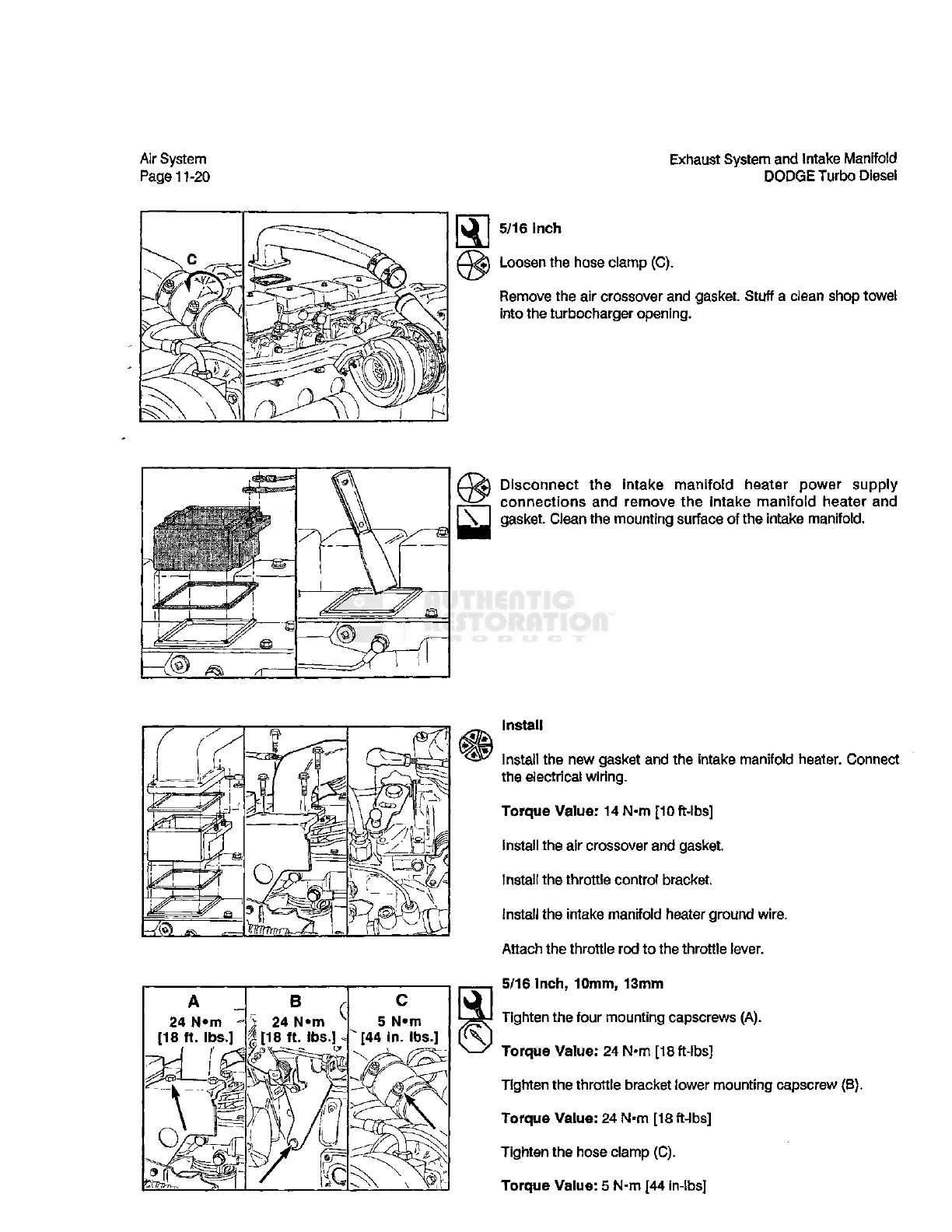

Air System
Page 11-20
Exhaust System and Intake Manifold
DODGE Turbo Diesel
5/16 inch
& Loosen the hose clamp (C).
Remove the air crossover and gasket. Stuff a clean shop towel
into the turbocharger opening.
:») Disconnect the intake manifold heater power supply
connections and remove the intake manifold heater and
\J gasket. Clean the mounting surface of the intake manifold.
f— v^r T3
i i i i i i i
A
24 N»m
[18 ft. lbs.]
Install
Install the new gasket and the intake manifold heater. Connect
the electrical wiring.
Torque Value: 14 N-m [10 ft-lbs]
Install the air crossover and gasket.
Install the throttle control bracket.
install the intake manifold heater ground wire.
Attach the throttle rod to the throttle lever.
5/16 Inch, 10mm, 13mm
Tighten the four mounting capscrews (A).
Torque Value: 24 N-m [18 ft-lbs]
Tighten the throttle bracket lower mounting capscrew (B).
Torque Value: 24 N-m [18 ft-lbs]
Tighten the hose clamp (C).
Torque Value: 5 N-m [44 in-lbs]
