Base Engine Components
DODGE Turbo Diesei

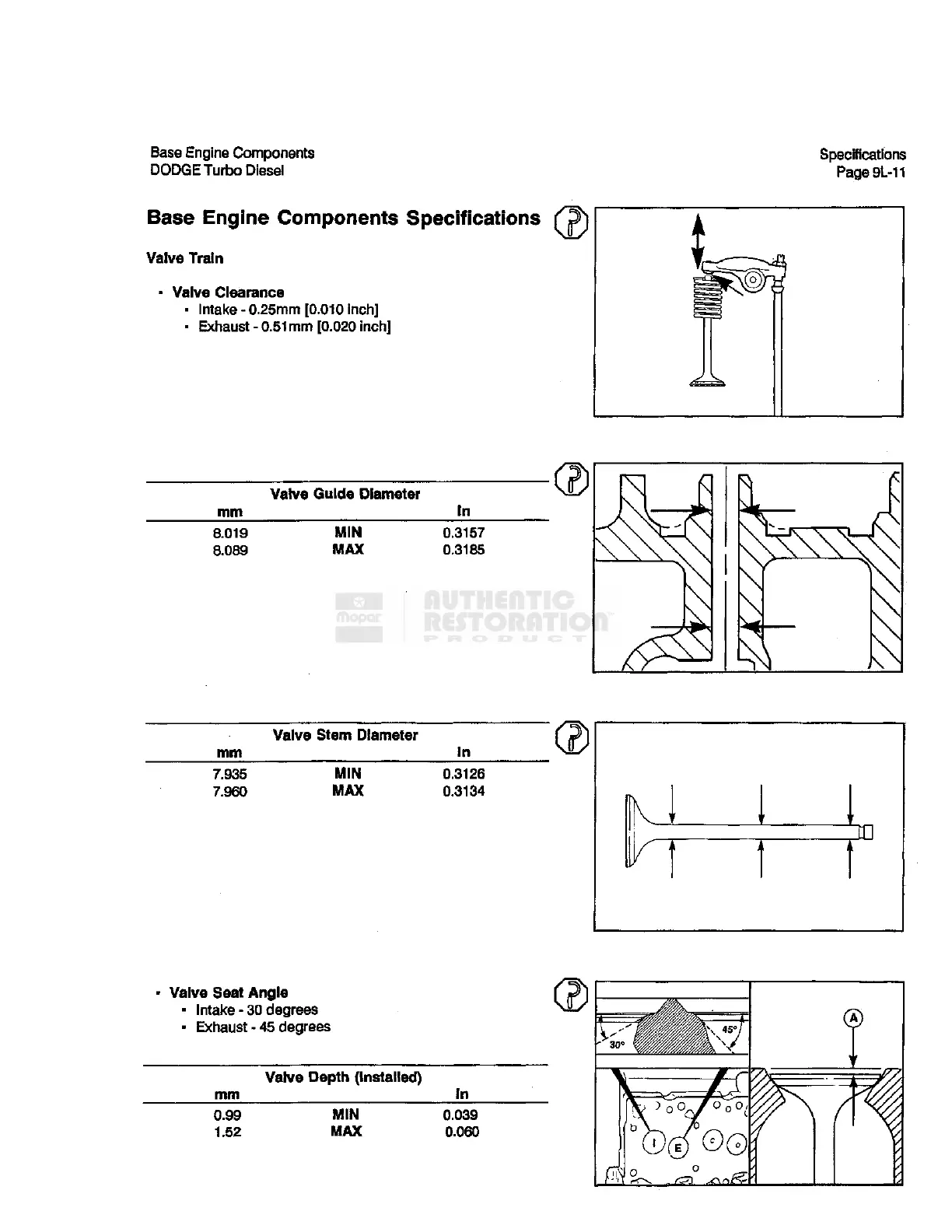

Base Engine Components Specifications (J)
Valve Train
- Valve Clearance
• Intake - 0.25mm [0.010 inch]
• Exhaust - 0.51 mm [0.020 Inch]
Specifications
Page9L-11
Valve Guide Diameter
mm
in
8.019
8.089
MIN
MAX
0.3157
0.3185
Valve Stem Diameter
mm
7.935
7.960
MIN
MAX
in
0.3126
0.3134
' 1
¥ 1
i i i l
Valve Seat Angle
- Intake - 30 degrees
• Exhaust - 45 degrees
Valve Depth (Installed)
mm
In
0.99
1.52
MIN
MAX
0.039
0.060
