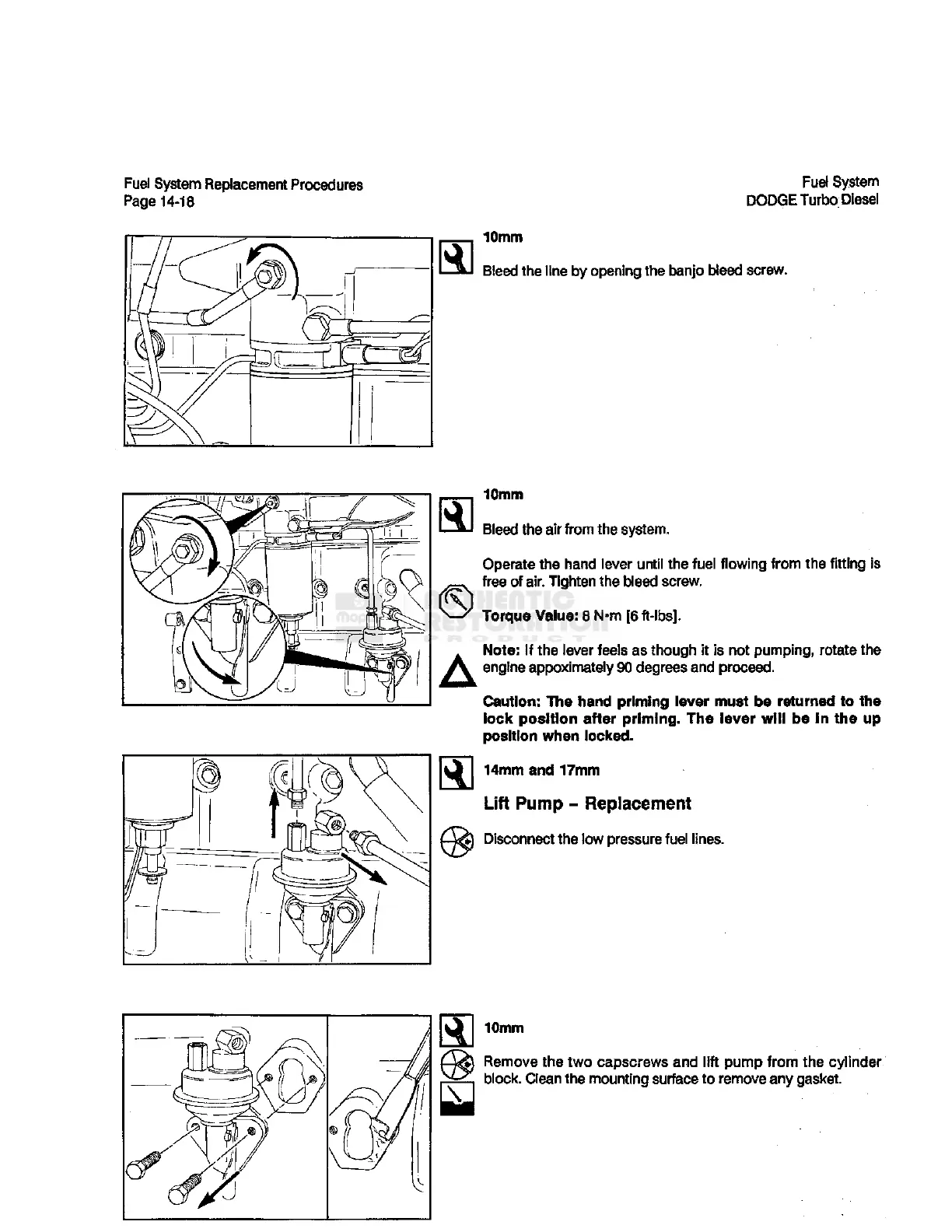

Fuel
System Replacement Procedures
Page 14-18
Fuel
System
DODGE
Turbo Diesel
10mm
Bleed
the air
from
the
system.
Operate the hand lever
until
the fuel flowing
from
the
fitting
is
free of air. Tighten the bleed screw.
Torque Value: 8 N-m [6 ft-lbs].
Note:
If the lever feels as though it is not pumping,
rotate
the
engine appoximately 90 degrees and proceed.
Caution: The hand priming lever must be returned to the
lock position
after
priming. The lever
will
be In the up
position when locked.
14mm and 17mm
Lift Pump - Replacement
:*)
Disconnect
the low
pressure
fuel lines.
10mm
Remove the two
capscrews
and
lift
pump
from
the cylinder
block. Clean the mounting surface to remove any gasket.
