Fuel System
DODGETurbo Diesel

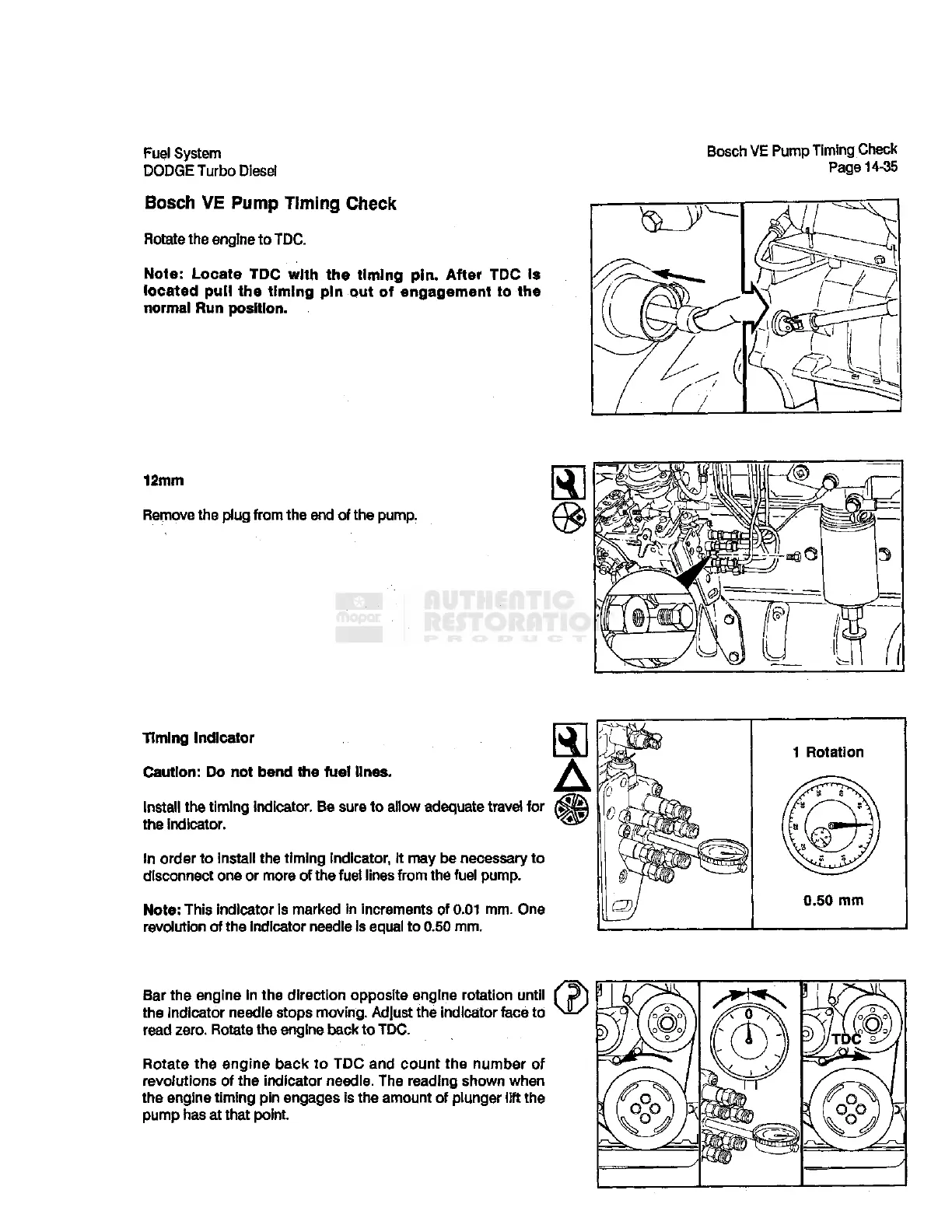

Bosch VE Pump Timing Check
Page 14-35
Bosch VE Pump Timing Check
Rotate the engine to TDC.
Note: Locate TDC with the timing pin. After TDC Is
located pull the timing pin out of engagement to the
normal Run position.
12mm
Remove the plug from the end of the pump.
Timing Indicator
Caution: Do not bend the fuel lines.
A
Install the timing indicator. Be sure to allow adequate travel for g|§|^
the indicator.
In order to install the timing indicator, it may be necessary to
disconnect one or more of the fuei lines from the fuel pump.
Note: This indicator is marked in increments of 0.01 mm. One
revolution of the indicator needle is equal to 0.50 mm.
1 Rotation
—"\
(° A.
ft \
8
\\
u5/
0.50 mm
Bar the engine in the direction opposite engine rotation until
the indicator needle stops moving. Adjust the indicator face
read zero. Rotate the engine back to TDC.
Rotate the engine back to TDC and count the number of
revolutions of the indicator needle. The reading shown when
the engine timing pin engages is the amount of plunger lift the
pump has at that point.
^^^^^
(0)
mm
i oro OF
— '
