Fuel
System
DODGE
Turbo Diesel

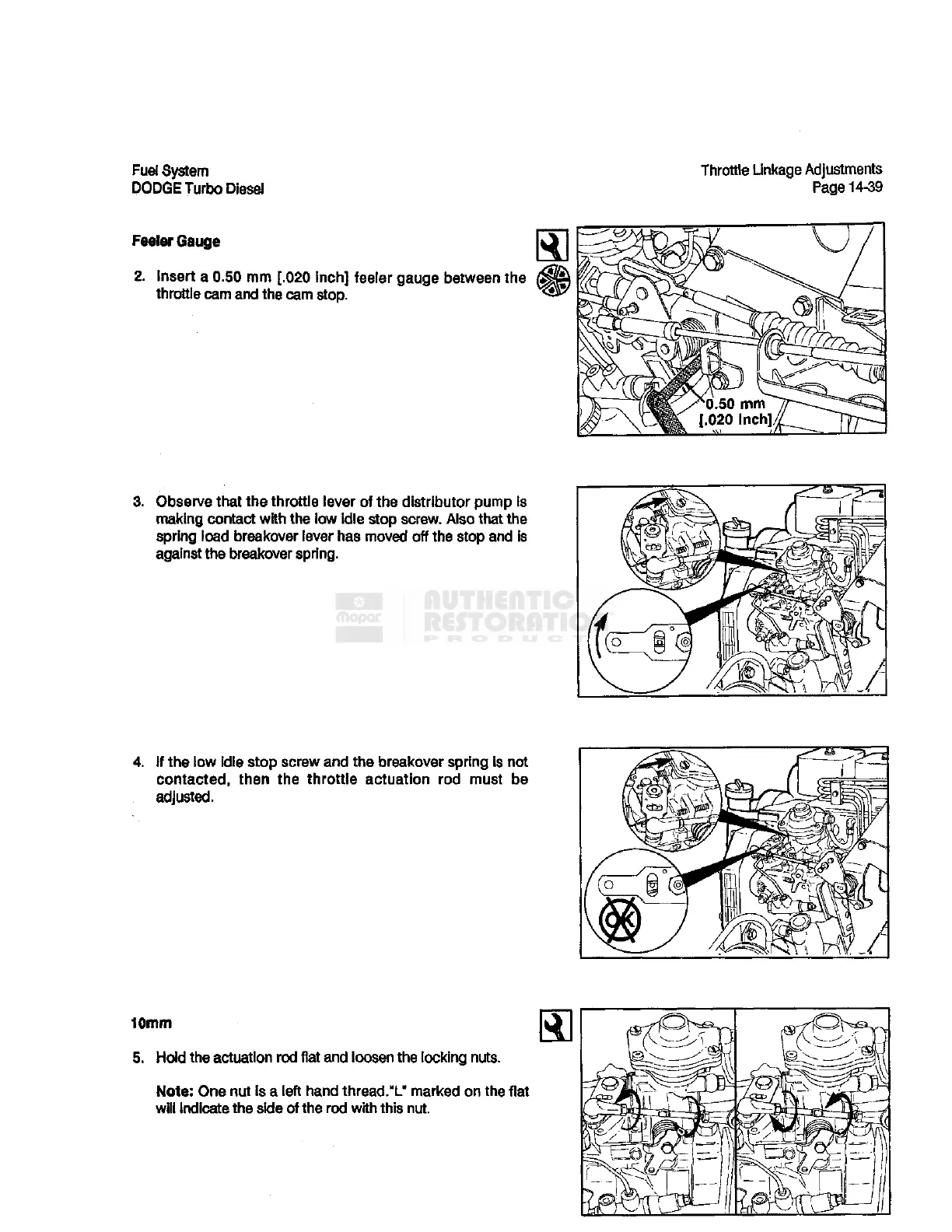

Throttle Linkage Adjustments
Page
14-39
3. Observe
that
the
throttle
lever of the distributor pump is
making contact
with
the low idle stop
screw.
Also
that
the
spring
load breakover lever has moved off the stop and is
against
the breakover
spring.
4. If the low idle stop screw and the breakover spring is not
contacted,
then the
throttle
actuation rod must be
adjusted.
10mm
5. Hold the actuation rod
flat
and
loosen
the locking nuts.
Note:
One nut is a
left
hand thread/L" marked on the
flat
will indicate the side of the rod
with
this nut.
