Base Engine Components

DODGE Turbo Diesel

Alternative Repair Procedures

Page9K-15

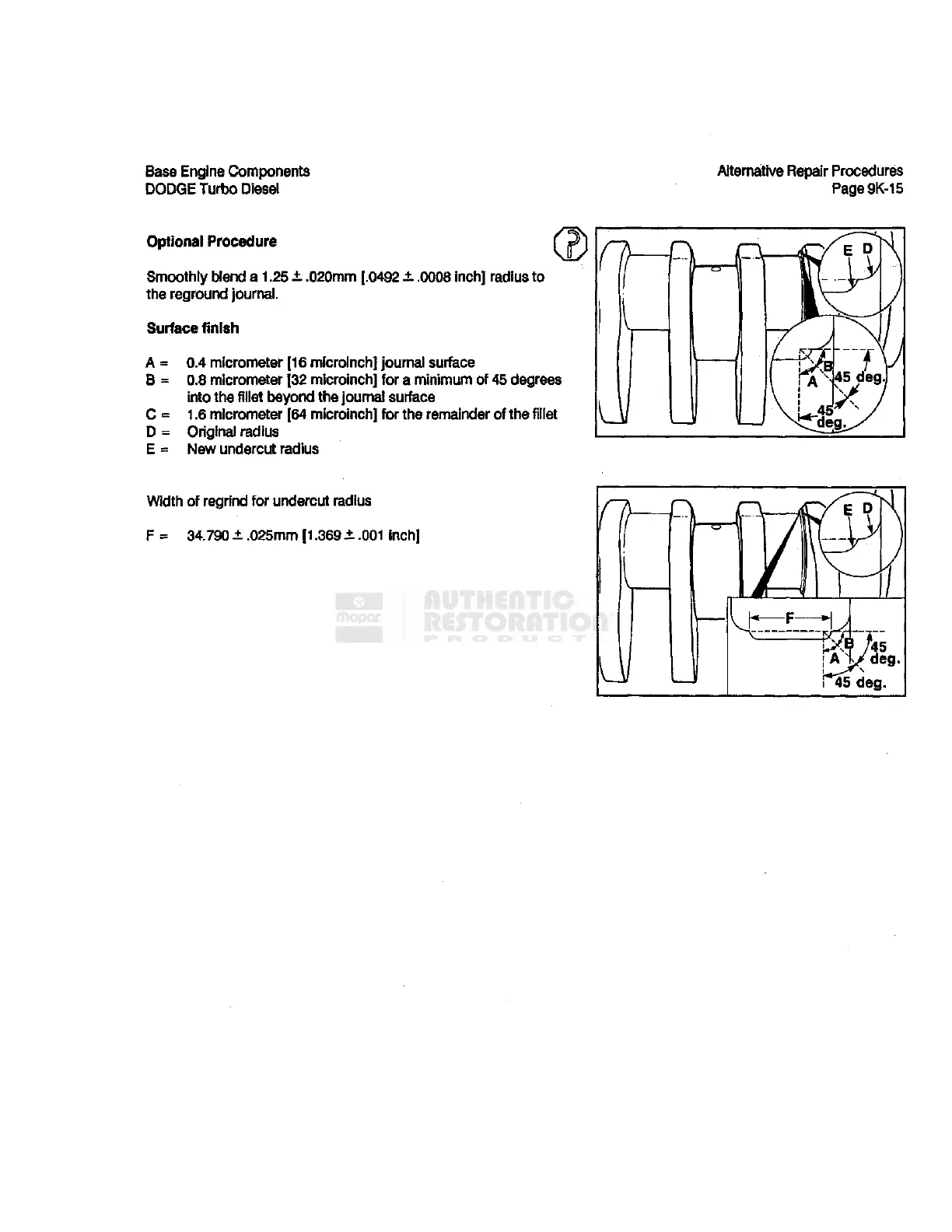

Optional Procedure

Smoothly blend a 1.25 ± .020mm

[.0482

.0008

Inch] radius to

the reground journal.

Surface

finish

A • 0.4 micrometer [16 microinch] journal surface

B = 0.8 micrometer [32 microinch] for a minimum of 45 degrees

into the fillet beyond the journal surface

= 1.6 micrometer [64 microinch] for the remainder of the fillet

D = Original radius

E « New undercut radius
