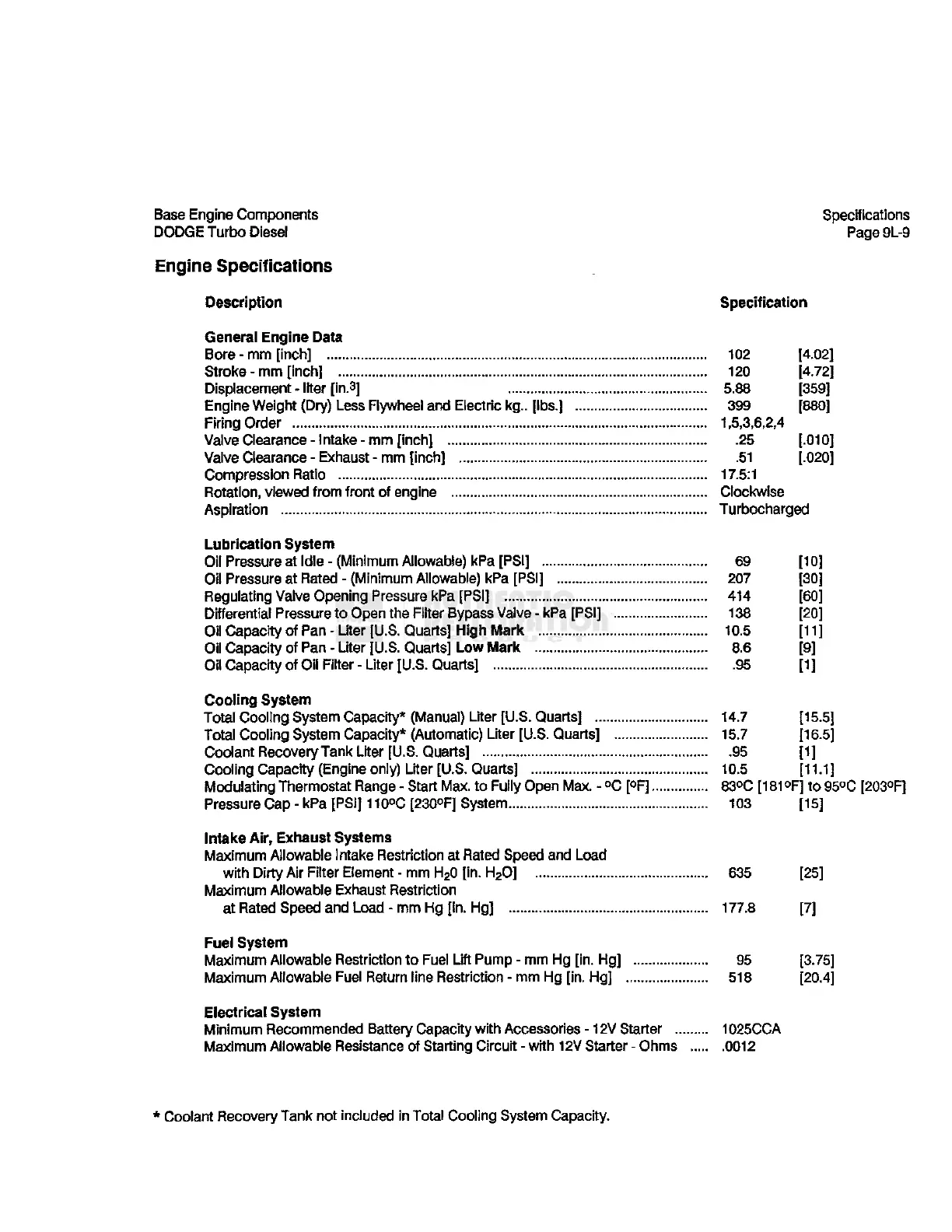

Engine Components Specifications
DODGE
Turbo Diesei Page 9L-9
Engine Specifications
Description Specification
General Engine Data
Bore
- mm [inch] 102
[4.02]
Stroke - mm [inch] 120
[4.72]
Displacement - liter
[in.3]
5.88 [359]
Engine
Weight
(Dry)
Less
Flywheel and Electric kg.. [lbs.] 399 [880]
Firing Order
1,5,3,6,2,4
Valve Clearance - Intake - mm [inch] .25
[.010]
Valve Clearance - Exhaust - mm [inch] .51
[.020]
Compression
Ratio
17.5:1
Rotation, viewed
from
front
of engine Clockwise
Aspiration Turbocharged
Lubrication System
Oil Pressure at
Idle
-
(Minimum
Allowable) kPa [PSI] 69 [10]
Oil Pressure at Rated -
(Minimum
Allowable) kPa [PSI] 207 [30]
Regulating Valve Opening Pressure kPa [PSI] 414 [60]
Differential
Pressure
to Open the Filter
Bypass
Valve - kPa [PSI] 138 [20]
Oil Capacity of Pan - Liter [U.S. Quarts] High
Mark
10.5 [11]
Oil Capacity of Pan - Liter [U.S. Quarts] Low
Mark
8.6 [9]
Oil Capacity of Oil Filter - Liter [U.S. Quarts] 95 [1]
Cooling System
Total Cooling System Capacity*
(Manual)
Liter [U.S. Quarts] 14.7
[15.5]
Total Cooling System Capacity* (Automatic) Liter [U.S. Quarts] 15.7
[16.5]
Coolant Recovery Tank Liter [U.S. Quarts] 95
[1
]
Cooling Capacity (Engine only) Liter [U.S. Quarts] 10.5
[11.1]
Modulating
Thermostat Range - Start Max. to Fully Open Max. - °C [°F] 83°C [181 °F] to 95°C [203°F]
Pressure
Cap - kPa [PSI] 110°C [230°F] System 103 [15]
Intake Air, Exhaust Systems
Maximum
Allowable Intake Restriction at Rated Speed and Load
with
Dirty
Air Filter Element - mm
H2O
[in. H
2
0] 635 [25]
Maximum
Allowable Exhaust Restriction
at Rated Speed and Load - mm Hg [in. Hg] 177.8 [7]
Fuel
System
Maximum
Allowable Restriction to Fuel Lift Pump - mm Hg [in. Hg] 95
[3.75]
Maximum
Allowable Fuel Return line Restriction - mm Hg [in. Hg] 518
[20.4]
Electrical
System
Minimum
Recommended Battery Capacity
with
Accessories
-12V Starter 1025CCA
Maximum
Allowable
Resistance
of Starting Circuit -
with
12V Starter - Ohms 0012
* Coolant Recovery Tank not included In Total Cooling System Capacity.
