Service
Procedures
Page
6-4
Clutch
DODGETurbo
Diesel

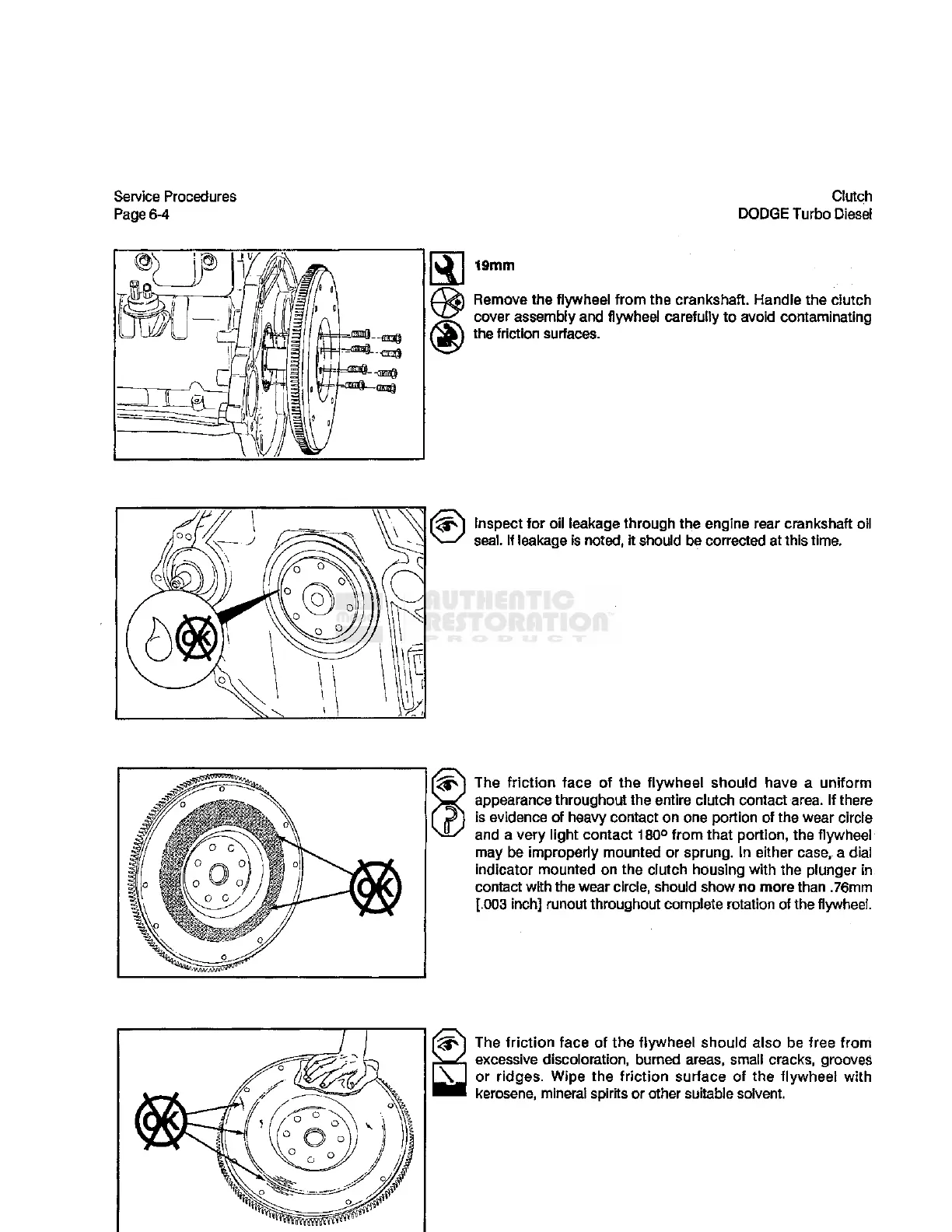

The
friction face of the flywheel should have a uniform
appearance
throughout the entire clutch contact
area.
If there
is
evidence of heavy contact on one portion of the wear
circle
and
a very light contact 180° from that portion, the flywheel
may be improperly mounted or
sprung.
In either
case,
a dial
indicator
mounted on the clutch
housing
with the plunger in
contact
with the wear
circle,
should
show
no more than .76mm
[.003
inch]
runout throughout complete rotation of the
flywheel.
The
friction face of the flywheel should
also
be free from
excessive
discoloration,
burned
areas,
small
cracks,
grooves
or
ridges. Wipe the friction
surface
of the flywheel with
kerosene,
mineral
spirits
or other
suitable
solvent.
