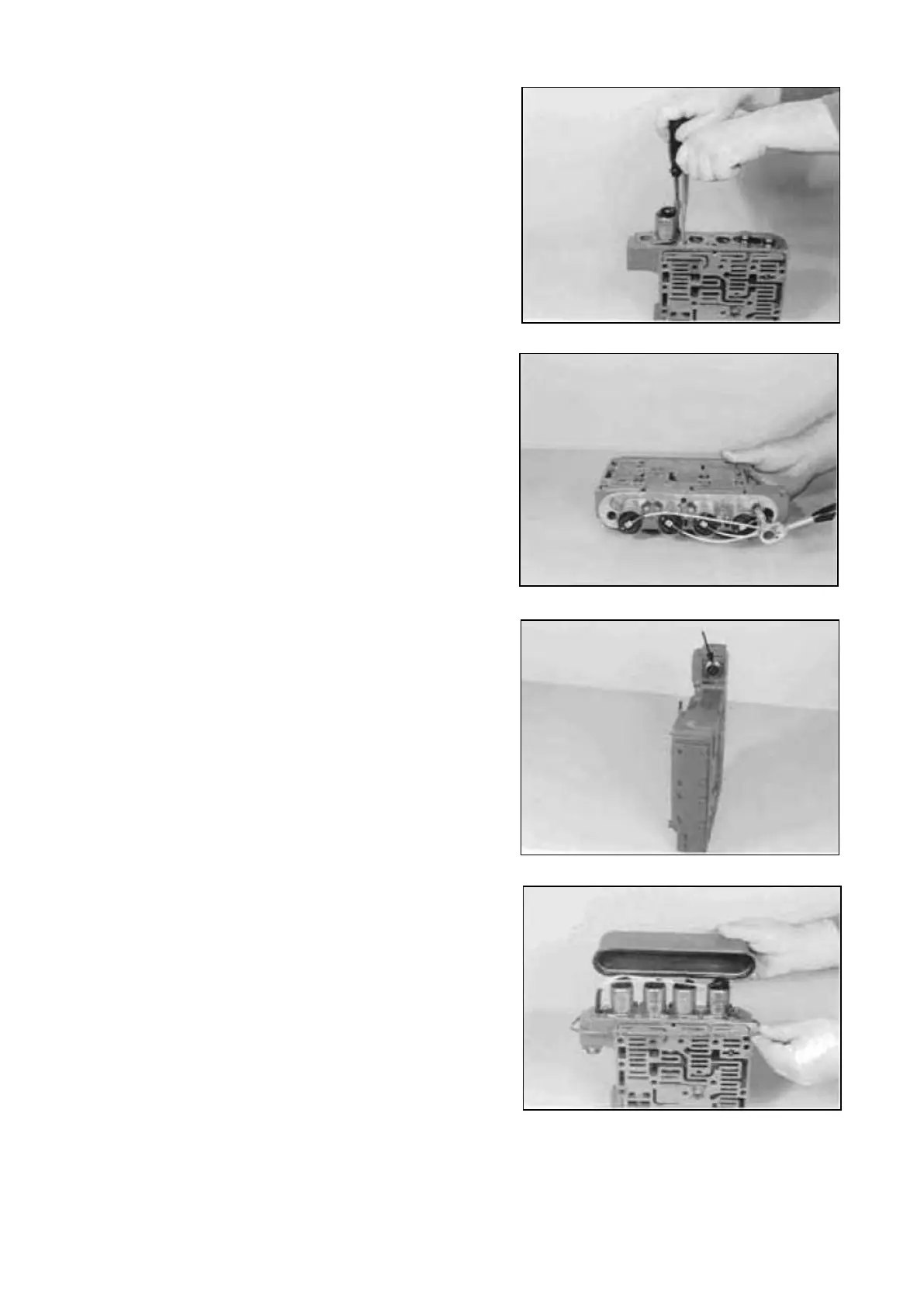

Preload detent block and install solenoid valve.
Install remaining solenoid valves accordingly.
NOTE ;
Employ new O-Rings for solenoid valves !
Pay attention to the radial installation position of the
solenoid valves, see Figure 21 !
Install cable harness (mount new gaskets), fasten
ground cable and connect solenoid valves (Figure
20).
NOTE :
Pay attention to the location of the plug nose, see
Arrow/Figure 21 !
Mount new O-Ring (164.2 x 5.7) and fix cover by
means of clamping collar.
SPC000007 Transmission and Torque Converter
Page 20
