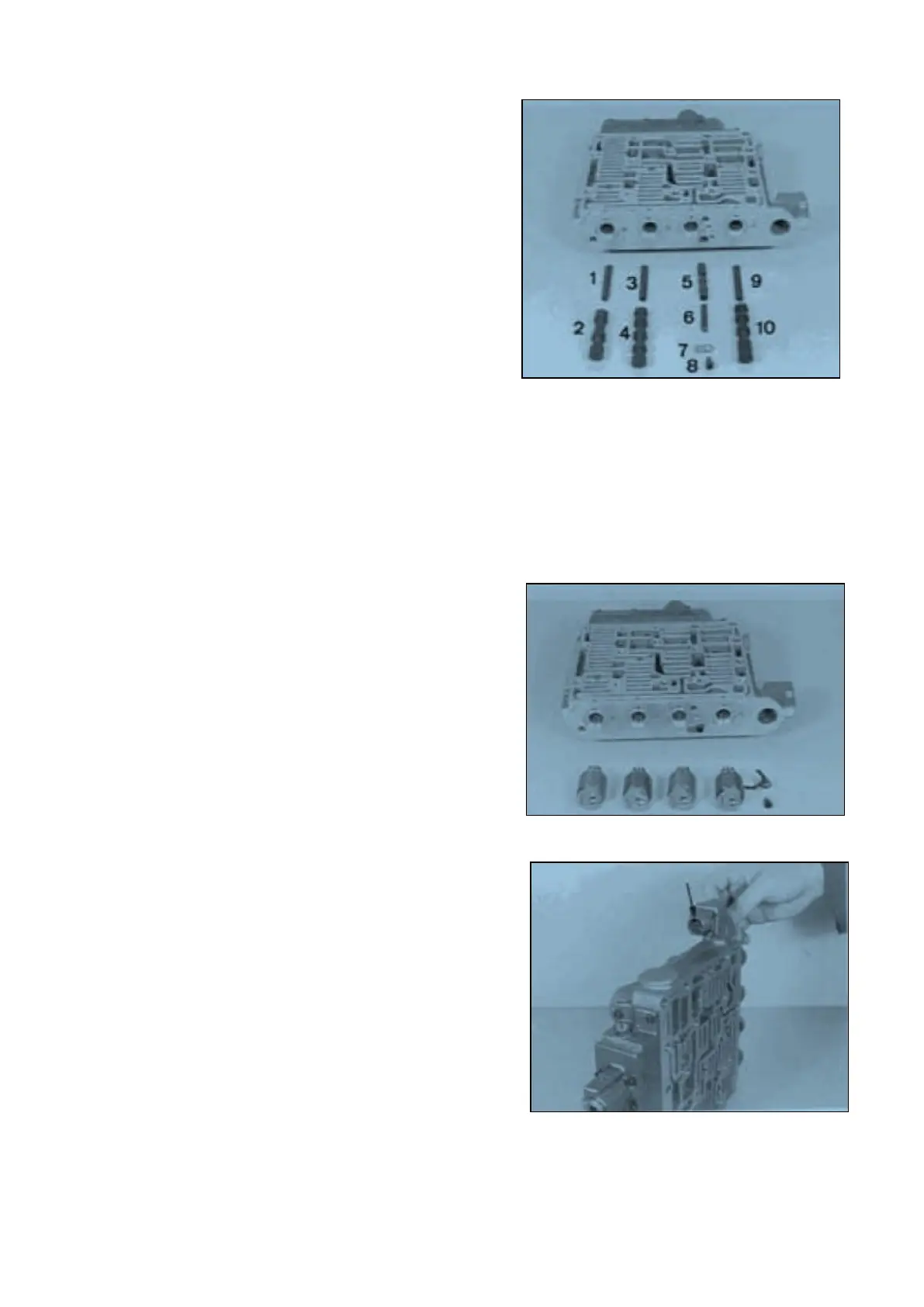

Install components
1 = Spring (L
o
= 33,40 mm)
2 = Spool
3 = Spring (L
o
= 53,40 mm)
4 = Spool
5 = Spool (reducing valve)
6 = Spring (L
o
= 37,10 mm)
7 = Retaining plate
8 = Socket head screw
9 = Spring (L
o
= 53,40 mm)
10 = Spool
NOTE:
Pay attention to the installation position of the
components, see Figure 56 !
Torque limit (M5/S.8) 5,5 Nm
Insert the solenoid valves and fix them by means of
retaining plate and socket head screws.
Torque limit (M5/8.8) 5,5 Nm
Insert the solenoid valves and fix them by means of
retaining plate and socket head screws.
Torque limit (M5/8.8) 5,5 Nm
NOTE ;
Pay attention to the radial installation position of the
solenoid valves, see Figure 59 !
Install cable harness.
NOTE ;
Mount new gaskets !
Pay attention to the location of the plug nose, see
Arrow !
Transmission and Torque Converter SPC000007
Page 31
