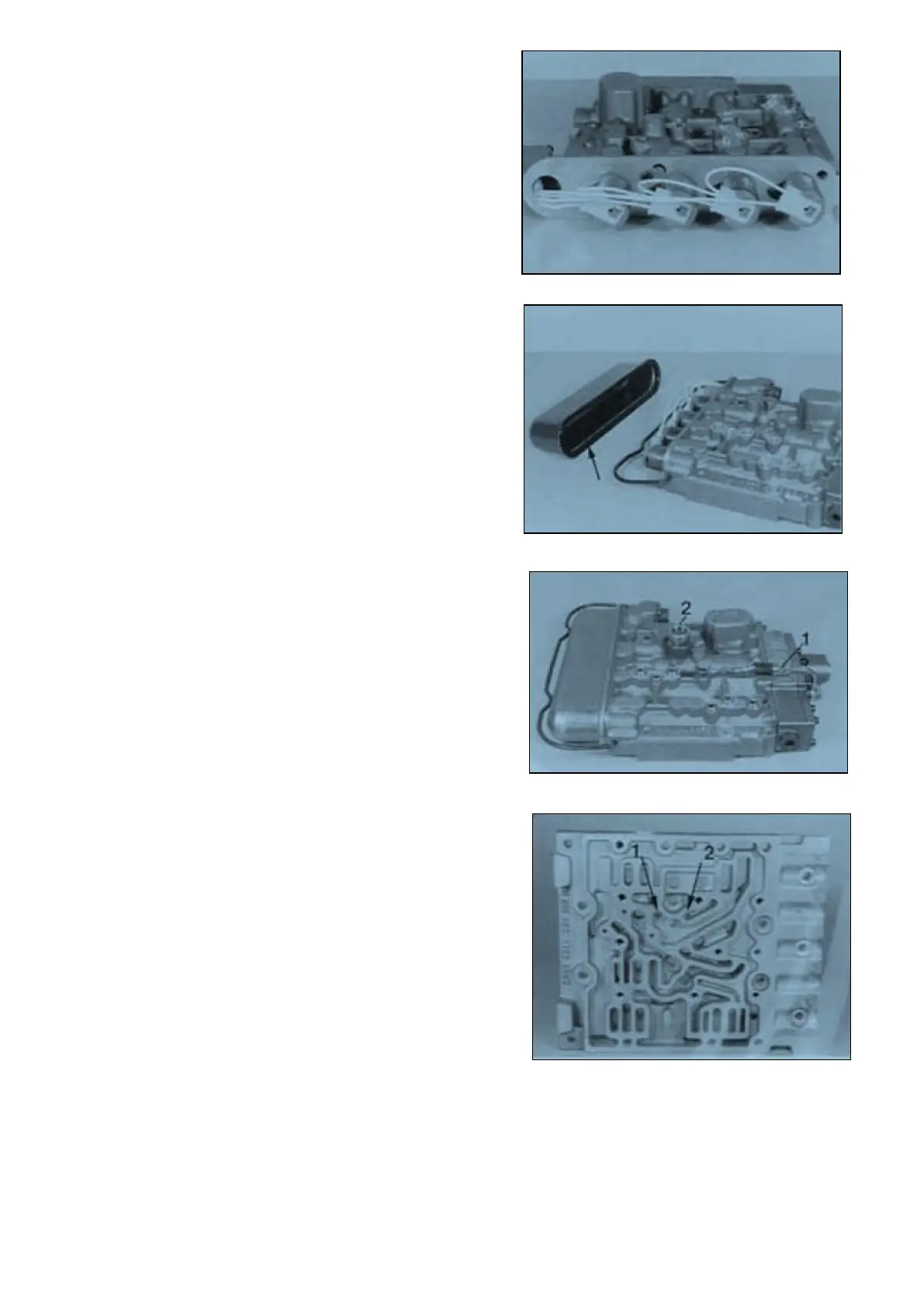

Connect solenoid valves according to the Illustration
on the right.
Mount new O-Ring (164,2 x 5,7 mm), see Arrow and
fix cover by means of clamping collar.
Intall delivery line 1, control pressure sender 2
(according to the Version) as well as screw plug.
NOTE :
Mount new sealing rings and O-Rings !
Pay attention to the Perspective Illustration of the
corresponding Spare Parts List !
Pre-assemble channel plate (Figure 62… 64) :
NOTE ;
According to the gearshift Version, different channel
plate variants are possible ! Pay attention to the
Perspective Illustration of the corresponding Spare
Parts List !
The following Reassembly Instruction is treating the
Version with diaphragm for the backfeed (without
control diaphragm) !
Wet thread of diaphragm with Loctite (Type No.
270), install diaphragm (Position, see Arrow 1) and
secure it additionally by means of center punch.
Now, clean diaphragm from Loctite residues by
meow of compressed air.
Install thread plug (Position, see Arrow 2)
accordingly.
SPC000007 Transmission and Torque Converter
Page 32
