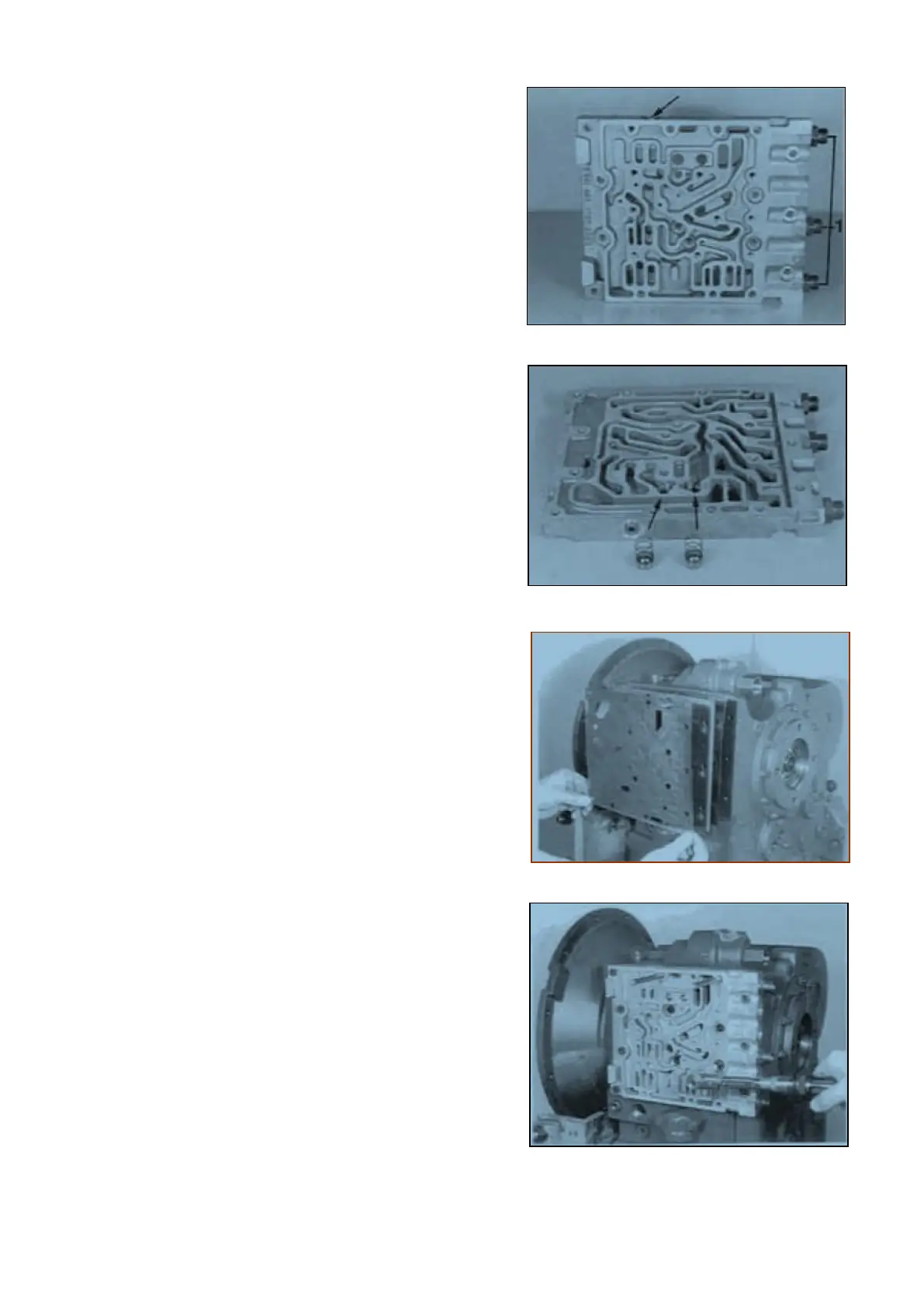

Install connecting pipe (1) and screw pljg (Arrow).
NOTE :
Mount new O-Rings !
Insert the two check valves (composed of balls and
springs) with grease in the countersinking of the
channel plate (see Arrows).
NOTE :
Use only oil soluble grease !
Attach channel plate and gearbox control (Figure
65 ... 68) :
NOTE :
Pay attention to the installation position of the
components, see corresponding Spare Parts List !
Install two adjusting screws.
Assemble housing gasket, intermediate plate and
gasket.
( S ) Adjusting screws (M8) 5870 204
011
Assemble channel plate and fasten it by means of
socket head screws.
Torque limit 20 Nm
NOTE ;
Pay attention to the installation position of the
different socket head screws, see corresponding
Spare Parts List !.
Transmission and Torque Converter SPC000007
Page 33
