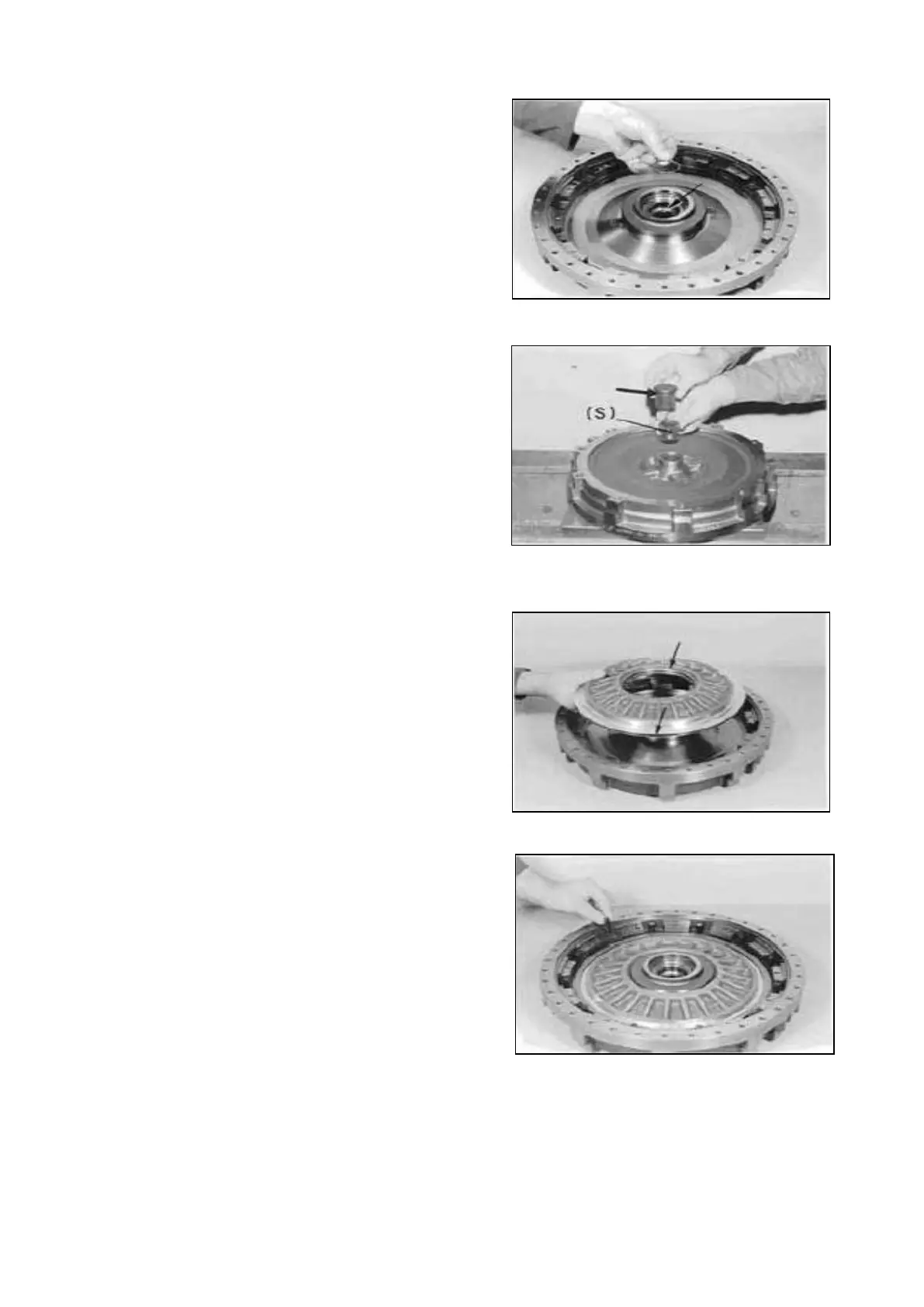

2.2 REASSEMBLY
Squeeze snap ring into the annular groove (Arrow)
of the converter impeller cover.
NOTE :
Grease and align snap ring radially prior to
reassemble the profiled bush (Figure 14) !
Install O-Ring (Arrow) and grease it.
Thread up profiled bush ( S ) and press the drive
dog in until the snap ring engages in the annular
groove.
NOTE :
The snap ring is expanded by means of the profiled
bush ( S )f thus allowing the reassembly of the drive
dog !
( S ) Profiled bush 5870 345 073
Install the two rectangular rings, see Arrows!
Oil piston bearing surfaces as well as rectangular
rings and insert piston in the converter impeller
cover until contact is obtained.
NOTE
Expand the inner rectangular ring (140 x 149 x 2
mm) slightly, to ensure a correct contact in the
piston recess !
Install all driving pins (12 pieces) into the bores.
SPC000007 Transmission and Torque Converter
Page 78
