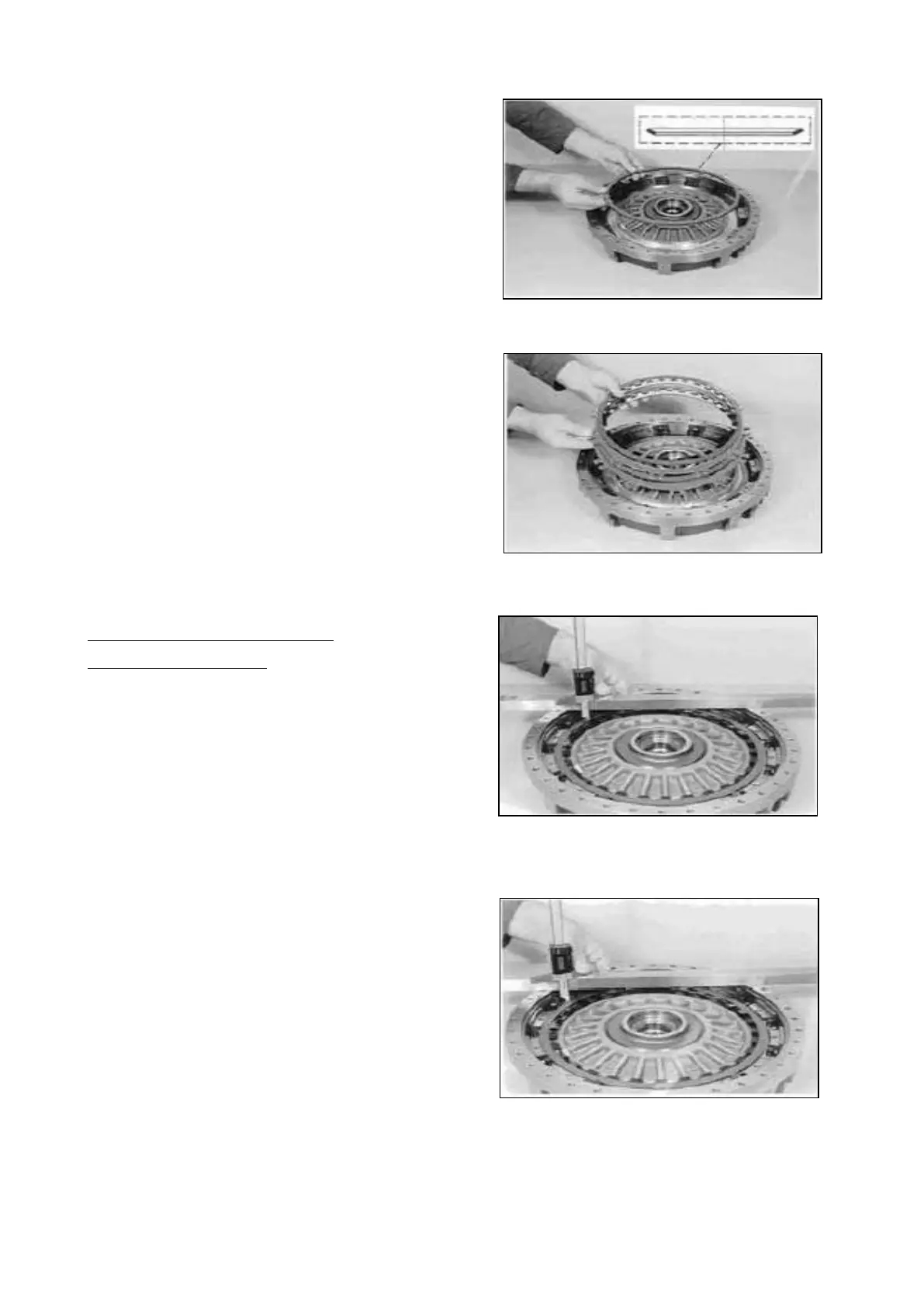

Insert cup spring , with the concave side showing
upwards (see draft , fig 17).
Install alternating outer and inner plates (2 pieces
each), starting with one outer plate.
NOTE ;
In case of Versions with three outer and one inner
plate, two outer plates have to be installed at first,
followed by one inner plate and one outer plate as
last plate !
Check Clearance WK 0,4… 0,6 mm
(Figure 19 ... Example"A")
Determine Dimension I from the straightedge to the
outer plate.
Dimension e.g. 44,0
mm
( S ) Straightedge 5870 200 022
( S ) Digital depth gauge 5870 200 072
Determine Dimension II from the straightedge to the
contact surface of the backing plate.
Dimension e.g. 43,5 mm
Transmission and Torque Converter SPC000007
Page 79
