Example "A" :
Dimension 44,0 mm
Dimension - 43,5 mm
Difference = Clearance = 0.5 mm
NOTE :
Carry out any corrections by means of
corresponding pistons (s = 9,2 mm, 9,8 mm and
10,5 mm) !

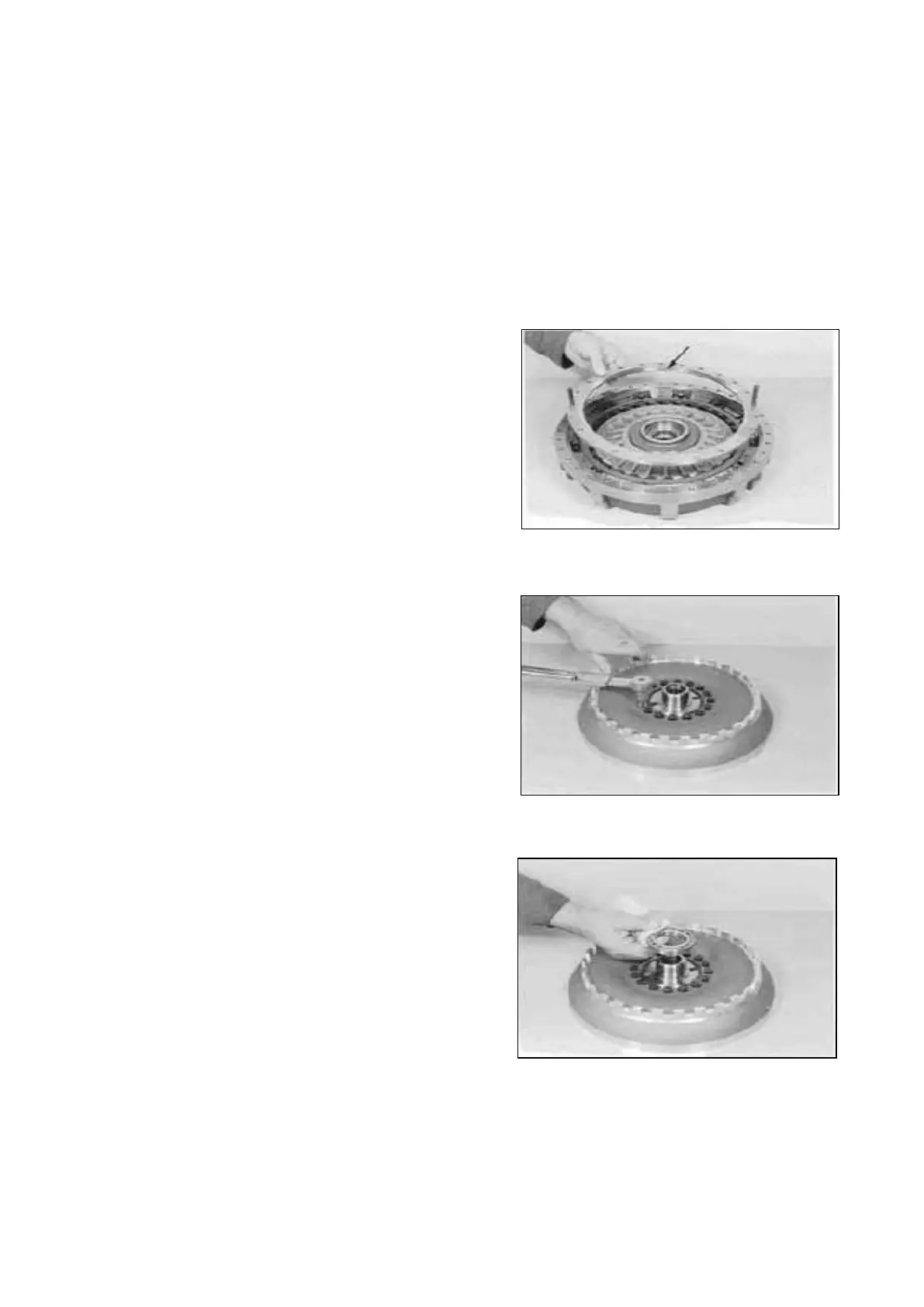

Assemble backing plate with the chamfering (Arrow)
showing upwards and fasten it by means of hex,
head screws.
Torque limit (M8x25/10.9) 34 Nm
( S ) Adjusting screw (M8) 5870 204 011
Fasten turbine wheel hub by means of hex. head
screws (mount flat washers).
Torque limit (M8xl8/8.8) 23 Nm
NOTE
Secure hex. head screws with Loctite (Type-No.
270) !
Heat the ball bearing and mount it against shoulder
until contact is obtained.
SPC000007 Transmission and Torque Converter
Page 80
