3.2 REASSEMBLY
3.2.1 Final drive - Version with Drum brake

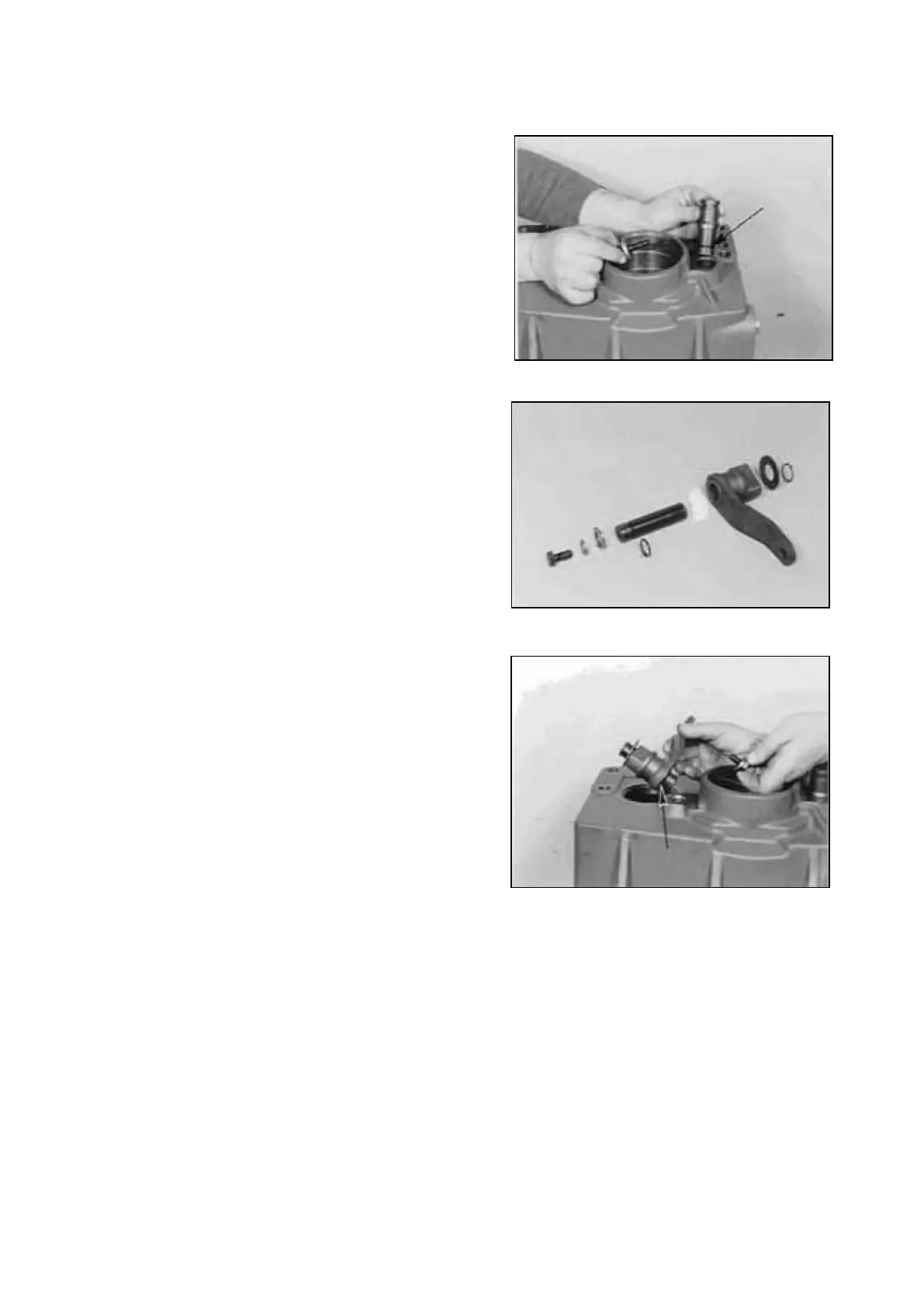

Install O-Ring (Arrow), insert pin until contact is
obtained and fasten by means of housing washer,
flat washer and hex. head screw.
NOTE :
Secure hex. head screw with Loctite (Type-No.
270) !
Illustration on the right shows the components of the
brake cam.
Pre-assemble brake cam according to Figure 91
and insert it in the housing bore until contact is
obtained.
Now, tighten hex. head screw until the brake cam
has got contact on the housing without play and
pressure.
NOTE :
Secure hex. head screw with Loctite (Type-No.
270) !
Grease O-Ring (Arrow/Figure 92) !
Transmission and Torque Converter SPC000007
Page 105
