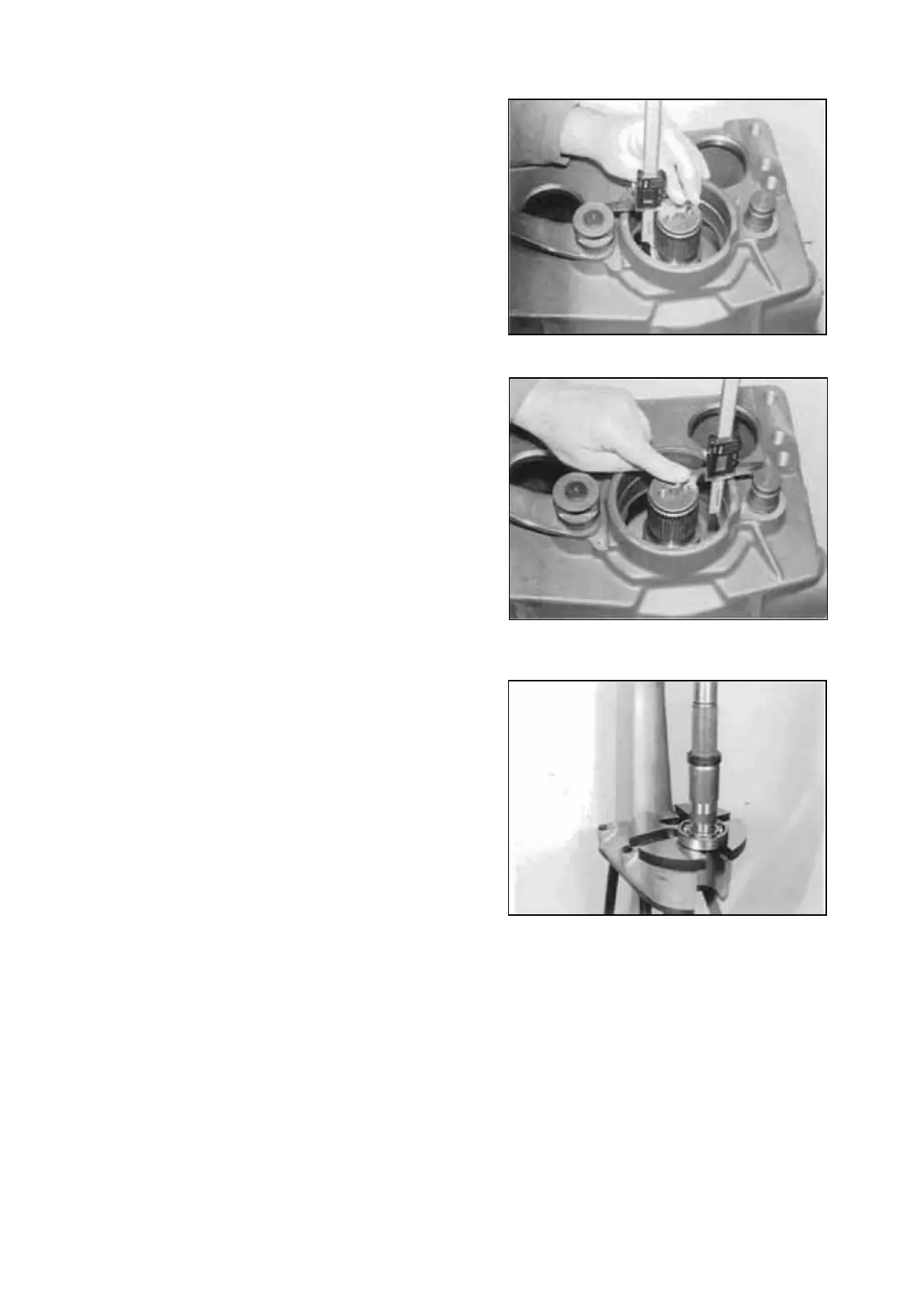

Cheek end play of the output shaft bearing = 0,3 ...
0,5 mm (Figure 104 ... Example "A"):
Measure Dimension I from the end face/output shaft
to the contact face (ball bearing).
Dimension I e.g. 79,60 mm
( S ) Digital depth gauge 5870 200 072
Determine Dimension from the end face/output
shaft to the upper plane surface of the circlip.
Dimension II e.g. 79,10 mm
Example *A* :
Dimension I 79,60 mm
Dimension II - 79,10 mm
Difference = End play = 0,50 mm
NOTE :
In case of deviations from the required end play,
correct by means of a corresponding shim (2), see
Figure 95 !
Press ball bearing against shoulder.
Transmission and Torque Converter SPC000007
Page 109
