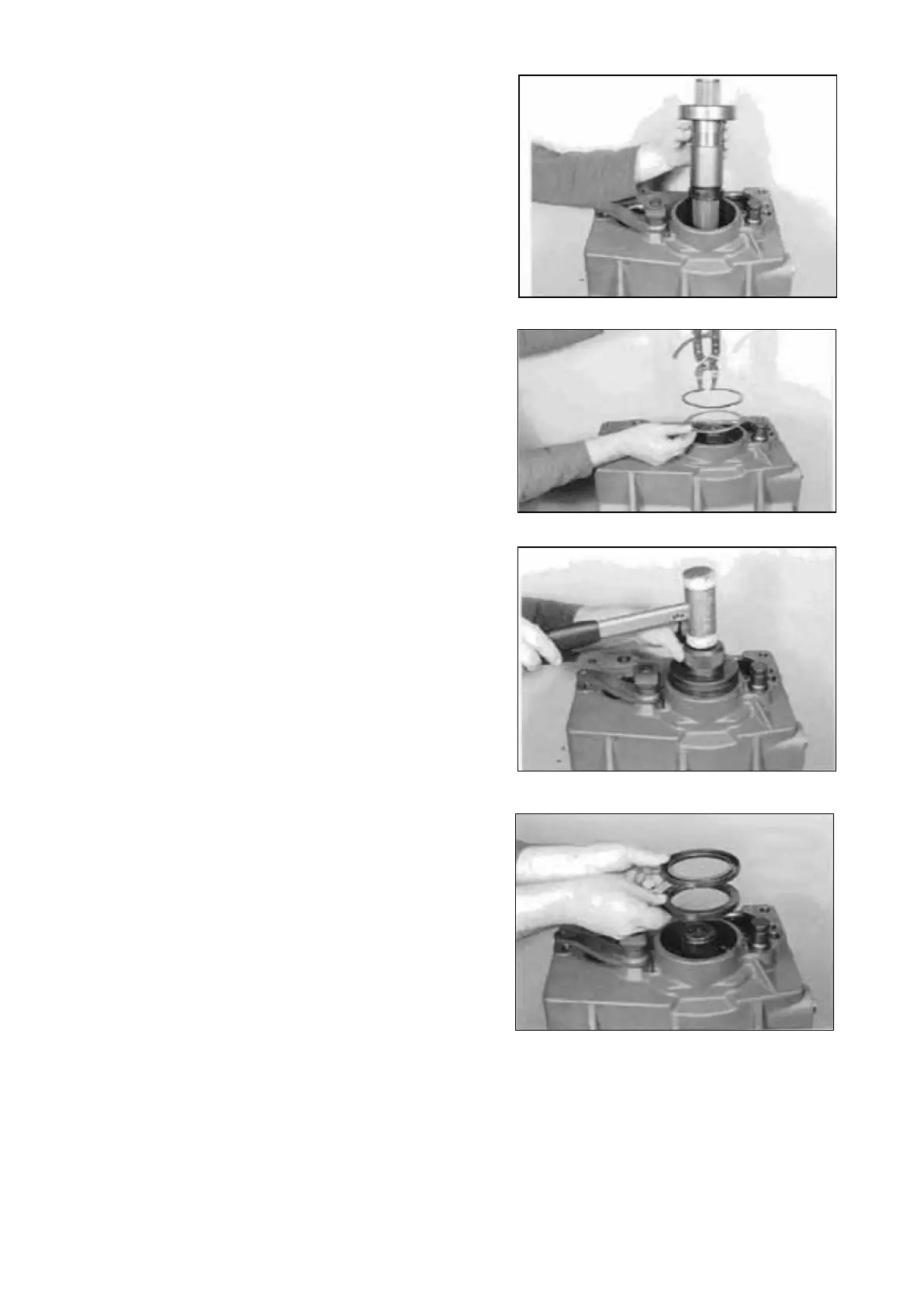

Heat housing bore and thread up output shaft until
contact is obtained.
Fix ball bearing free of play by means of shim and
circlip.
( S ) Clamping pliers 5870 900 021
Install shaft seal with the sealing lip facing the oil
chamber.
NOTE :
The exact installation position is obtained by
application of the prescribed driver !
If the outer diameter of the shaft seal is rubberized,
wet the sealing surface with spirit !
If not, use sealing compound (Curil T) !
Grease sealing lip !
( S ) Driver 5870 048 067
The Figure on the right shows a Version with two
shaft seals (Version with fording ability) Installation
position : Sealing lip of inner
shaft seal is facing the oil chamber. Sealing lip of
outer shaft seal is showing outwards.
The installation depth is given by application of the
prescribed driver 1
NOTE :
Fill space between upper and lower sealing lip with
grease !
( S ) Driver 5870 048 067
SPC000007 Transmission and Torque Converter
Page 110
