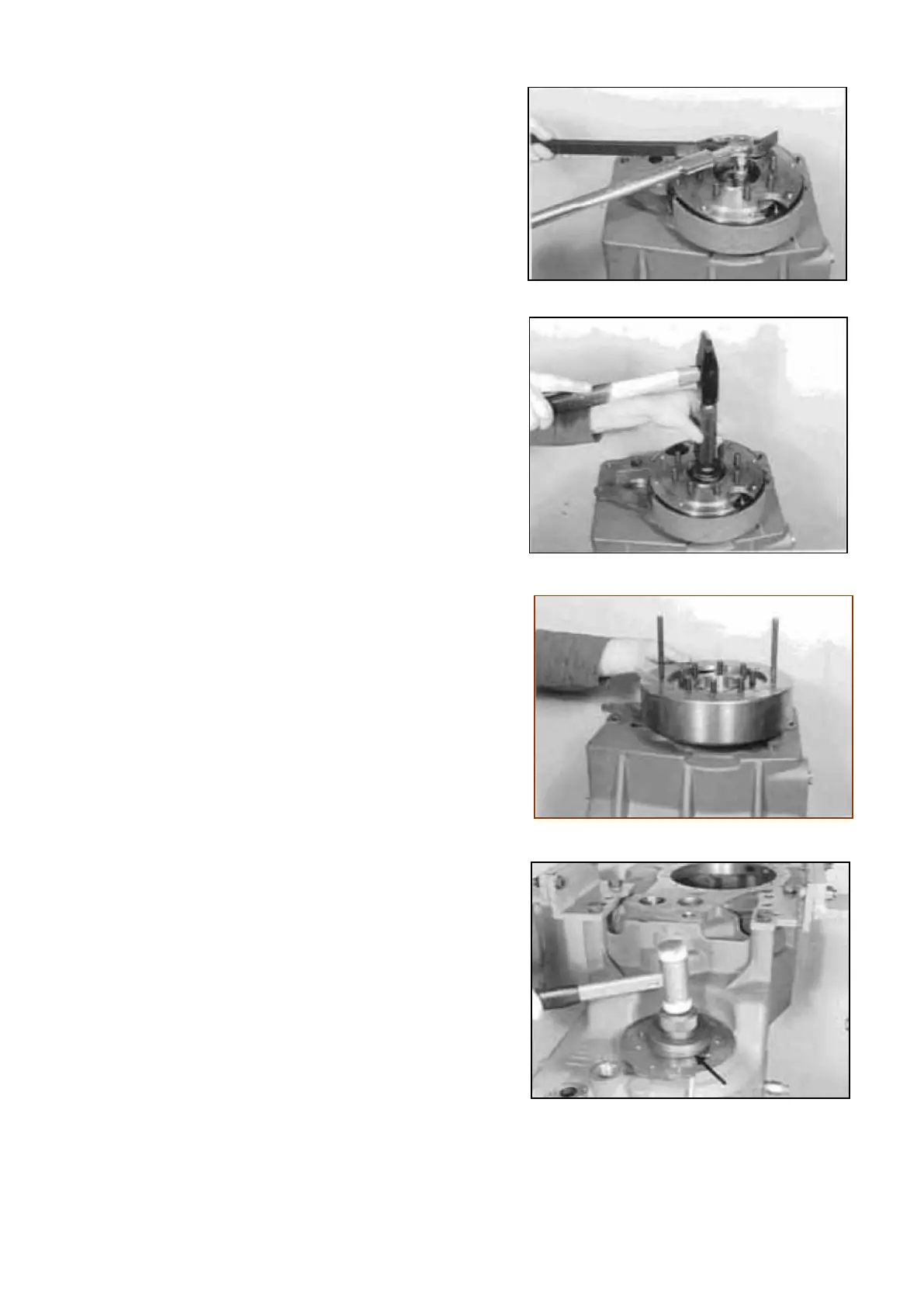

Fasten output flange by means of disk and hex.
head screws.
NOTE :
Wet the contact surface of disk and screw heads
with sealing compound !
Torque limit (Ml0/8.8) 46 Nm
Fix hex. head screws means of lock plate.
( S ) Driver 5870 057 009
( S ) Handle 5870 260 002
Assemble brake drum and fasten it by means of hex.
head screws (mount flat washers).
Torque limit (Ml0/10.9) 68 Nm
( S ) Adjusting screws (MI0) 5870 204 007
Tilt gear case 180.
Install shaft seal (Arrow) with the sealing lip facing
the oil chamber.
NOTE :
The exact installation position is obtained by
application of the prescribed driver !
If the outer diameter of the shaft seal is rubberized,
wet the sealing surface with spirit !
If not, use sealing compound (Curil T) !
Grease sealing lip !
( S ) Driver 5870 048 067
SPC000007 Transmission and Torque Converter
Page 112
