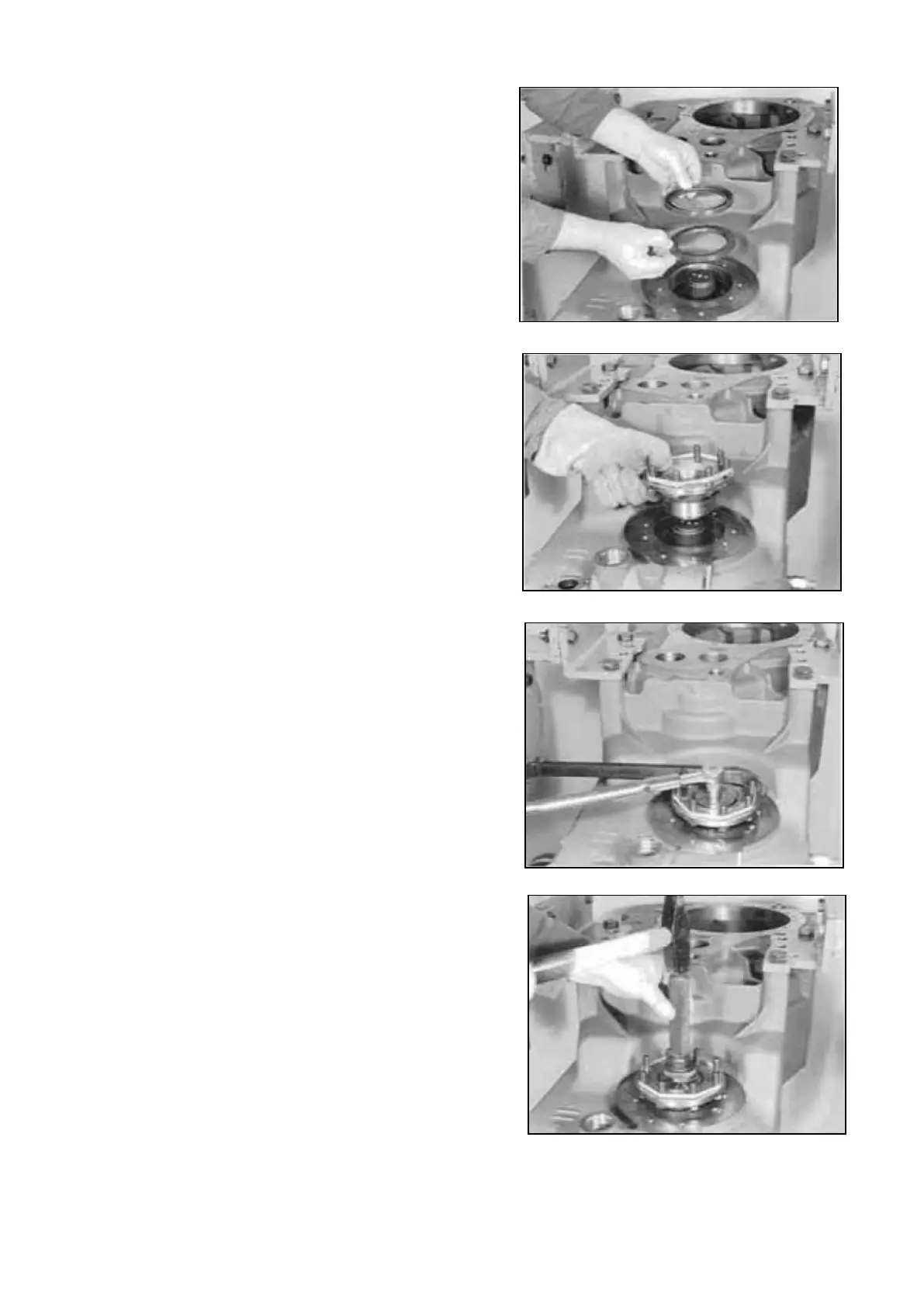

Figure 119 shows a Version with 2 shaft seals
(Version with fording ability).
Installation position : Sealing lip of inner shaft seal is
facing the oil chamber !
Sealing lip of outer shaft seal is showing outwards.
The installation depth is obtained by application of
the prescribed driver !
NOTE :
Fill space of upper and lower sealing lip with grease !
( S ) Driver 5870 048 067
Insert hex. head screws in the bores, heat the
output flange and assemble it until contact is
obtained.
Fasten output flange by means of disk and hex.
head screws.
NOTE :
Wet contact areas of disk and screw heads with
sealing compound !
Torque limit (M10/8.8) 46 Nm
Fix hex. head screws means of lock plate.
( S ) Driver 5870 057 009
( S ) Handle 5870 260 002
Transmission and Torque Converter SPC000007
Page 113
