3.2.3.2 Install plate pack
Install plate pack and replace backing plate.
NOTE :
Plate arrangement, see
Plate installation, Page 118 ... 122!
Fix plate pack by means of snap ring.
Check plate clearance (Figure 141 to Example ―B‖)
NOTE :
The plate clearance of the different clutches can be
taken from the Table, Page 119 ... 122 !
In case of Plate installation-No.40, e.g. = 2,0 ... 2,4
mm !
Measure Dimension  from the end face of the
plate carrier to the backing plate.
Dimension  e.g. 5,3 mm
Place backing plate against snap ring until contact is
obtained (upwards), and determine Dimension .
Dimension  e.g. 3,2 mm
Transmission and Torque Converter SPC000007
Page 123

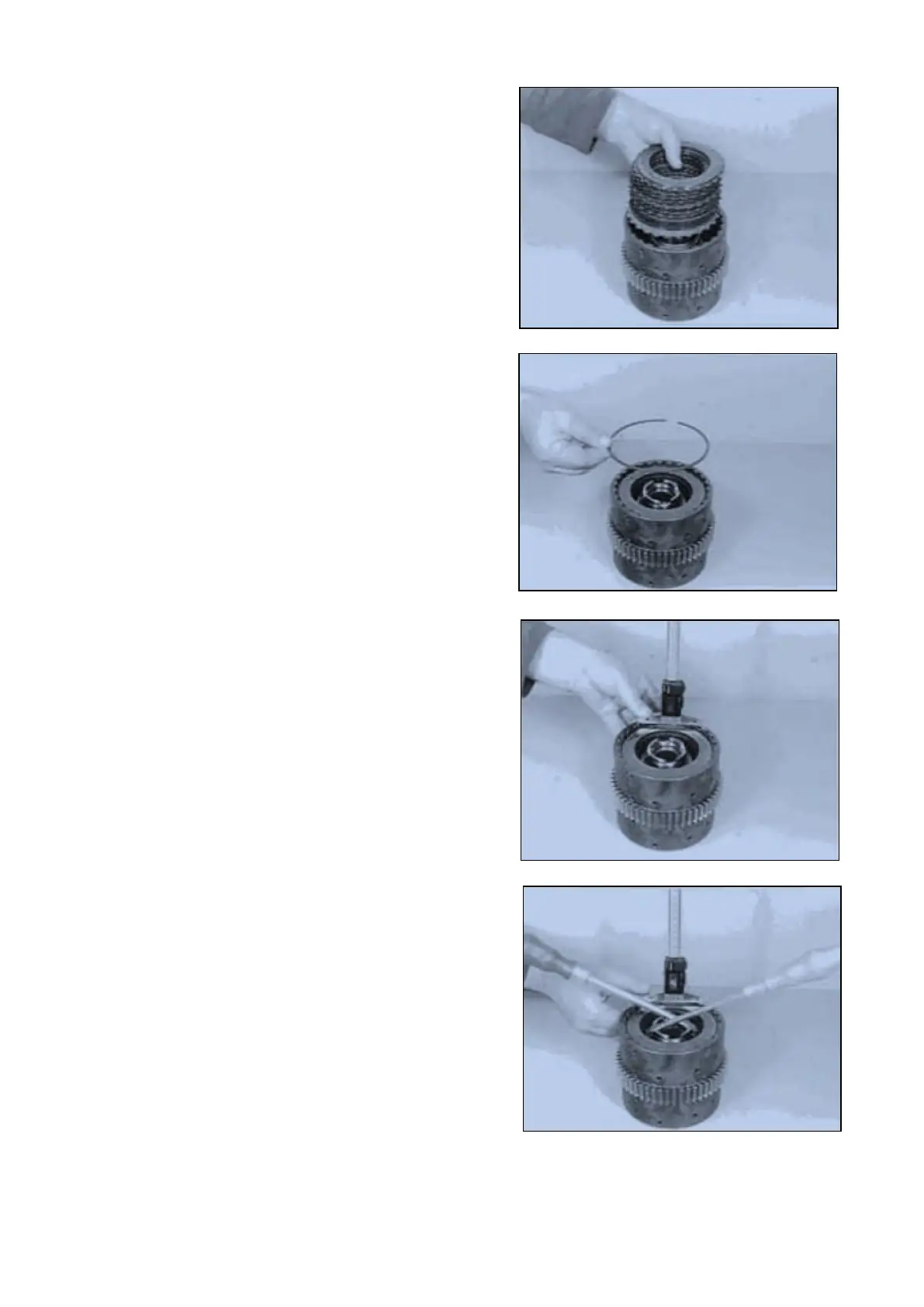

Figure 139
