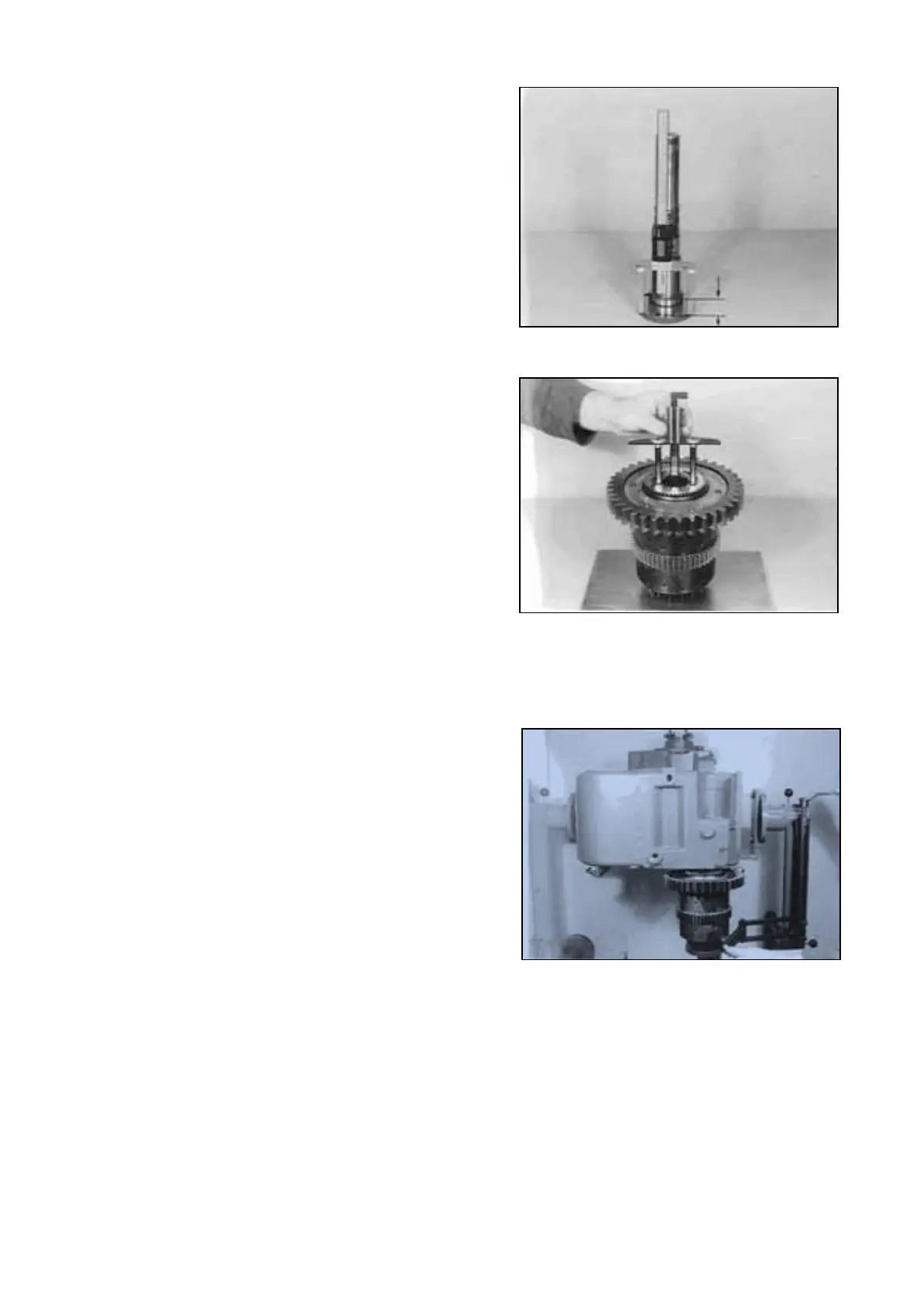

Measure Dimension from the butting
face/bearing rollers to the flange-mounted surface.
Dimension e.g. 21,00 mm
Example "C", for the determination of the housing
dimension
Dimension e.g. 251,15 mm
Dimension e.g. - 21,00 mm
Difference = Housing
dimension e.g. 230,15 mm
Place clutch on a suitable surface plate and
determine Dimension 111 from the end
face/cylindrical rollers to the surface plate.
Dimension e.g. 227,20 mm
Example "D", for the determination of the installation
dimension
Dimension e.g. 227,20 mm
End play e.g. + 0,20 mm
gives installation dimension
- Clutch 227,40 mm
Example "E", for the determination of the shim
Housing dimension e.g. 230,15 mm
Installation dimension - Clutch - 227,40 mm
Difference = Shim e.g. 2,75 mm
Insert clutch K4/KR by means of lifting device into
the housing and position it.
( S ) Lifting device 5870 350 041
