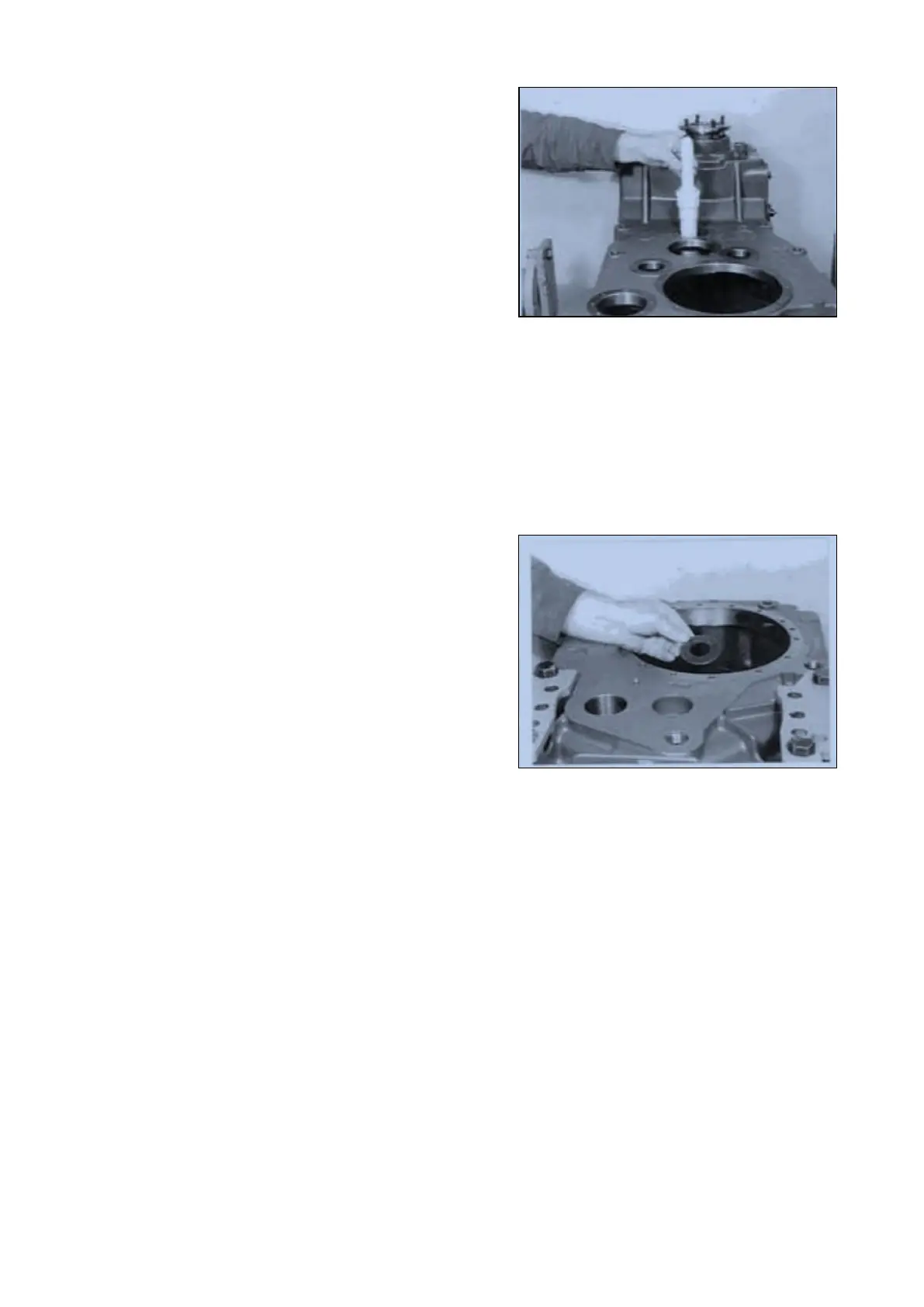

Align clutch by means of drift and fix it provisionally.
( S ) Drift 5870 345 025
For the moment, tilt gear case 90° and push the
compl. clutch opposite to the drive side against
shoulder until contact is obtained.
Now, tilt gear case forward in the horizontal position.
Pull drift downwards until the shim (e.g. s = 2,75
mm, see Example "E") can be installed.
Now, align the complete clutch as well as the shim
by means of drift again and fix it.
NOTE :
In case of spur gear bearing K4, Version "A",
without forked washer and thrust washer (Figure
153) !
In case of spur gear bearing K4, Version MB",
another forked washer as well as one thrust washer
have to be installed in addition to the shim.
ATTENTION :
Pay attention to the radial installation position of the
forked washer !
Now, tilt gear case back in the original position
(180°).
Transmission and Torque Converter SPC000007
Page 127
